Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASLONG
-
Model Number:
-
JGB37-520B
-
Torque:
-
0.1-30kg.cm
-
Gear type:
-
pure metal
-
Keywords:
-
encoder motor
-
motor diameter:
-
33mm
-
gearbox size:
-
19-29mm
-
weight:
-
175-200g
-
Shaft diameter:
-
6mm D-cut
-
shaft length:
-
15.5mm
-
stall current:
-
1A
-
motor length:
-
22.7mm
-
Certification:
-
CE/CCC/ROHS
Quick Details
-
Speed(RPM):
-
12-1600rpm
-
Continuous Current(A):
-
300-400ma
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASLONG
-
Model Number:
-
JGB37-520B
-
Torque:
-
0.1-30kg.cm
-
Gear type:
-
pure metal
-
Keywords:
-
encoder motor
-
motor diameter:
-
33mm
-
gearbox size:
-
19-29mm
-
weight:
-
175-200g
-
Shaft diameter:
-
6mm D-cut
-
shaft length:
-
15.5mm
-
stall current:
-
1A
-
motor length:
-
22.7mm
-
Certification:
-
CE/CCC/ROHS
37mm series dc gear motor
Below are the different type of 37mm diamter dc geared motor in our company, you can click on the picture to buy if necessary.
Products Description

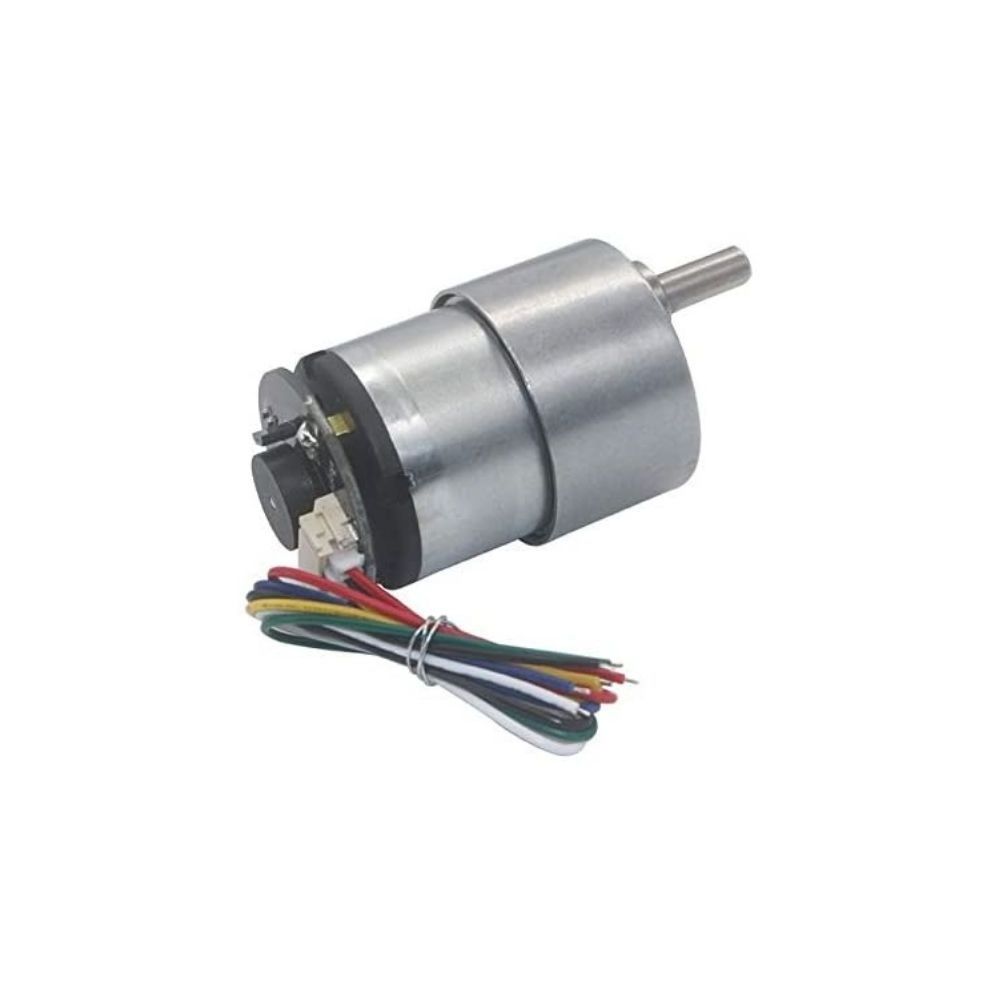

12V 24V DC Gear Motor With Hall Encoder For DIY Smart Equipment
Specification:
Specification:
* Voltage: DC6V
No-Load Speed: 1000rpm, 600rpm, 300rpm, 200rpm, 100rpm, 70rpm, 45rpm, 35rpm,20rpm,12rpm,7rpm
No-Load Speed: 1000rpm, 600rpm, 300rpm, 200rpm, 100rpm, 70rpm, 45rpm, 35rpm,20rpm,12rpm,7rpm
* Voltage: DC12V
No-Load Speed: 1590rpm, 1000rpm, 530rpm, 333rpm, 178rpm, 110rpm, 76rpm, 60rpm,37rpm,20rpm,12rpm
* Error: ±5%
* Output Shaft Diameter: 6mm D-type
* Output Shaft Length: 14mm
* Gearbox Size Detal, please see the table
No-Load Speed: 1590rpm, 1000rpm, 530rpm, 333rpm, 178rpm, 110rpm, 76rpm, 60rpm,37rpm,20rpm,12rpm
* Error: ±5%
* Output Shaft Diameter: 6mm D-type
* Output Shaft Length: 14mm
* Gearbox Size Detal, please see the table
Wirings:
* Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)
* White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))
* Yellow Wire - signal feedback (motor one turn has 11 signals)
* Green Wire - signal feedback (motor one turn has 11 signals)
* Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
* Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
* Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)
* White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))
* Yellow Wire - signal feedback (motor one turn has 11 signals)
* Green Wire - signal feedback (motor one turn has 11 signals)
* Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
* Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
Appearance & Dimensions
Technical Data
