Quick Details
-
Dimension(L*W*H):
-
1800mmx1300mmx2200mm
-
Weight (KG):
-
1200
-
Power (kW):
-
2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field maintenance and repair service
-
Weight:
-
1200Kg
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TENDTOOL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1800mmx1300mmx2200mm
-
Weight (KG):
-
1200
-
Power (kW):
-
2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field maintenance and repair service
-
Weight:
-
1200Kg
-
Certification:
-
ISO

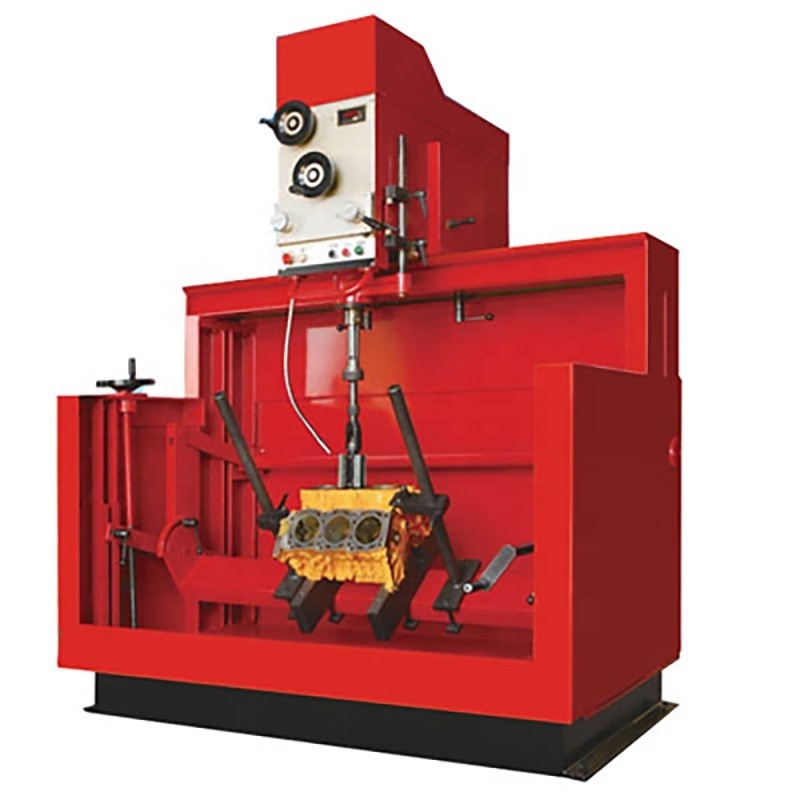

Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks. Honing spindle with steplessly variable ratation speed visualized on the control panel.
|
Maximum honing diameter |
Φ170 mm |
|
Minimum honing diameter with automatic expansion honer |
Φ35 mm |
|
Honer max. stoke |
300 mm |
|
Cylinder bearing plate vertical stroke |
200 mm |
|
Workpiece max. length |
1200 mm |
|
Cylinder bearing plates width |
400 mm |
|
Workpiece max. length |
600 mm |
|
Spindle head longitudinal stroke |
1100 mm |
|
Spindle head transversal stroke |
80 mm |
|
Spindle head motor |
2 HP |
|
Hydraulic plant motor |
1.5 HP |
|
Electro pump power |
0.30 HP |
|
Spindle rotating speed |
100-300 rpm |
|
Spindle alternative motion speed |
0-18 m/min |
|
Overall dimensions(L×W×H) |
1800×1300×2200 mm |
|
Packing dimensions(L×W×H) |
2000×1500×2400 mm |
|
N.W./G.W. |
1200 /1400 kg |
