We can supply Turn-key project and have professional engineers for after-sales service.At present, the equipment is exported to domestic and overseas markets more than 30 regions and countries. Welcome more friends come to negotiate and consult.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HZM
-
Year:
-
2022
-
Voltage:
-
380V, 50-60HZ
-
Dimension(L*W*H):
-
4800*1900*2300MM
-
Hollow part volume:
-
100-2500ML
-
Clamping Force (kN):
-
56000KG
-
Power (kW):
-
48-120KW
-
Weight (KG):
-
6800 KG
-
Product name:
-
Automatic Blowing Molding Machine
-
Suitable bottle:
-
PET bottle
-
Key words:
-
Blowing Mold Machine
-
Type:
-
Stretch Pet Blow Moulding
-
Bottle material:
-
PET
-
Machine type:
-
High Speed Blow Molding Machine
-
Capacity:
-
2000-24000BPH
-
Cavity:
-
2-12cavities
-
Advantages:
-
Saving Energy
-
Model Number:
-
Mg-Al 7075 alloy
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
90 mm
-
Max.Bottle Height(mm):
-
320 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HZM
-
Year:
-
2022
-
Voltage:
-
380V, 50-60HZ
-
Dimension(L*W*H):
-
4800*1900*2300MM
-
Hollow part volume:
-
100-2500ML
-
Clamping Force (kN):
-
56000KG
-
Power (kW):
-
48-120KW
-
Weight (KG):
-
6800 KG
-
Product name:
-
Automatic Blowing Molding Machine
-
Suitable bottle:
-
PET bottle
-
Key words:
-
Blowing Mold Machine
-
Type:
-
Stretch Pet Blow Moulding
-
Bottle material:
-
PET
-
Machine type:
-
High Speed Blow Molding Machine
-
Capacity:
-
2000-24000BPH
-
Cavity:
-
2-12cavities
-
Advantages:
-
Saving Energy
-
Model Number:
-
Mg-Al 7075 alloy
COMPANY PROFILE
We are a comprehensive professional supplier of liquid beverage packaging machinery, which integrates development, manufacture and sales. It has successively introduced several modern CNC processing equipment from the United States, Japan and other countries and regions. At present, it has about 50 million fixed assets.
PRODUCT OVERVIEW

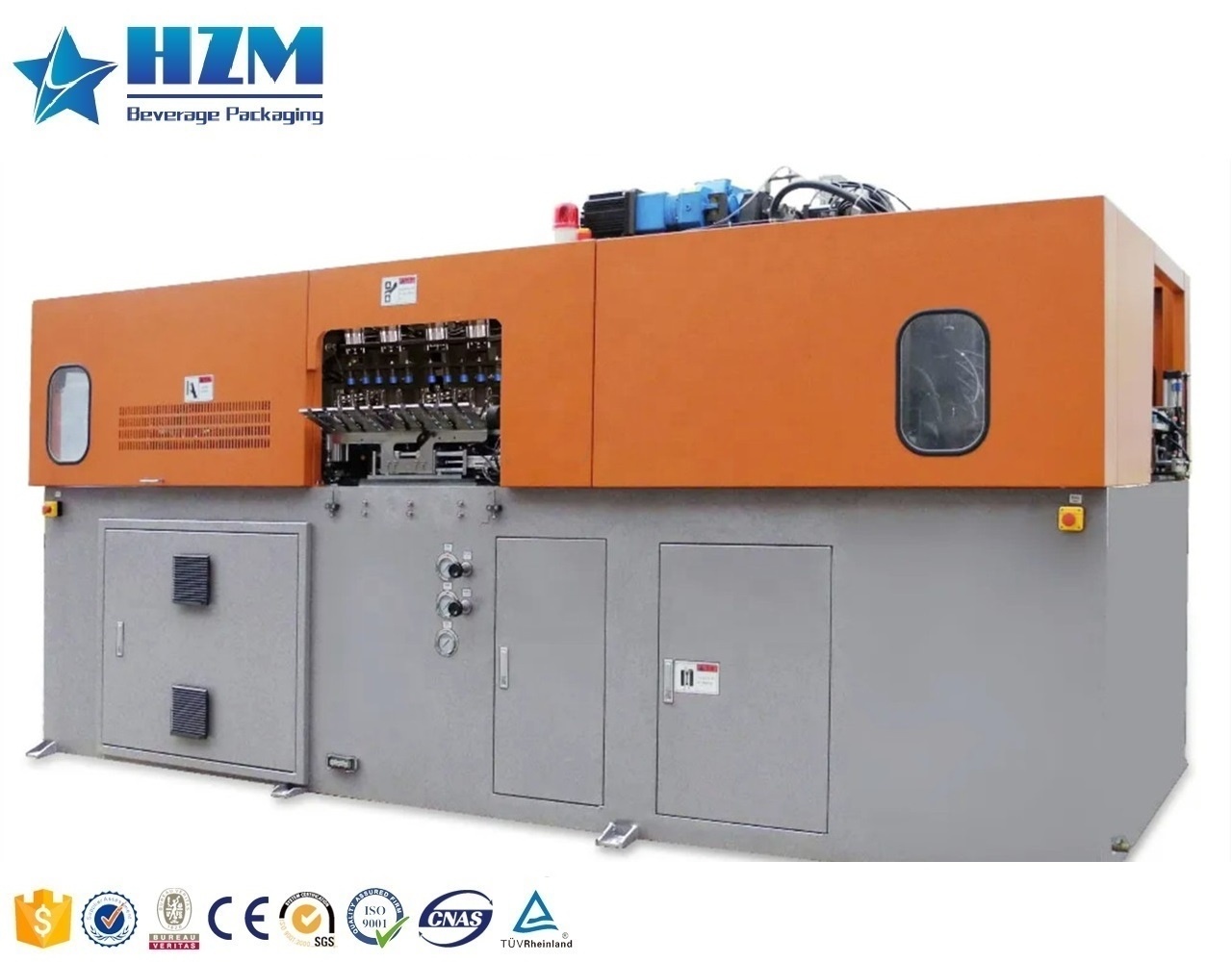

Linear Blow Molding Machine
T
he continuous rotating preform feeding system is tightly combined with the machine platform, which effectively reduces the area occupied by the machine platform. The preform has no overturn and with simple structure.
Continuous heating system, the heating pitch between each preform is 38 mm, which can effectively use the lamp tube heating space,highly improved the heating efficiency.Servo motor is used to ensure high-speed operation and precise positioning.
This machine is suitable for drinking water, carbonated beverage, fruit juice, tea and milk product.,etc in PET bottles with production capacity ranges from 2,000BPH to 12,000BPH based on 500ml water bottle.
Continuous heating system, the heating pitch between each preform is 38 mm, which can effectively use the lamp tube heating space,highly improved the heating efficiency.Servo motor is used to ensure high-speed operation and precise positioning.
This machine is suitable for drinking water, carbonated beverage, fruit juice, tea and milk product.,etc in PET bottles with production capacity ranges from 2,000BPH to 12,000BPH based on 500ml water bottle.
MAIN TECHNICAL PARAMETERS
|
Automatic PET Stretch Bottle Blowing Machine
|
|
|
|
|
|
|
||||||
|
Models
|
|
HZM-ECO-2
|
HZM-ECO4S
|
HZM-ECO4L
|
HZM-ECO6S
|
HZM-ECO6L
|
||||||
|
Theoretical Capacity(BPH)
|
|
1800-2400
|
4600-5000
|
3600-4500
|
6000-7000
|
5000-6000
|
||||||
|
Mold Cavities
|
|
2
|
4
|
4
|
6
|
6
|
||||||
|
Bottles
|
Neck Size
|
18-38mm
|
18-38mm
|
18-38mm
|
18-38mm
|
18-38mm
|
||||||
|
|
Max.Volume
|
2000ml
|
750ml
|
2000ml
|
750ml
|
2000ml
|
||||||
|
|
Max.Diameter
|
105mm
|
69mm
|
105mm
|
69mm
|
105mm
|
||||||
|
|
Max.Height
|
330mm
|
240mm
|
330mm
|
240mm
|
330mm
|
||||||
|
Power
|
Heater Qty
|
16pcs
|
21pcs
|
32pcs
|
28pcs
|
48pcs
|
||||||
|
|
Heating Area
|
2
|
3
|
4
|
4
|
6
|
||||||
|
|
Heating Power
|
35KW
|
46KW
|
70KW
|
62KW
|
106KW
|
||||||
|
|
Rated General Power
|
37KW
|
50KW
|
75KW
|
65KW
|
110KW
|
||||||
|
High Pressure Air Consumption(m³/min)
|
|
2
|
3
|
4
|
5
|
5
|
||||||
|
Main Machine Size(mm)
|
|
3000*1800*2400
|
3300*2000*2200
|
4200*2100*2400
|
4200*2050*2400
|
5800*2150*2400
|
||||||
|
Main Machine Weight(kg)
|
|
2500
|
3600
|
5000
|
5500
|
7500
|
||||||
PRODUCT FEATURES
ADVANTAGE 1
◇ The embryo inserting system has multiple safety protection devices to ensure the embryo inserting.
◇ Use continuous embryo implantation system.
◇ The device for conveying the preform to the heating extension blowing molding adopts a linear structure.
ADVANTAGE 2
◇ All-electric linkage structure ensures high-speed operation and precise positioning of the machine
◇ Modular design, easy maintenance
◇ Save cost and increase competitiveness.
ADVANTAGE 3
◇ Improve energy efficiency
◇ Human-machine interface control, simple operation
◇ Equipped with gas recovery device
◇ Low energy consumption, low maintenance, low wear, low pollution.
WHY CHOOSE HZM
Huazhen Machinery (HZM) Co., Ltd. is located in the Machinery Industry Park of Jinfeng Town, Suzhou City, Jiangsu Province. It has an international standard plant with an area of about 10,000 square meters.
The product quality not only meets the requirements of the national machinery industry, also achieves CE/ISO 9001:2015 and other international quality management system certification level. The company also has a set of strict and perfect quality inspection standards, which is higher than the national industry requirements.
OTHER RECOMMEND PRODUCTS
SHRINK SLEEVE LABELING MACHINE
PE FILM WRAPPER AND SHRINKER
CARTON PACKING MACHINE
TRIBLOC FILLING MACHINE
FAQ
Q1:Are you a trading company or a manufacturer?
A1:We are an old filling machine company, specializeing in filling machine, berverage line,water treatment, shrinking label machine and Bottle blowing machine. Now we are one of leading filling machine manufacturer in china.
Q2:What's your guarantee or the warranty of the quality if we buy machines?
A2:We offer you high quality drinking water filling machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Also we can supply one more year warranty if necessary.Mean while, our engineers go more than 50
countries for debugging, with rich experience.
Q3:When can I get machine after I paid?
A3:We will deliver filling machines on time as the date we agreed both side.
Q4:How can I install my drinking water filling machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the drinking water filling machines. Also supporting online installation.
Q5:What's the delivery time?
A5:50 days after the T/T deposit or L/C for unit machine.60-90days for project line.
Q6:What's min order quantity?
A6:1 unit, if you have more than that, you will get a more favorable price.
A1:We are an old filling machine company, specializeing in filling machine, berverage line,water treatment, shrinking label machine and Bottle blowing machine. Now we are one of leading filling machine manufacturer in china.
Q2:What's your guarantee or the warranty of the quality if we buy machines?
A2:We offer you high quality drinking water filling machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Also we can supply one more year warranty if necessary.Mean while, our engineers go more than 50
countries for debugging, with rich experience.
Q3:When can I get machine after I paid?
A3:We will deliver filling machines on time as the date we agreed both side.
Q4:How can I install my drinking water filling machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the drinking water filling machines. Also supporting online installation.
Q5:What's the delivery time?
A5:50 days after the T/T deposit or L/C for unit machine.60-90days for project line.
Q6:What's min order quantity?
A6:1 unit, if you have more than that, you will get a more favorable price.
