Pencil making machine/pencil production line/paper pencil making machine

Product Description

Introduction of paper pencil production line

This set machine is used to make waste newspapers into pencils,The process includes: cutting waste papers, rolling cutted paper into sticks,dry pencil sticks, cutting heads of dried pencil sticks, polishing pencil sticks, cover shrink films, install erasers.

1. Based on the purpose of protecting forest resources and ecological environment, saving the timber as well.

2. This recycles paper pencil machine developed by our company can utilize the recycled and useless newspapers, waste book papers etc to make pencils as the substitution for timber.

Features of paper pencil production line

a. Environment Protection---recycle waster newspapers, and saving woods.

b. Reduce much cost to make pencils.

c. Much easier to sharpen than wood pencils.

d. With simple manufacturing processes.

Main technical paraeters of paper pencil production line

Paper cutting machine

Pencil Stick Rolling Machine

This machine used to roll the pieces of newspaper into pencil sticks.

When rolling, you need glue.

Productivity: 80 pcs/min

Motor: 1.5kw

Weight:140kg

Dimension: 1900*450*1300mm Pencil Drying machine

This machine is to dry the pencil sticks.

Power: 2.2kw

Weight: 70kg

Dimension: 760*550*680mm

Pencil Sticks Cutting Machine

This machine used to cut the heads of pencils

Productivity: 5000 pcs/h

Motor:1.8kw

Weight: 70kg

Dimension: 620*840*450mm

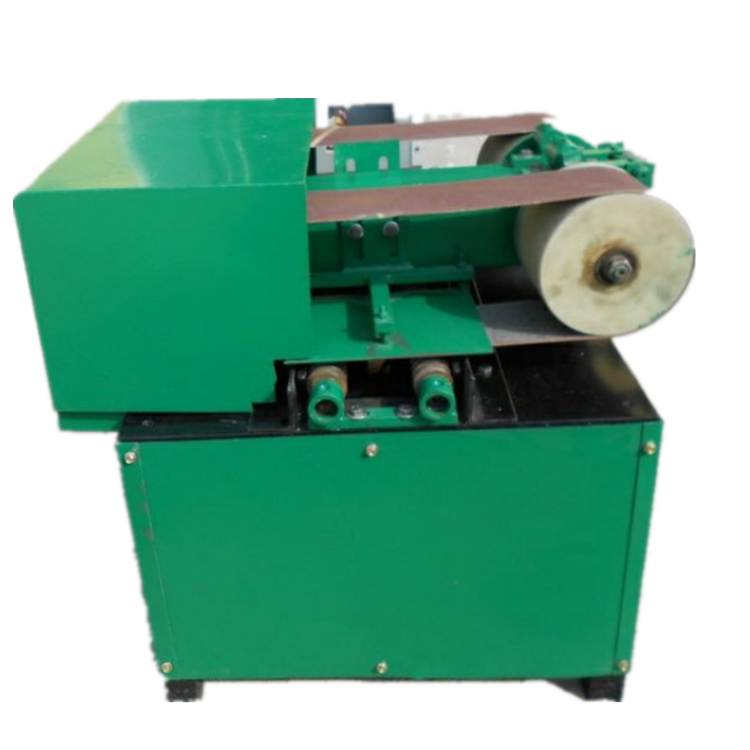

Pencil Stick Polishing Machine

This machine polish the dry pencil sticks.

Productivity: 5000 pcs/h

Motor: 3kw

Weight: 230kg

Dimension: 1000*800*910mm

Shrink Packing Machine

This machine used to pack the pencils in colorful plastic papers.

Capacity: 100 pcs/min

Power: 1.8 kw

Weight: 60 kg

Dimension: 1100*450*750mm
