- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gaoshang
-
Model Number:
-
GS-QD4
-
Usage:
-
Heat Press
-
Dimensions(L*W*H):
-
183*90*144 cm
-
Weight:
-
487 KG
-
Product name:
-

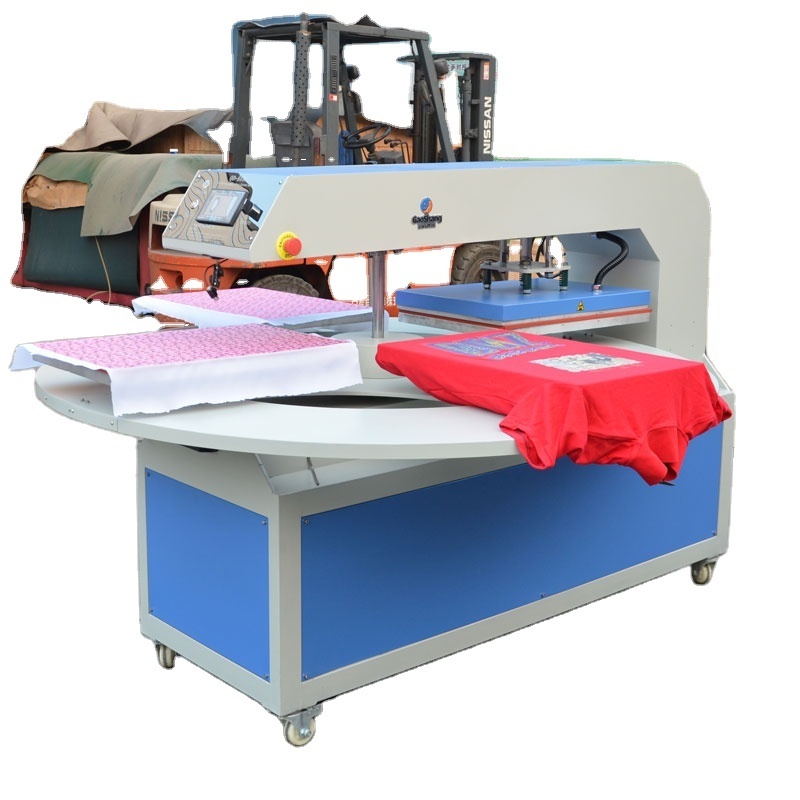

Automatic 4 platens heat transfer machine
-
Application:
-
Flat Product Printable
-
Function:
-
Multiple-surface Sublimation
-
Keywords:
-
Tshirt Printing Machine
-
Machine Type:
-
Customized design 6 position rotary work heat transfer
-
After Warranty Service:
-
Video Support
-
MOQ:
-
1 Unit
-
Time range:
-
0-999s
-
Temperature Range:
-
0-399 Degree
-
Machine surface:
-
blue+grey color and customized color
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gaoshang
-
Model Number:
-
GS-QD4
-
Usage:
-
Heat Press
-
Dimensions(L*W*H):
-
183*90*144 cm
-
Weight:
-
487 KG
-
Product name:
-
Automatic 4 platens heat transfer machine
-
Application:
-
Flat Product Printable
-
Function:
-
Multiple-surface Sublimation
-
Keywords:
-
Tshirt Printing Machine
-
Machine Type:
-
Customized design 6 position rotary work heat transfer
-
After Warranty Service:
-
Video Support
-
MOQ:
-
1 Unit
-
Time range:
-
0-999s
-
Temperature Range:
-
0-399 Degree
-
Machine surface:
-
blue+grey color and customized color
Product Description
Machine Features:
1. Intelligent touch screen digital temp.&time control displayer in a panel.
2.The radiation pipe and the heater plate in whole,safe,durable,and distribute heat averagely.
3. Free to adjust the pressure,widely used in the factory assembly line operation.
4. Adopt IC board, touch buttons, electromagnetic switch and ON/OFF timer, providing elegant appearance and high reliability.
5. 6 aluminum worktables,automatic rotating movement.
6. Automatic control,even and stable pressure (pressure up to 8KG/CM2)
7. PLC control system displayer,automatic/Manual mode for option.
9. Imported teflon sheet covers the heating platens,its surface with anti-crushing, safe and rationalized.
10. Adjustable rotating speed,you can adjust the speed as your required.
11. V shape bracket is support the worktable,finished t-shirt can be insert.
2.The radiation pipe and the heater plate in whole,safe,durable,and distribute heat averagely.
3. Free to adjust the pressure,widely used in the factory assembly line operation.
4. Adopt IC board, touch buttons, electromagnetic switch and ON/OFF timer, providing elegant appearance and high reliability.
5. 6 aluminum worktables,automatic rotating movement.
6. Automatic control,even and stable pressure (pressure up to 8KG/CM2)
7. PLC control system displayer,automatic/Manual mode for option.
9. Imported teflon sheet covers the heating platens,its surface with anti-crushing, safe and rationalized.
10. Adjustable rotating speed,you can adjust the speed as your required.
11. V shape bracket is support the worktable,finished t-shirt can be insert.
Specification
|
Item
|
value
|
|
Type
|
Heat Press Machine
|
|
Applicable Industries
|
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Advertising Company
|
|
Condition
|
New
|
|
Plate Type
|
Flatbed Printer
|
|
Place of Origin
|
China
|
|
Province
|
Guangdong
|
|
Brand Name
|
gaoshang
|
|
Model Number
|
GS-QD4
|
|
Usage
|
Heat Press
|
|
Automatic Grade
|
Automatic
|
|
Color & Page
|
Multicolor
|
|
Voltage
|
220V/380V
|
|
Dimensions(L*W*H)
|
105*132*158 CM
|
|
Weight
|
310KG
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pressure vessel, PLC, Bearing
|
|
Platen Size
|
38*38cm
|
|
Temperature Range
|
0-399 Degree
|
|
Product name
|
Hydraulic slide worktable heat press machine
|
|
Application
|
cut piece,doormat,glass sheet,metal plate
|
|
Function
|
Multiple-surface Sublimation
|
|
Keywords
|
Tshirt Printing Machine
|
|
Machine Type
|
Double-Station
|
|
Type
|
heat press machine
|
|
MOQ
|
1 Unit
|
|
Time range
|
0-999s
|
|
Controller
|
Digital LCD Touch Screen
|
|
Driven Type
|
Hydraulic
|
|
Mode ( CM )
|
Voltage ( V )
|
Power ( KW ）
|
Time Range(s)
|
Temp.Range (℃）
|
Working Size(kg/㎡）
|
Packing Size(cm)
|
|
15*15
|
220/380
|
2.2
|
0-999
|
0-399
|
0-8
|
|
|
20*20
|
220/380
|
3
|
0-999
|
0-399
|
0-8
|
|
|
38*38
|
220/380
|
2.2
|
0-999
|
0-399
|
0-8
|
105*132*158
|
|
40*50
|
220/380
|
3
|
0-999
|
0-399
|
0-8
|
167*90*138
|
|
40*60
|
220/380
|
3.8
|
0-999
|
0-399
|
0-8
|
180*86*137
|
|
50*60
|
220/380
|
3.8
|
0-999
|
0-399
|
0-8
|
183*90*144
|
|
50*70
|
220/380
|
4
|
0-999
|
0-399
|
0-8
|
215*90*150
|
|
50*80
|
220/380
|
6.5
|
0-999
|
0-399
|
0-8
|
260*98*150
|
Packing & Delivery
Heat Press Machine is packed by export wooden case
