Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Finecables(FC)
-
Model Number:
-
IEC 61076-2-101 M12 male cable connector
-
Product name:
-

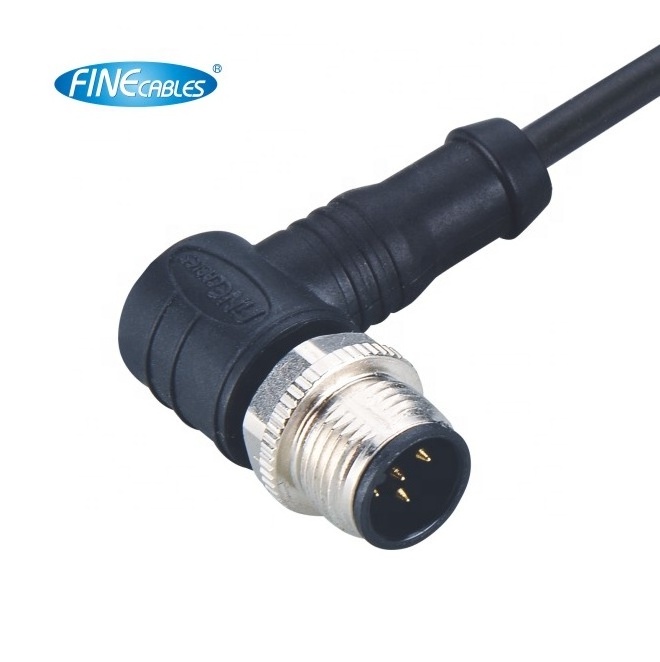

IEC 61076-2-101 M12 male cable connector
-
Standard:
-
IEC 61076-2-101
-
Ambient temperature:
-
-20℃~+80℃
-
Connector insert:
-
TPU
-
Connector contacts:
-
Brass with gold plated
-
Connector overmold:
-
TPU
-
Coupling nut/screw:
-
Zinc alloy with nickel plated
-
Insulation resistance:
-
≥ 100M Ω
-
Contact resistance:
-
≤5mΩ
-
Coding:
-
A&B&D
Quick Details
-
Type:
-
M12 connector
-
Application:
-
Automotive
-
Gender:
-
Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Finecables(FC)
-
Model Number:
-
IEC 61076-2-101 M12 male cable connector
-
Product name:
-
IEC 61076-2-101 M12 male cable connector
-
Standard:
-
IEC 61076-2-101
-
Ambient temperature:
-
-20℃~+80℃
-
Connector insert:
-
TPU
-
Connector contacts:
-
Brass with gold plated
-
Connector overmold:
-
TPU
-
Coupling nut/screw:
-
Zinc alloy with nickel plated
-
Insulation resistance:
-
≥ 100M Ω
-
Contact resistance:
-
≤5mΩ
-
Coding:
-
A&B&D
Specifications
|
Basic Product Information
|
|
|
|
Connector Series
|
M12
|
|
|
Gender
|
Male
|
|
|
Coding
|
B
|
|
|
Locking Type
|
Fix Screw
|
|
|
Mounting Type
|
Straight
|
|
|
Part No.
|
MA12MSBHDXXRA-XXXX34
|
|
|
* refers to coding type
** refers to pins number
|
|
|
|
General Infomation
|
|
|
|
|||
|
Standard
|
IEC 61076-2-101
|
Insulation Resistance
|
≥100MΩ
|
|||
|
Ambient Temperature
|
-25℃~+85℃(flexible installation)
-40℃~+85℃(fixed installation)
|
Contact Resistance
|
≤5mΩ
|
|||
|
Connector Insert
|
TPU+GF
|
Shielding
|
Unavailable
|
|||
|
Connector Contacts
|
Brass with Gold Plated
|
Seal/O-ring
|
Epoxy resin/FKM
|
|||
|
Coupling Nut/Screw
|
Zinc Alloy with Nickel Plated
|
Mating Endurance
|
>500 cycles
|
|||
|
IP Rating
|
IP67/IP68/IP69K in locked condition
|
Certificate
|
UL/CE/ROHS/IP67/REACH/IP68
|
|||
