Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2500 mm
-
Travel (Y Axis)(mm):
-
1300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UBOCNC
-
Voltage:
-
AC 380V
-
Power (kW):
-
18
-
Weight (KG):
-
2800
-
Product name:
-

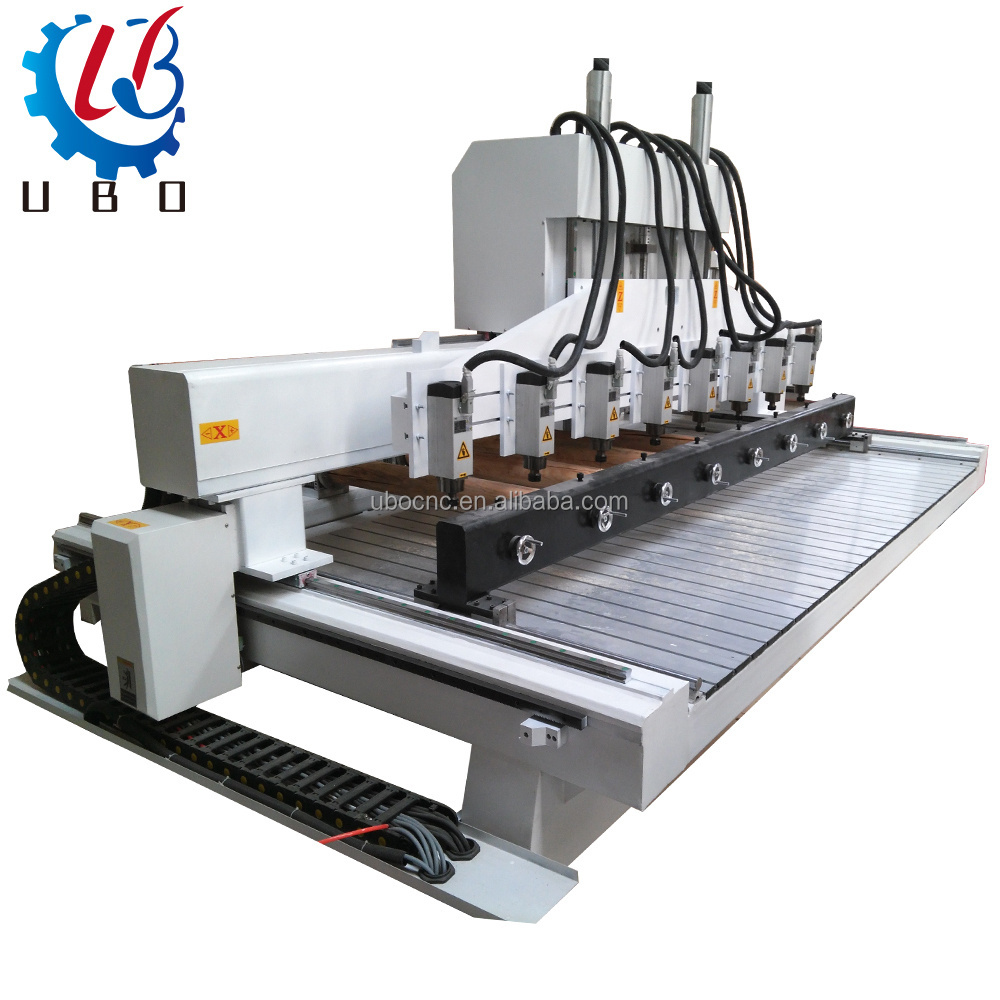

4 Axis Cnc Milling engraving router Machine
-
Transmission:
-
XY-axis:rack,TBI ball screw on Z
-
Inverter:
-
Delta Inverter
-
Motor:
-
Japan Yaskawa Servo Motor
-
Spindle:
-
Air Cooling Spindle
-
Table Surface:
-
Double Layer Vacuum Table
-
Working table:
-
Aluminum T Slot Working Table
-
Function:
-
Panel Furniture Automated Cutting
-
Spindle power:
-
1.5/2.2/3.2KW
-
Key word:
-
engraving on flat sheet and rotary device
Quick Details
-
Working Table Size(mm):
-
1300 * 2500 * 200mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2500 mm
-
Travel (Y Axis)(mm):
-
1300 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UBOCNC
-
Voltage:
-
AC 380V
-
Power (kW):
-
18
-
Weight (KG):
-
2800
-
Product name:
-
4 Axis Cnc Milling engraving router Machine
-
Transmission:
-
XY-axis:rack,TBI ball screw on Z
-
Inverter:
-
Delta Inverter
-
Motor:
-
Japan Yaskawa Servo Motor
-
Spindle:
-
Air Cooling Spindle
-
Table Surface:
-
Double Layer Vacuum Table
-
Working table:
-
Aluminum T Slot Working Table
-
Function:
-
Panel Furniture Automated Cutting
-
Spindle power:
-
1.5/2.2/3.2KW
-
Key word:
-
engraving on flat sheet and rotary device
Feature
1.The machine body is strong, welded by 6mm thickness steel.
2.Imported high-precision square rail, smooth movement, to ensure that the machine tools high-precision
3.Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
4.Dust-proof structure to ensure that the machines longer service life.
5.Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
6.Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing .
7.Compatility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM designsoftware.
2.Imported high-precision square rail, smooth movement, to ensure that the machine tools high-precision
3.Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
4.Dust-proof structure to ensure that the machines longer service life.
5.Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
6.Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing .
7.Compatility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM designsoftware.
Products Description
|
Model
|
UW-R2513
|
|
Working Area:
|
2500*1300*300mm
|
|
Spindle Type:
|
air cooling spindle
|
|
Spindle Power:
|
2.2kw Spindle
|
|
Spindle Rotating Speed:
|
0-18000rpm
|
|
Tools magazines
|
8pcs tools
|
|
Power (except spindle power):
|
4KW (include powers of: motors, drivers, inverters and so on)
|
|
Power Supply:
|
AC380/220v±10, 50 HZ
|
|
Worktable:
|
Aluminum T solt Table
|
|
Driving Syestm:
|
1000W Taiwan Delta servo motors and drivers
|
|
Transmission:
|
X,Y :Gear rack, high accuracy square guide rail,
Z: ball screw TBI and hiwin square guide rail |
|
Locating precision:
|
<0.01mm
|
|
Min Shaping Character:
|
Character:2x2mm,letter:1x1mm
|
|
Operating Temperature:
|
5°C-40°C
|
|
Working Humidity:
|
30%-75%
|
|
Working Precision:
|
±0.03mm
|
|
System Resolution:
|
±0.001mm
|
|
Control Configuration:
|
Taiwan Syntec control system
|
|
Data Transfer Interface:
|
USB
|
|
System Environment:
|
Windows 7/8/10
|
|
Spindle Cooling Way:
|
Air cooling
|
|
Limited Switch:
|
High sensitivity limited switches
|
|
Graphic Format Supported:
|
G code: *.u00, * mmg, * plt, *.nc
|
|
Compatible Software:
|
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….
|
Application
Woodworking industry:
Three dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and furniture auxiliary processing.
Advertising industry:
Advertising signs, logo production, acrylic, plastic cutting, production of decorative materials, forming system module, etc.
Furniture industry:
Solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden.
Woodworking industry:
Three dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and furniture auxiliary processing.
Advertising industry:
Advertising signs, logo production, acrylic, plastic cutting, production of decorative materials, forming system module, etc.
Furniture industry:
Solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden.
