Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RuiLian
-
Model Number:
-

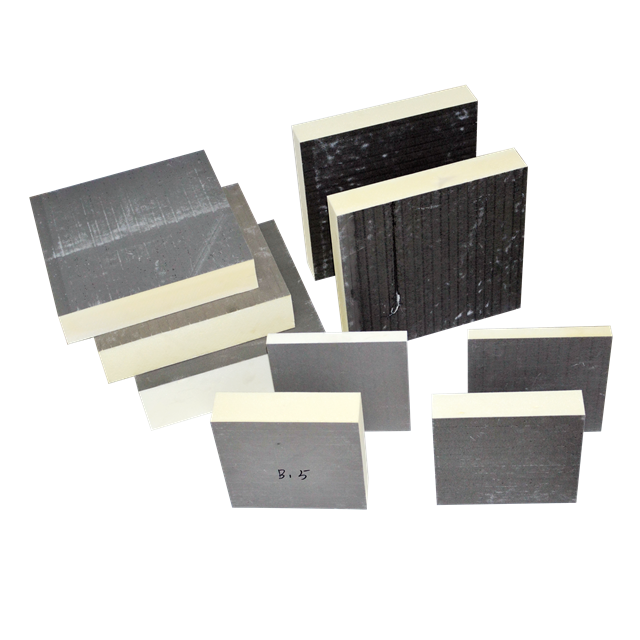

Polyurethane Foam Board
-
Product name:
-
PIR Sandwich Panel
-
Core material:
-
Hard Polyurethane Foam
-
Surface material:
-
Mortar Paper
-
Density:
-
≥38kg/m³
-
Thickness:
-
10~130mm
-
Width:
-
≤1200mm
-
Length:
-
No limitation
-
Fire rating:
-
B1,B2,B3
-
Thermal conductivity:
-
≤0.024w/mk
-
MOQ:
-
3200 square meters
Quick Details
-
Project Solution Capability:
-
graphic design, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RuiLian
-
Model Number:
-
Polyurethane Foam Board
-
Product name:
-
PIR Sandwich Panel
-
Core material:
-
Hard Polyurethane Foam
-
Surface material:
-
Mortar Paper
-
Density:
-
≥38kg/m³
-
Thickness:
-
10~130mm
-
Width:
-
≤1200mm
-
Length:
-
No limitation
-
Fire rating:
-
B1,B2,B3
-
Thermal conductivity:
-
≤0.024w/mk
-
MOQ:
-
3200 square meters
Products Description
Polyurethane foam insulation board is an economical, energy-efficient, and environmentally friendly insulation product that offers the following benefits:
1. Highest R-value per inch, which measures the thermal resistance of the insulation,
2. Significant installation cost savings,
3. Excellent fire performance,
4. Low environment impact and energy savings,
5. Superior insurance ratings,
6. High strength,
7. Moisture resistance,
8. Compliance with building codes,
Product Application
Scope of use of the product
1. Building wall and roof insulation board
2. Pipeline and ventilation pipeline insulation board
3. Solar insulation system
4. Building insulation insulation system
Product Structure Diagram
Product Paramenters
|
Category
|
Unit
|
Parameter
|
|
Insulation core
|
Performance density/kg/
m
3
|
≥40
|
|
|
Thermal conductivity w/(m·k)
|
≤0.024
|
|
|
Water absorption (%)
|
≤3
|
|
Integral sheet
|
Dimensional stability(%)
|
70℃ 48≤1.5
-30℃ 48≤1.0
|
|
|
Compression strength(MPa)
|
≥0.15
|
|
|
Tensile bond strength(MPa)
|
≥0.15，And the damage is on the insulation core layer
|
|
Aluminum foil thickness
|
0.4mm or 0.8mm
|
|
|
Project
|
According to customer needs
|
|
Packaging
|
Wooden pallet, 10pcs/12pcs/15pcs in one bag; 4 bags or 5 bags in one pallet
|
|
Mortar Surface
|
No holes, No tears, Straight edges, No notches
|
|
Dimension
|
Length is no limited, Width maximum is 1.2M
|
|
Thickness
|
From 10mm to 100mm
|
|
Packaging Film
|
Can print clients‘ logo
|
|
Rigid core Polyurethane foam
|
Can be white,yellow,green,blue etc., according to customers' need
|
