Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
model
-
Weight:
-
500 KG
-
Product Name:
-
hydrocylone hydraulic classifier gravity Separator
-
Company Name:
-
Weifang Guote Mining Equipment Co., Ltd
-
Capacity:
-
0-50TPH
-
Keyword:
-
hydrocylone,gravity Separator
-
Material size:
-
-5mm
-
Classification range:
-
0.4-0.04mm
-
After sale Service:
-
Anytime
-
Service:
-
ODM&OEM
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOTE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
model
-
Weight:
-
500 KG
-
Product Name:
-
hydrocylone hydraulic classifier gravity Separator
-
Company Name:
-
Weifang Guote Mining Equipment Co., Ltd
-
Capacity:
-
0-50TPH
-
Keyword:
-
hydrocylone,gravity Separator
-
Material size:
-
-5mm
-
Classification range:
-
0.4-0.04mm
-
After sale Service:
-
Anytime
-
Service:
-
ODM&OEM
Product name
: hydraulic classifier,gravity Separator,hydrocylone
T
he feeding size
: < 5 mm
Production capacity
: 0—50 t/h
Usage :Wet type sand screening machine
The hydrocylone is used to separate solids from liquid. It can classify, separate or sort particles in a liquid suspension based on the ratio of their centripetal force to fluid resistance.
Application field: Mainly used in various industries with strict classification and selection of silica sand
Equipment introduction:Mainly used for fine mineral particle degree of classification
Advantages:
1, the material in the cylinder body by the rising water effect, achieve the purpose of sizing, the proportion of separation, high efficiency, low energy consumption.
2, equipped with automatic control system, the operation parameter adjustment is simple and convenient, easy to control.
3, a water tank at the bottom of the barrel is equipped with special devices and to rise above the water hole automatically shut down, the cylinder body of the material will not block the hole and into the tank.
| Model | iuput size(mm) | classification range(mm) | capacity(t/h) | weight kg |
| GSF1200 | <5 | 0.4-0.004 | 3-7 | 820 |
| GSF1500 | 7-10 | 1200 | ||
| GSF1800 | 10-15 | 1770 | ||
| GSF2100 | 15-20 | 2540 | ||
| GSF2400 | 20-25 | 3260 |
Working principle
1.Extremely efficient washing of soluble or colloidal species from granular particles by virtue of counter-current plug flow washing
2.High sharpness, little misplaced material via direct bed measurement
3.Multiple discharge valves on large units, to continue an even bed draw down without valve blockages or channeling
4.Multiple water injection nozzles result in uniform flow even at minimal flow rates
5.No moving parts are exposed to process slurry, meaning little maintenance is required and a long operating life is achievable
6.Low headroom design results in low capital installation and maintenance costs and easier inspection
7.Zero bypass, no fines in underflow

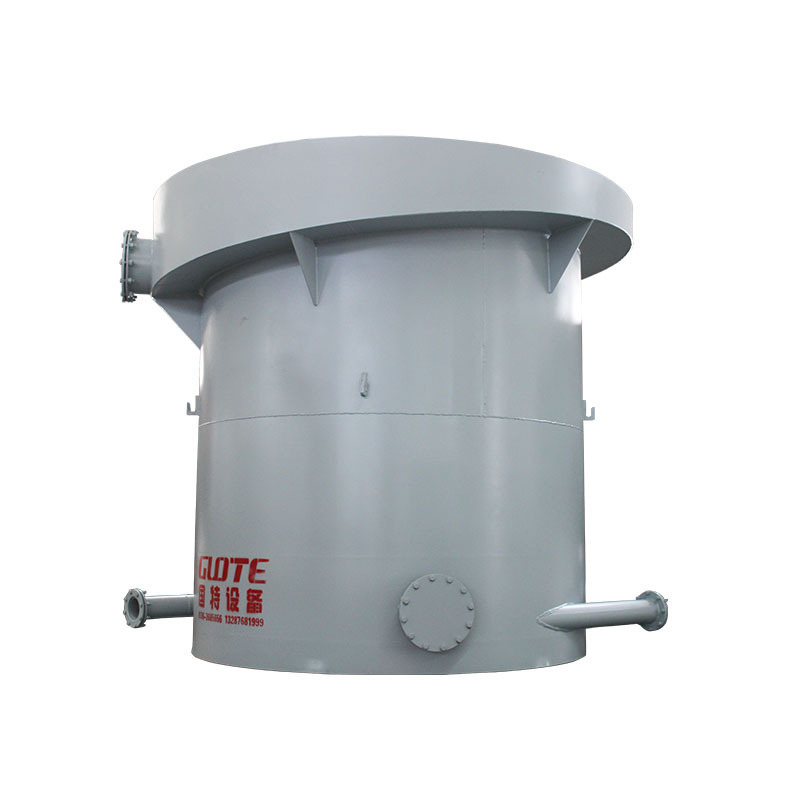

The flat bottom classifier is a well proven performer for the hydraulic classification of particles by size or density. The flat bottom classifier reliably extracts light or small particles from slurry at high efficiency, while displacing a minimum of heavy or coarse particles to the overflow.
