Quick Details
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
MS-58
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25℃ to +85 ℃
-
Protection Level:
-
IP60/IP68
-
IP level:
-
IP65
-
Product Type:
-
Micro Switch
-
Application:
-
Home appliance,electronic device,auto electronic
-
Electrical Life:
-
100,000times above
-
Mechanical Life:
-
1,000,000times above
-
Housing:
-
Black
-
Rating Load:
-
15A 250VAC
-
Contact Form:
-
SPST
-
Characteristics:
-
Compact Design
-
Terminal Form:
-
Pin Terminal
-
Keywords:
-
Normally Open Micro Switch
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
MS-58
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25℃ to +85 ℃
-
Protection Level:
-
IP60/IP68
-
IP level:
-
IP65
-
Product Type:
-
Micro Switch
-
Application:
-
Home appliance,electronic device,auto electronic
-
Electrical Life:
-
100,000times above
-
Mechanical Life:
-
1,000,000times above
-
Housing:
-
Black
-
Rating Load:
-
15A 250VAC
-
Contact Form:
-
SPST
-
Characteristics:
-
Compact Design
-
Terminal Form:
-
Pin Terminal
-
Keywords:
-
Normally Open Micro Switch
Product Details
Product Specification
|

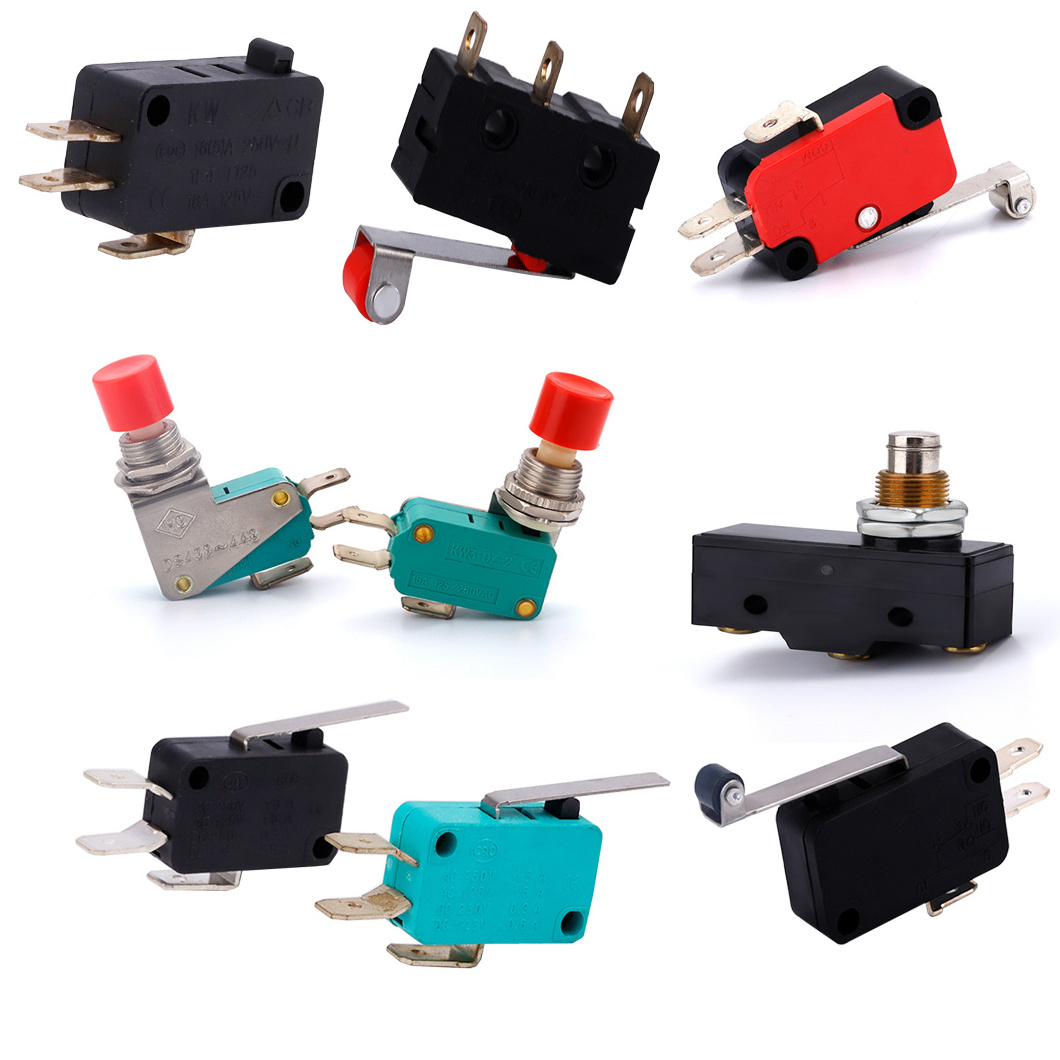

About Micro Switch
1. Adopt thermosetting plastic or thermoplastic;Long electrical and mechanical life.
2. Small contact gap, snap action, high
sensitivity and small operating travel;
3. Different kinds of levers;
4. Widely used in appliance, electronic equipment, automatic
machine, communication equipment, car electric, apparatus.
|
|
|
|
Product Name
|
Micro Switch
|
|
|
Place of Origin
|
Zhejiang,China
|
|
|
Brand Name
|
ABILKEEN
|
|
|
Vibration resistance
|
10~55 HZ ,1.5mm Double amplitude
|
|
|
Rating
|
15A 125/250VAC
|
|
|
Practical temperature range
|
-25 to 85 degrees Celsius
|
|
|
Operating frequency
|
Mechanical: 60 cycles/min
|
|
|
|
Electrical: 25cycles/min
|
|
|
Insulation resistance
|
≥100 MΩ(500Vdc)
|
|
|
Mechanical Life
|
≥1,000,000cycles
|
|
|
Product Type
|
Limit Micro switch
|
|
