Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDO
-
Product Name:
-
TFT LCD Dispaly
-
Resolution:
-
320*820
-
Size:
-
3.2inch
-
Display mode:
-
Transmissive Mode
-
Interface:
-
3SPI+18RGB
-
Application:
-
Industrial Application
-
Brightness:
-
300cd/m2
-
Active Area:
-
26.4 (H)*67.65(V)
-
Driver IC:
-
ST7701S
-
Viewing Angle:
-
IPS
Quick Details
-
Type:
-
TFT
-
Display Size:
-
3.2inch
-
Supplier Type:
-
manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDO
-
Product Name:
-
TFT LCD Dispaly
-
Resolution:
-
320*820
-
Size:
-
3.2inch
-
Display mode:
-
Transmissive Mode
-
Interface:
-
3SPI+18RGB
-
Application:
-
Industrial Application
-
Brightness:
-
300cd/m2
-
Active Area:
-
26.4 (H)*67.65(V)
-
Driver IC:
-
ST7701S
-
Viewing Angle:
-
IPS
Product Description
elevator tft display RGB tft display 3.2inch 320*820 tft lcd display module
| General Specifications | ||
| Feature | Specicatlons | |
| Display Spec | Display Size(Dlagonal) | 3.16 inch |
| Resolution(H"V) | 320(RGB) X820 | |
| LCDtype | a-SITFT | |
| Pixel Configuration | R.G.B Vertical Stripe | |
| Display Mode | IPSTransmissive/Nomally Black | |
| Vewng Direction | Al | |
|
Mochanical
Characteristics |
OUulineDimensions (HxVx D(mm) | 31.2(H) *76.6/V)*24(D) |
| Active Area(mm) | 26.4 (H)*6765V | |
| With Mthout Touch screen | Wthout | |
| Match Connector Type | 0.5 PITCH 40PIN | |
| Backlight Type | WhiteLED | |
| Weight() | TBD | |
|
Electrical
Characteristics |
Interface | 3SPI+ 18RGB |
| Number of color | 262K | |
| DriverIC | ST7701S | |
Structure diagram

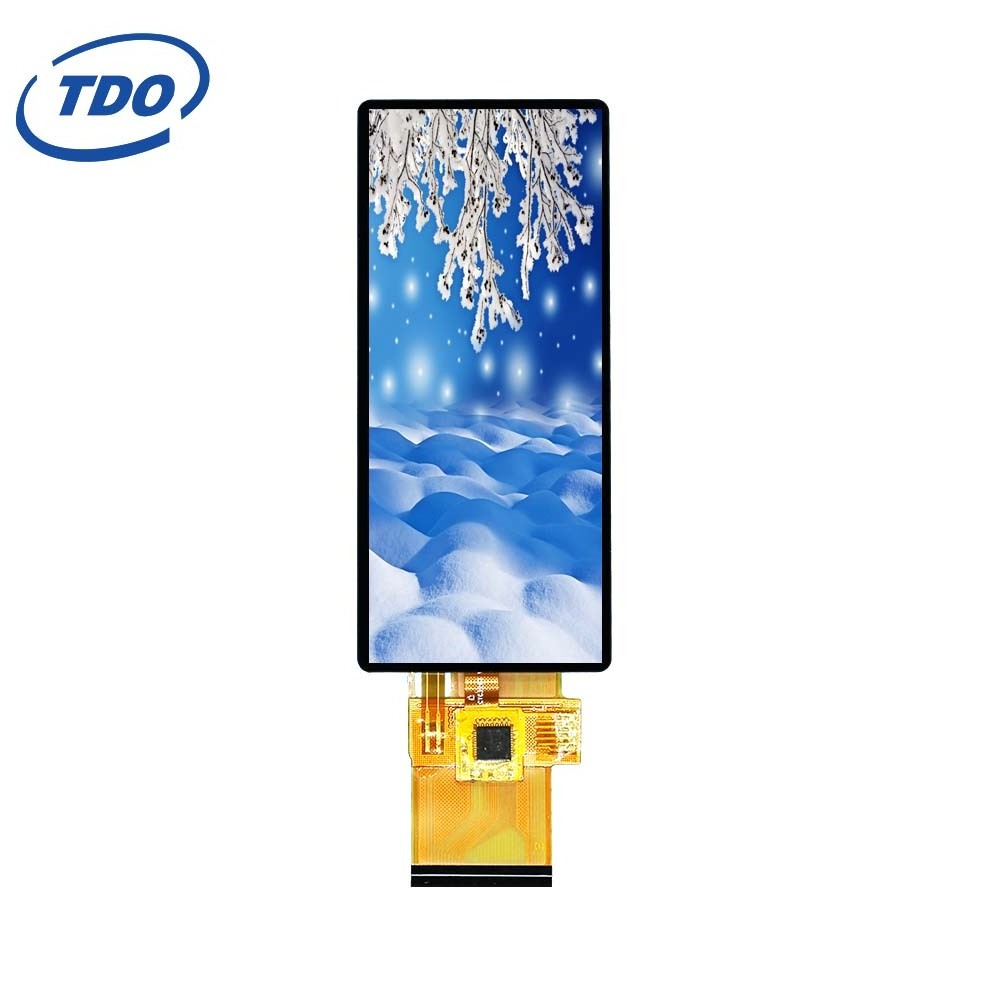

Product picture
New bar type lcd display
| Shape | Size | Resolution | Brightness | Interface | Optional |
|
Circular
|
1.22" | 240RGB*204 | 280 | SPI | IPS/CTP |
| 1.28" | 240RGB*240 | 300 | RGB | IPS/CTP | |
| 1.45" | 412RGB*412 | 250 | MIPI | IPS/CTP | |
| 2.1" | 480RGB*480 | 300 | RGB | IPS/CTP/MIPI | |
| 2.76" | 480RGB*480 | 300 | RGB | IPS/MIPI | |
| 3.4" | 800*800 | 300 | MIPI | IPS/RGB | |
| 4" | 720*720 | 350 | RGB | IPS/MIPI | |
| 2.1" | 480RGB*480 | 300 | RGB | IPS/CTP/MIPI |
