Quick Details
-
SENSOR:
-
OmmniVision-OV2710
-
Lens Size:
-
1/2.7"
-
Most effective pixels:
-
1920x1080
-
Data Format:
-
MJPG/YUY2
-
Pixel Size:
-
3 m x 3 m
-
focusing:
-
Fixed focus
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Sensor:
-
CMOS
-
Special Features:
-
Waterproof / Weatherproof
-
SENSOR:
-
OmmniVision-OV2710
-
Lens Size:
-
1/2.7"
-
Most effective pixels:
-
1920x1080
-
Data Format:
-
MJPG/YUY2
-
Pixel Size:
-
3 m x 3 m
-
focusing:
-
Fixed focus

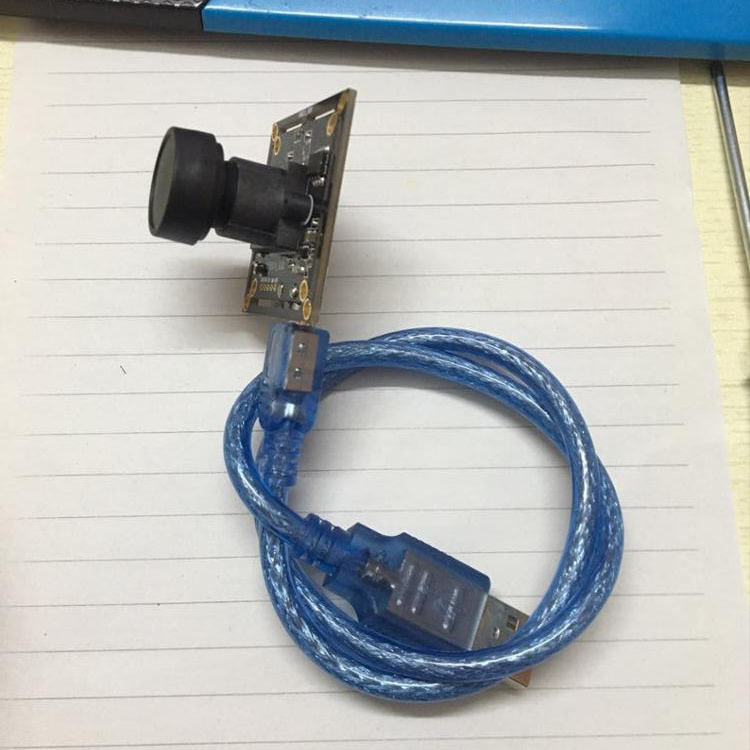

60FPS camera module, OV2710 usb camera module with colors from HSTD china
Technical parameters )
|
(Items) |
(Parameters) |
|
( SENSOR) |
OmmniVision -OV2710 |
|
(Lens Size) |
1/2.7" |
|
( Most effective pixels ) |
1920x1080 |
|
(Data Format) |
MJPG /YUY2 |
|
(Pixel Size) |
3 µm x 3 µm |
|
(dynamic range) |
69 dB (@) 8x gain |
|
(Lens) |
FOV : D= 100 ° |
|
Optical length : 22MM |
|
|
lens construction : 6E=IR |
|
|
mount :M12*P0.5mm |
|
|
focusing |
( Fixed focus ) |
|
(Frame rate) |
30fps |
|
(auto control) |
(Saturation),(Contrast),(acutance),(White balance),(exposure). |
|
(audio) |
/ |
|
(Voltage) |
DC 5V |
|
(working current) |
MAX 200mA |
|
(USB Connector) |
USB2.0 |
|
(Storage Temperature) |
-20°C to + 7 0°C |
|
(working Temperature) |
0°C to +60°C |
|
(system compatibility) |
1,Windows XP(SP2,SP3),Vista ,7,8,10 |
|
2 , Linux or OS with UVC driver |
Appearance Dimension
Function inspection criteria)
1.( Electrical properties , the quality of image . )
( I nspection methods)
Staff : The appearance of the inspectors to be trained and the capacity of normal color vision , Its vision to achieve more than 1.0 (after correction can also be reached more than 1.0) , Color vision capability should be available through standard tests .
2. T ool: Connect the computer , Testing images with Amcap software .
3. Distance and Time: Observation distance: 30 ~ 5 5cm,
Observation time for each surface : 3 ~ 5 seconds
4. Test condition: Visual inspection should be conducted under anti-glare fluorescent lamp with min 100 feet candela luminace, or under 60 watt fluorescent lamp of 1.5m distance.
( Accept criteria )
1. (The image has no mess, color screen and discoloration.)
2. (There is no white spot, black spot, dirt or dark angle in the image.)
3. ( T The image is same clear on all cornors)
