Quick Details
-
Year:
-
2023
-
Weight (KG):
-
900 KG
-
Round tube::
-
120mm
-
Square tube:
-
90*90mm
-
Main motor:
-
4/5.5KW
-
Saw blade::
-
Tungsten carbide tipped 355mm
-
Spindle speed::
-
2850RPM
-
Air pressure::
-
0.6MPa,2500NL/min
-
Machine Size::
-
W2000mm*D 1100mm *H1650mm
-
Dimension(L*W*H):
-
2000*1100*1650mm
-
Rated Power:
-
4/5.5KW
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Chine Chern
-
Voltage:
-
3 Phase 380V 50Hz, 380V 50HZ
-
Year:
-
2023
-
Weight (KG):
-
900 KG
-
Round tube::
-
120mm
-
Square tube:
-
90*90mm
-
Main motor:
-
4/5.5KW
-
Saw blade::
-
Tungsten carbide tipped 355mm
-
Spindle speed::
-
2850RPM
-
Air pressure::
-
0.6MPa,2500NL/min
-
Machine Size::
-
W2000mm*D 1100mm *H1650mm
-
Dimension(L*W*H):
-
2000*1100*1650mm
-
Rated Power:
-
4/5.5KW
Precision Full Automatic Circular Saw Cutting Machine for Solar Panel Frame Aluminium Profile Skyligh 45 Degree Cutting Off
Feature:
1. Servo motor feed,High accuracy about feeding length and cutting length.
2. It is simple to operate by WEINVIEW touch screen panel
3. Feeding accuracy: ±0.05-----±0.1mm
4. Automatic cooling tank keeps the cut section smooth and clean. The saw blade is sharp and durable .
| Model | JC-360-3AS(Servo feed items) | |||||
| Cutting angle | 90° | |||||
| Round tube (mm) | 120 | |||||
| Square tube(mm) | 90×90 | |||||
| Rectanular tube(mm) | 175×50 | |||||
| Solid bar(mm) | 110 | |||||
| Feeding length(mm) | 6-500mm or as per the order | |||||
| Feeding accuracy( Length accuracy and Vertical accuracy(mm) ) | ±0.05-----±0.1mm | |||||
| Feed mode | Japan Yaskawa Servo Motor | |||||
| Feeding speed | Stepless Adjustment | |||||
| Process speed(seconds/pc ) | 4-5Seconds ,If bigger material,Depend on the material | |||||
| Roughness | Ra6.3 | |||||
| Host motor | 5HP/2P | |||||
| Saw blade | ¢355mm Tungsten carbide tipped | |||||
| Spindle speed(RPM) | 2850 | |||||
| Cooling mode | Water cooling or oil mist cooling | |||||
| Compressed air | 0.6MPa,2500NL/min | |||||
| Voltage | 3-Phase 415V 50HZ | |||||
| Machine dimension(mm) | 1750×1205×1670 | |||||
| Machine weight(kg) | 800 | |||||
| Special fittings(charge) | 1. sawdust collector(Optional) 2.Converter for spindle speed (Adjustable speed)(optional) | |||||
Spare parts list:
| Host Motor | TaiWan QunCe | |||
| Hydraulic system | TaiWan QuanMao | |||
| Servo motor | Japan Yaskawa | |||
| Touch screen | TaiWan Weinview | |||
| PLC | TaiWan YongHong | |||
| Contactor | TaiWan TaiAn | |||
| Stroke switch | TaiWan TianDe | |||
| Pressure regulating valve | TaiWan ShenLi | |||
| Buffer | TaiWan XiJieKe | |||
| Solenoid valves | TaiWan QuanMao | |||
| Host machine head | TaiWan original | |||

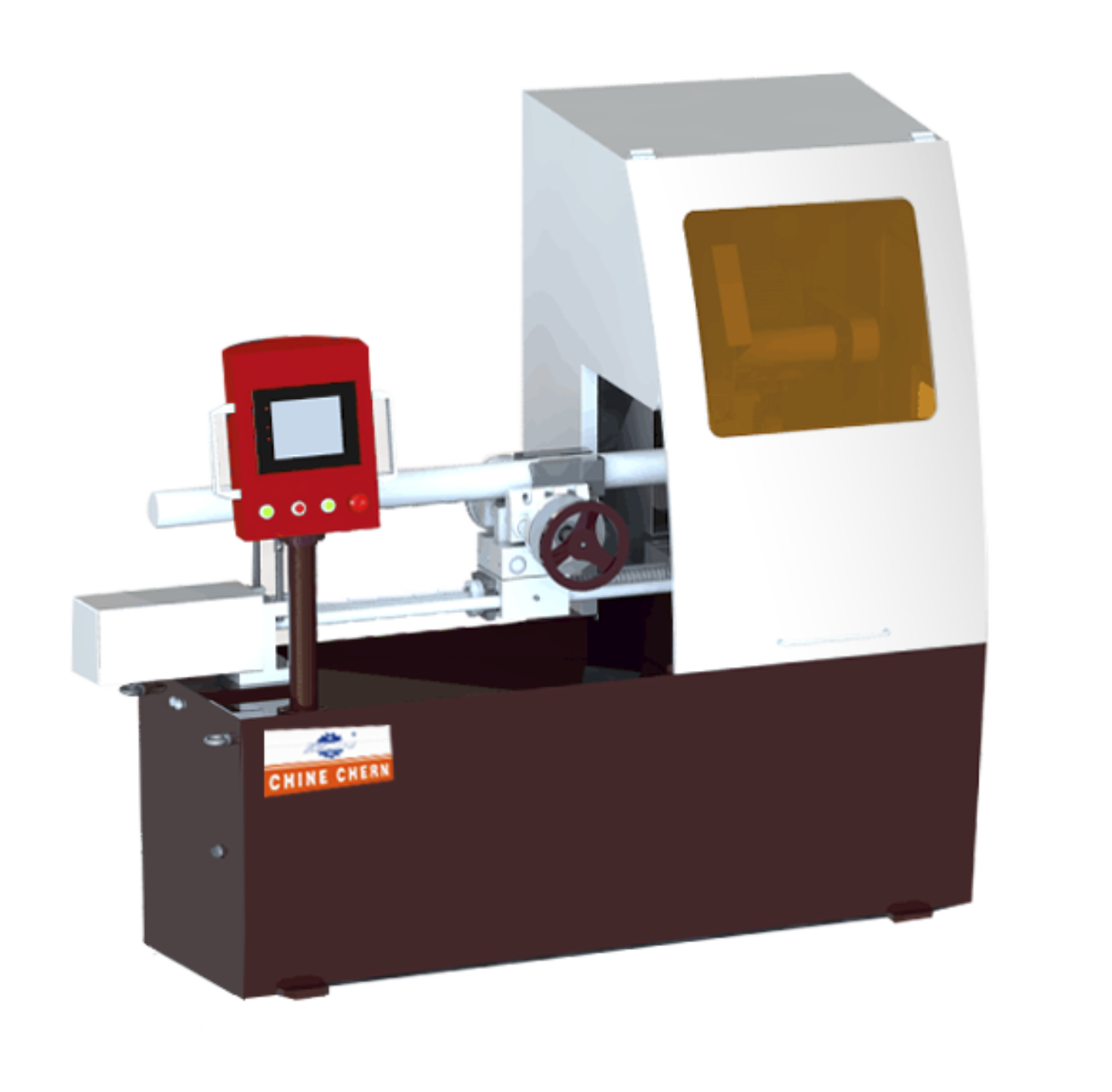

Machine Photo:
Package:
