Quick Details
-
Model Number:
-
spx504
-
Product Name:
-
online digital density meter
-
Measure range:
-
0~2g/cm3, 0~3g/cm3
-
Temperature range:
-
-20℃ ~ +150℃
-
Accuracy:
-
± 0.001 g /cc (± 1 kg/m3)/± 0.002 g /cc (± 2 kg/m3)
-
Wetting material:
-
316L stainless steel Hastelloy
-
Protection leve:
-
IP65
-
Signal output:
-
4~20mA, digital signal output (HART)
-
Power supply:
-
24VDC,≥500mA
-
Application:
-
density measurement
-
Keywords:
-
Digital Petroleum Oil Density Measurement
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
spx504
-
Product Name:
-
online digital density meter
-
Measure range:
-
0~2g/cm3, 0~3g/cm3
-
Temperature range:
-
-20℃ ~ +150℃
-
Accuracy:
-
± 0.001 g /cc (± 1 kg/m3)/± 0.002 g /cc (± 2 kg/m3)
-
Wetting material:
-
316L stainless steel Hastelloy
-
Protection leve:
-
IP65
-
Signal output:
-
4~20mA, digital signal output (HART)
-
Power supply:
-
24VDC,≥500mA
-
Application:
-
density measurement
-
Keywords:
-
Digital Petroleum Oil Density Measurement

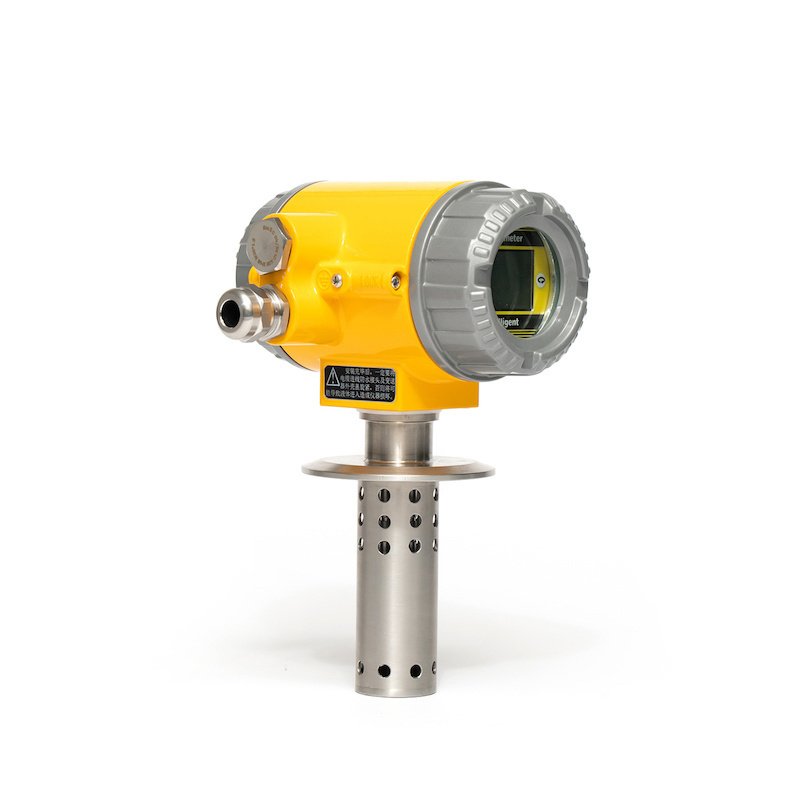

SPX504 tuning fork densitometer
is installed by plug-in type, which is widely applicable to the detection of medium density in pipeline, open tank container and closed tank container. The fluid density directly depends on the vibration frequency received by the tuning fork when the sensor is inserted into the medium. The built-in temperature sensor provides temperature compensation for the sensor.
Application:
petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), specifically applied to the interface detection of multi product pipeline in the above industries, density detection of mixing mixture, end point monitoring of reactor, interface detection of separator.
|
New 4-20mA Online Digital Petroleum Oil Tuning Fork Density Meter Transmitter
|
|
|
|
Measuring range
|
0.5 – 2.5 g /cc (500 – 2500 kg/m3)
|
|
|
Calibration range
|
0.5 – 2.5 g /cc (500 – 2500 kg/m3)
|
|
|
measurement accuracy
|
± 0.002 g /cc (± 2 kg/m3)
|
|
|
Repeatability
|
± 0.0002 g /cc (± 0.2 kg/m3)
|
|
|
Operating temperature range
|
-50℃ ~ +200℃
|
|
|
Maximum working pressure
|
207 bar (3000 psi)
|
|
|
Fluid viscosity range
|
0 – 20000 cP
|
|
|
Temperature Coefficient
|
Less than 0.1 kg/m3/°C (after correction)
|
|
|
Pressure effect
|
Negligible
|
|
|
Built-in temperature sensor
|
Digital sensor
|
|
|
Wetted material
|
316L stainless steel Hastelloy
|
|
|
Fork body coating
|
Standard type, PTFE or electrolytic polishing
|
|
|
Power supply
|
24VDC, ≥50 mA
|
|
|
Analog signal output
|
4 -20 mA,0-1000Hz,RS485 Modbus RTU
|
|
|
Output accuracy (20 ° C)
|
± 0.1% of reading or ± 0.05% FS
|
|
|
Output repeatability (-40 ~ +85 ° C)
|
± 0.05% FS
|
|
|
Process connection
|
ANSI 150 ~ 1500 RF
DIN 50 PN16 DIN 50 PN40 IDF and RJT Hygienic |
|
|
Protection level
|
IP65
|
|
|
shell
|
Aluminum alloy
|
|
MAIN FEATURES
* The use of industrial-grade high-performance micro-controller integrated circuit, high accuracy, good stability, strong anti-jamming ability.
* Power supply using isolation circuit design, wide-format precision power supply, impact resistance, anti-jamming.
* "Plug and use, maintenance-free" measurements for monitoring and controlling continuous measurements
* Sensor signal with photoelectric compartment design with 4-20 mA output, connectivity PLC control system
* Long rod type is suitable for use in open and sealed tanks and cans up to 2m in length
* Explosion-proof certifification
* The use of industrial-grade high-performance micro-controller integrated circuit, high accuracy, good stability, strong anti-jamming ability.
* Power supply using isolation circuit design, wide-format precision power supply, impact resistance, anti-jamming.
* "Plug and use, maintenance-free" measurements for monitoring and controlling continuous measurements
* Sensor signal with photoelectric compartment design with 4-20 mA output, connectivity PLC control system
* Long rod type is suitable for use in open and sealed tanks and cans up to 2m in length
* Explosion-proof certifification
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Intelligent Density Meter Digital Densitometer Viscosity Density Meter for Diesel
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Intelligent Density Meter Digital Densitometer Viscosity Density Meter for Diesel
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Intelligent Density Meter Digital Densitometer Viscosity Density Meter for Diesel
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Intelligent Density Meter Digital Densitometer Viscosity Density Meter for Diesel
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Intelligent Density Meter Digital Densitometer Viscosity Density Meter for Diesel
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Intelligent Density Meter Digital Densitometer Viscosity Density Meter for Diesel
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
