Quick Details
-
Model Number:
-
HTS-520L8
-
Product name:
-

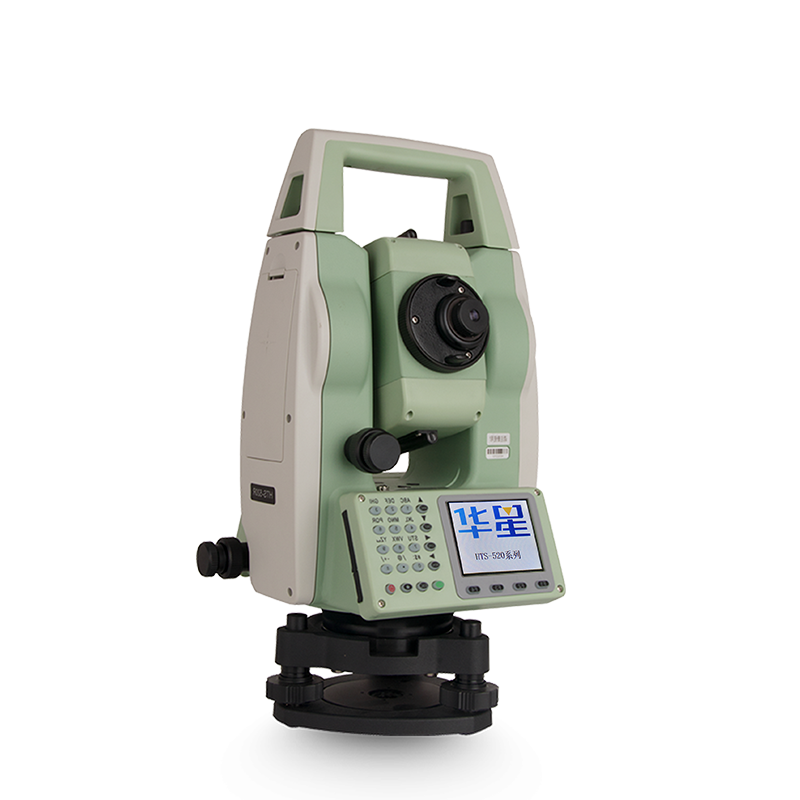

Total Station
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
hi-target
-
Model Number:
-
HTS-520L8
-
Product name:
-
Total Station
Products Description
Product Paramenters
|
model
|
HTS-520L8
|
|
|
Magnification / Resolving power
|
30x / 2.5"
|
|
|
Others
|
Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm
|
|
|
|
(1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m),
|
|
|
|
Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness
|
|
|
Angle measurement
|
|
|
|
Minimum Display
|
1''/5''(0.0002 / 0.001gon, 0.005 / 0.02mil)
|
|
|
Accuracy (ISO 17123-3:2001)
|
2"
|
|
|
Dual-axis compensator /
|
Dual-axis liquid tilt sensor, working range: ±6'
|
|
|
Collimation compensation
|
On/Off (selectable)
|
|
|
Distance measurement
|
|
|
|
Laser output*1
|
Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
|
|
|
Measuring range Reflectorless
|
0.3 to 500m (1,640ft.)
|
|
|
Measuring range Reflective sheet
|
RS90N-K: 1.3 to 500m (4.3 to 1,640ft.),
|
|
|
|
RS50N-K: 1.3 to 300m (4.3 to 980ft.),
|
|
|
|
RS10N-K: 1.3 to 100m (4.3 to 320ft.)
|
|
|
Mini prism
|
1.3 to 500m (4.3 to 1,640ft.)
|
|
|
One prism
|
1.3 to 4,000m (4.3 to 13,320ft)
|
|
|
Minimum Display
|
Fine / Coarse : 0.0001m (0.001ft. / 1/8 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable)
|
|
|
|
Coarse : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1 in.)
|
|
|
Accuracy
|
|
|
|
Reflectorless
|
(2 + 2ppm x D) mm*
|
|
|
Reflective sheet
|
(2 + 2ppm x D) mm
|
|
|
Prism
|
(1.5 + 2ppm x D) mm
|
|
|
Fine
|
0.9s (initial 1.5s)
|
|
|
Coarse
|
0.6s (initial 1.3s)
|
|
|
Tracking
|
0.4s (initial 1.3s)
|
|
|
OS, Interface and Data management
|
|
|
|
Operating system
|
Linux
|
|
|
Display / Keyboard
|
Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) /
|
|
|
|
Alphanumeric keyboard / 28 keys with backlight
|
|
|
Control panel location
|
On both faces
|
|
|
Internal memory
|
Approx. 50,000 points
|
|
|
Plug-in memory device
|
USB flash memory (max. 32GB)
|
|
|
Ultra-powerful advanced EDM
|
1000M non-prism range
|
|
|
|
6000M prism range
|
|
|
Easy Access USB2.0 memory
|
Up to 32GB storage
|
|
|
|
Environmentally protected
|
|
|
|
Compatible withindustry standard thumb driver
|
|
|
Advanced Angle encoder system
|
"best-in-class" 1'' angle accuracy
|
|
|
|
Incorporates exclussive IACS
|
|
|
Rugged,waterproof design
|
Waterproof IP66 design
|
|
|
|
Magenesium-alloy housing providing stable angle accuracy
|
|
|
|
Graphic dispaly and alphanumetric key board
|
|
|
On-board TopBasic program
|
Run onboard basic layout and topo program with the gm sereis total station
|
|
|
Advanced Accuracy, Faster Workflows
|
|
|
|
The GM-100 series also features dual axis compensation, 32 GB USB, to 10m and TSshield™ telematics for ultimate security and investment protection.
|
|
|
