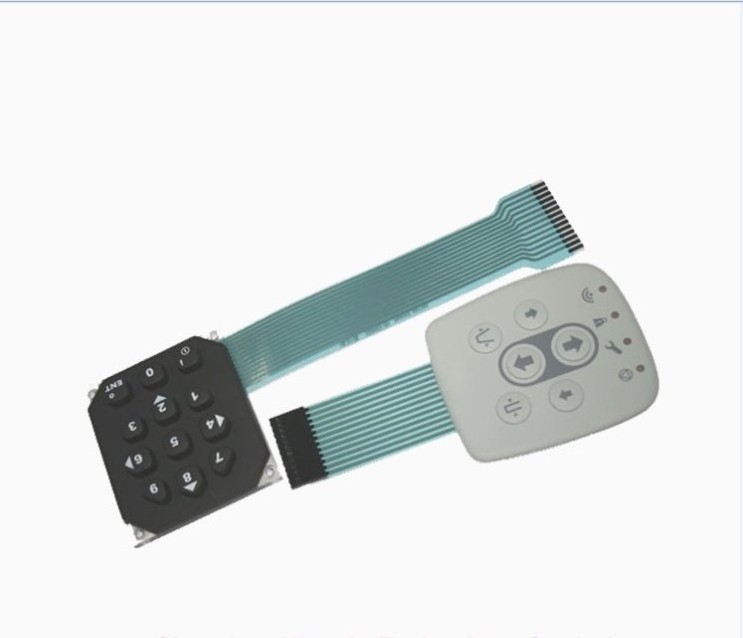

custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons
custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons

custom waterproof membrane switch membrane panel Conductive Silicone Rubber Keypad Buttons

FOB Reference Price: Get Latest Price
≥5 Pieces
US $0.36
≥500 Pieces
US $0.34
≥1000 Pieces
US $0.32
≥5000 Pieces
US $0.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Material:
PET PC PVC
Product name:
Embossed Metal Dome Membrane Switch
Color:
Panetone Color Matching System
Certification:
ISO9001:2008 /ROHS
Printing:
Silkscreen Printing
Usage:
Household
Connector:
Dupon
Life Expectancy:
1 Million Times
Circuit:
Silver Paste
Adhesive:
3M467/468MP/200MP/9080AMP/55280MP

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Yizexin
Model Number:
yizexin
Material:
PET PC PVC
Product name:
Embossed Metal Dome Membrane Switch
Color:
Panetone Color Matching System
Certification:
ISO9001:2008 /ROHS
Printing:
Silkscreen Printing
Usage:
Household
Connector:
Dupon
Life Expectancy:
1 Million Times
Circuit:
Silver Paste
Adhesive:
3M467/468MP/200MP/9080AMP/55280MP
Product Description
Specifications:
Name:
Membrane switch
Colortrans:
Green/grey/blue/white/black or according to your preference
Feature:
Enclosed and waterproof can used at any environment
Certificate:
OHSAS18001: 2007, ISO14001: 2004, ISO/TS16949: 2009, Disney
Custom Made:
OEM/customize
Material:
PC/PVC/PET/PCB/FPC/PMMA/Silicon
OperationTemperature:
-40ºC~70ºC
Resistance:
<100MΩ, 250VDC
Contact resistance:
0.5-10Ω
Operating voltage:
≤50VDC
Rated current:
25-100mA, 0-30VDC
Work current:
≤100mA
Storage Temperature:
-40ºC~+80ºC
Reliability/service life:
≥1million times
Operating humidity:
40°C, <98%RH
Rebound time:
≤ 6ms
Base Material Voltage Durable:
2000VDC
Tail flexiblility:
Any angle within 180 degree
Insulation ink voltage:
100VDC
Back Adhesive:
3M9498A 3M467 3M468 3M200
Conductive Ink:
Screen printing silver ink, Carbon ink
Application Field
Our Company

Company Introduction:

Shenzhen Yizexin Technology Co.,Ltd founded in 2004, specializing in the production of Membrane Switch, FPC, Keypad, Nameplate, Lenses, Crystal Glue Acrylic Craftwork, Cartoon Frame and Electronic products. We have large dust-free workshop, full automatic Silk Screen printing machine, Color Printing machine, CNC Engraving and Milling Machine, Numerical Control Cutting Machine, Punch and some other modern production devices. Our business cooperation partners are from all over the world including: BT, ZTE, SEMTECH, Emerson, Delong, Ferroli Motorola, Haier, Electrolux, Guangbao etc. We are authorized by Disney, Universal, Bandai(Japan), also the assigned supplier of Foxconn. We have won many certifications, Such as China famous quality products, Quality service products AAA enterprise, OHSAS18001: 2007, ISO14001: 2004, ISO/TS16949: 2009, ISO13485: 2003, TUV, SGS, ASTM-F963-16. We are Looking forward to building strong business relationships with customers all over the world with our world class quality and premium services.

Our Advantages


1.Sophisticated Experience: founded in 2004, specialized in FPC nameplates industry, with strong and powerful background, our dust-free factory is authorized by Bandai, Disney and Universal


2. Reliable Quality: Trustworthy manufacturer with a full set of qualifications and certificates, factory certificates: ISO9001, SGS, BV, TUV...,product certificates: CE, CCC, FCC, RoHS.


3. Wide Product Range: We own a full set of equipments, with abundant product line in three main sector: nameplates, gifts and electronic products

Certifications
Our Partners
Packing & Delivery
Packing:
Packed in Paper Carton or according to customer's request
Delivery:
Sample:5-7 days, Bulk: 7-9 days
Courier:
DHL, UPS, FedEx, TNT, EMS
