Quick Details
-
Brand Name:
-
Kelefu
-
Dimension(L*W*H):
-
Depend on model
-
Weight:
-
8000 KG
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
12 months
-
Product name:
-
Jaw Crusher Machine
-
Max feeding size:
-
200-1020mm
-
After sale Service:
-
24 Hours Service
-
Price:
-
Lowest
-
Discharge size:
-
Adjust Based
-
Quality:
-
High-Quality
-
Installation:
-
Under Technical Guidance
-
Output size:
-
10-400mm
-
Material:
-
Q235 Steel
-
Keyword:
-
Jaw Crusher Crusher Jaw
Quick Details
-
Application:
-
stone,ore,coal,sand
-
Capacity(t/h):
-
30-1250TPH
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kelefu
-
Dimension(L*W*H):
-
Depend on model
-
Weight:
-
8000 KG
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
12 months
-
Product name:
-
Jaw Crusher Machine
-
Max feeding size:
-
200-1020mm
-
After sale Service:
-
24 Hours Service
-
Price:
-
Lowest
-
Discharge size:
-
Adjust Based
-
Quality:
-
High-Quality
-
Installation:
-
Under Technical Guidance
-
Output size:
-
10-400mm
-
Material:
-
Q235 Steel
-
Keyword:
-
Jaw Crusher Crusher Jaw

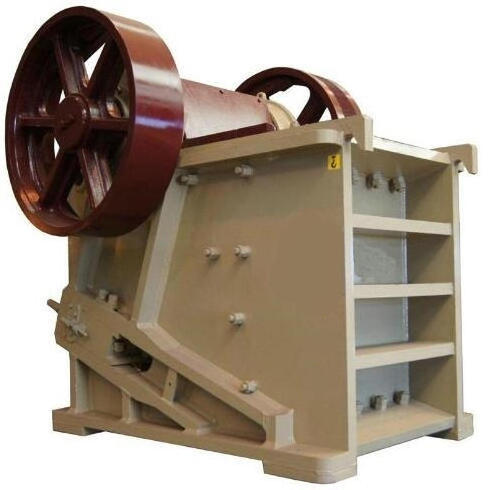

Jaw crusher is a rock and mineral processing equipment, which can be used for coarse and medium crushing of hard and highly
abrasive ores and rocks. High crushing efficiency, low investment cost, long service life and stability.
abrasive ores and rocks. High crushing efficiency, low investment cost, long service life and stability.
working principle
Working Principles:
1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.
calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, tablite, ceyssatite, barite, gypsum, alunite, black lead, fluorite, phosphate rock, potassium ore, floatstone,
copper mine,quartz,marble.
|
Model
|
Max feeding size(mm)
|
discharging size range(mm)
|
capacity
(t/h)
|
powder(kw)
|
Dimension(mm)
|
weight
(t)
|
|
PE150×250
|
125
|
10-40
|
1-3
|
.5
|
720×660×850
|
2.8
|
|
PE250×400
|
210
|
20-60
|
5-21
|
6P15
|
1300×1090×1270
|
2.8
|
|
PE400×600
|
340
|
40-100
|
16-64
|
6P30
|
1730×1730×1630
|
7
|
|
PE500×750
|
450
|
50-100
|
40-110
|
6P55
|
1980×2080×1870
|
12
|
|
PE600×900
|
500
|
150-200
|
80-240
|
6P55
|
2070×2000×1920
|
15.8
|
|
PE750×1060
|
630
|
80-140
|
110-320
|
8P110
|
2660×2430×2800
|
29
|
|
PE800×1060
|
640
|
130-190
|
130-330
|
8P110
|
2740×2430×2800
|
29.8
|
|
PE900×1060
|
685
|
230-290
|
230-390
|
8P110
|
2870×2420×2940
|
333
|
|
PE900×1200
|
750
|
95-165
|
220-380
|
8P110
|
3380×2870×3330
|
52
|
|
PE1000×1200
|
850
|
195-265
|
315-500
|
8P110
|
3480×2876×3330
|
55
|
|
PE1200×1500
|
1020
|
150-350
|
400-800
|
6P 160-220
|
4200×3300×3500
|
100.9
|
|
PE1500×1800
|
1200
|
220-350
|
500-1000
|
8P 280-355
|
5160×3660×4248
|
139
|
|
PEX-150×750
|
120
|
18-48
|
8-25
|
4P 15
|
1200×1530×1060
|
3.8
|
|
PEX-250×750
|
210
|
25-60
|
13-25
|
6P 22
|
1380×1750×1540
|
5.5
|
|
PEX-250×1000
|
210
|
25-60
|
16-52
|
6P 30
|
1560×1950×1390
|
7
|
|
PEX-250×1200
|
210
|
25-60
|
20-61
|
6P 37
|
2140×1660×1500
|
9.7
|
|
PEX-300×1300
|
250
|
20-90
|
16-105
|
6P 55
|
2720×1950×1600
|
15.6
|
|
PEX-500×1500
|
350
|
25-120
|
50-160
|
6P 90
|
2360×2660×2105
|
20
|
