Quick Details
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
520*360*280 mm
-
Year:
-
2022
-
Power (kW):
-
0 kW
-
Weight (KG):
-
15 KG
-
Products Name:
-
Conveyor Belt Splice Tools Box
-
Application:
-
Rubber Belt Hot Splice and Repair
-
Raw material:
-
Aluminum Alloy
-
Marketing Type:
-
New Product 2022
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANTAI
-
Core Components:
-
Splice Tools
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
520*360*280 mm
-
Year:
-
2022
-
Power (kW):
-
0 kW
-
Weight (KG):
-
15 KG
-
Products Name:
-
Conveyor Belt Splice Tools Box
-
Application:
-
Rubber Belt Hot Splice and Repair
-
Raw material:
-
Aluminum Alloy
-
Marketing Type:
-
New Product 2022

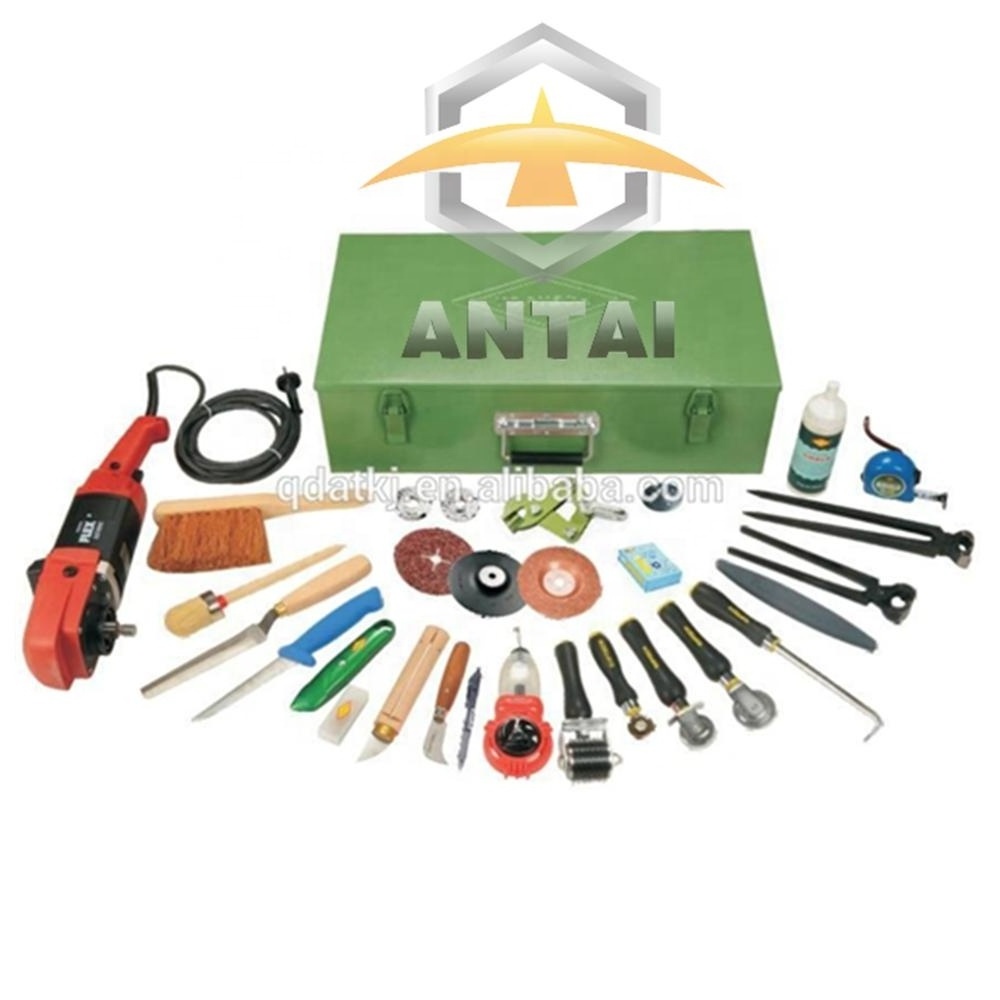

ANTAI Conveyor Belt Splicing Kits Tools
New Type Belt Splicing Tools
More Tools,Insulated Waterproof Tools Box With Same Price. √
Conveyor belt vulcanizing press
Conveyor belt vulcanizing press is the widest used conveyor belting equipment, its only need a few steps to confirm press model.
The proper model selection for a sectional vulcanizier depends on determining dimensions A and B(see diagram above)
A— the platen length(A) is calculated by adding to the belt manufacturer’s recommended splice length.
6 inches(150mm) for fabrics belt
14 inches(355mm) for steelcord belt
B- the platen width(B) which includes the bias angle, it determined by adding to the belt width
6 inches(150mm) for fabric belt
8 inched(200mm) for steelcord belt
To this figure multiply by:
1.07 for 22 degree bias angle
1.05 for 17 degree bias angle
Dimensions A and B represent the outside platen dimensions. Scan down the list below until you arrive at a platen size the corresponds with your figures.
If the size you require is not listed below our Sales department will be happy to recommend a suitable size, rectangular configurations and multiple platen arrangements are also available upon request.
The following is only a small sampling of sectional vulcanizing presses available form Antai Machinery. Contact us for more information.
100 p.s.i(7kg/cm sq.) units suitable for splicing fabric ply belting.200psi 14 kg/cm sq. units suitabke for splicing steel-cord belting
Specifications are subject to change without notice.
Build-in cooling device on all vulcanizer.
Total weights include electrical control panel, cable sets are set-up templates for all models.
All models include electronic fluid pressure pump
Temperature adjustable between 0-199 Degree.C
Sectional vulcanizers are build on a 18 degree bias
Custom sizes, rectangular configurations and multiple platen arrangements available on request.
|
Product name |
Sectional Conveyor Belt Vulcanizing Press |
|
Controller |
ZLJ Standard Automatic Control Box |
|
Cross Beam |
High-strength 7075 aluminum alloy beams, light weight and strong |
|
Pressure System |
Flexible pressure bag provide uniform pressure suit for water and air, save 80% weight |
|
Heating System |
Almex similer heating element provide uniform temperature |
|
Cooling |
Build in quick cooling device suit for water and air |
|
Payment Method: |
T/T,LC,West Union, Paypal. |
|
Package |
Fancy paking by wooden box, suit for long distance transpot |
|
Lead time |
25 days after received the deposit |
|
Delivery Mode: |
Normal order by Sea /Vessel, Emergency order by express etc. |
