Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wity
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
10000*4300*2300mm
-
Weight:
-
12000kg
-
PLC Brand:
-
Others
-
Cutting style:
-
Rotary cutting
-
Cutting width:
-
400~1700mm
-
Max. diameter of material:
-
1600mm
-
Cutting length:
-
450-1450mm
-
Paper thickness range:
-
100~500gsm
-
Max cutting frequency:
-
300pcs/min
-
Cutting Accuracy:
-
±0.4mm
-
Max height of stacking:
-
1200mm
Quick Details
-
Type:
-
Sheeting Machine
-
Production Capacity:
-
300m/min
-
Max. workable width:
-
1700mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wity
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
10000*4300*2300mm
-
Weight:
-
12000kg
-
PLC Brand:
-
Others
-
Cutting style:
-
Rotary cutting
-
Cutting width:
-
400~1700mm
-
Max. diameter of material:
-
1600mm
-
Cutting length:
-
450-1450mm
-
Paper thickness range:
-
100~500gsm
-
Max cutting frequency:
-
300pcs/min
-
Cutting Accuracy:
-
±0.4mm
-
Max height of stacking:
-
1200mm
Product Description

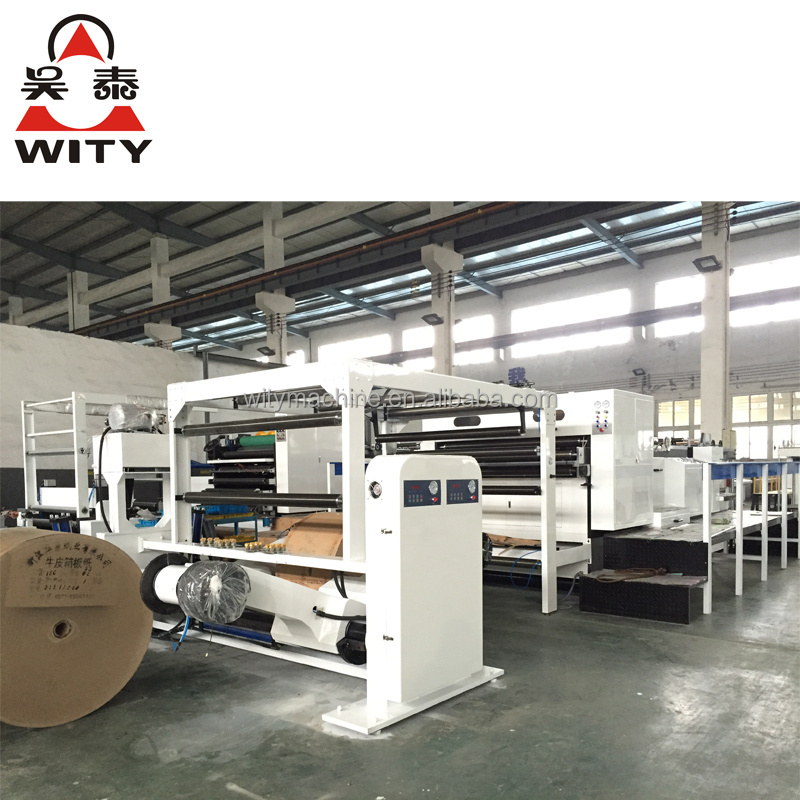

GQD-1700Hob type Sheet Cutting Machine
Features
a.Servo motor driving system for constant length control ;
b.Rotary blade cutting style;
d.Person-machine interface operation (touch screen);
c.Center computer control(PLC) for main electric control;
f.International advanced technology paper corner adjustment to ensure high accuracy angle;
e.Long service life cutting blade material imported from German;
h.Step-less adjustment for paper feeding and to ensure single sheet feeding and overlapping feeding paper smoothly;
g.Reasonable structure paper flatten for reversing bend so as to ensure the flat degree of paper;
i.Automatic patting for paper collecting system, and automatic counting and inserting label to ensure the heaping in order.
Specification
|
Cutting style
|
Rotary cutting (upper blade rotary, lower blade fixed)
|
|
Cutting width
|
400~1700mm
|
|
Max. diameter of material
|
∮1600mm
|
|
Cutting length
|
450-1450mm
|
|
Paper thickness range
|
100~500gsm
|
|
Max cutting frequency
|
300pcs/min
|
|
Max speed
|
≤300m/min
|
|
Cutting speed
|
≤130m/min (100-150gsm) (double unwinding)
|
|
|
≤300m/min (150-500gsm) (single unwinding)
|
|
Cutting Accuracy
|
±0.4mm
|
|
Max height of stacking
|
1200mm
|
|
Power supply
|
AC 380V/3P/50Hz
|
|
Total power
|
28KW
|
|
Overall dimensions
(L×W×H) |
10000×4300×2300mm
1200×2280×1400mm 1200×2580×1400mm |
|
Weight
|
12000kg
|
Details Images
Hydraulic shaftless double station unwinder
Paper conveying
Anti paper bending system (flatting system)
Sheeting system
and paper conveying system
Stacking system
Packing & Delivery
