- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/50HZ
-
Dimension(L*W*H):
-
267*215*75CM
-
Application:
-
woodworker, wood board cutting
-
Weight (KG):
-
135 KG
-
Power (kW):
-
5.4KW
-
Max.Cutting Height at 90°(mm):
-
40mm
-
Max.Cutting Height at 45°(mm):
-
20mm
-
Max. Length of Workpiece (mm):
-
2500mm
-
Marketing Type:
-
Hot Product 2023, Ordinary Product
-
Product name:
-
Wood Saw Wood Cut
-
Function:
-
Wood Cuting
-
Speed:
-
5000r/min
-
Saw blade height:
-
0-85mm
-
Saw blade size:
-
255*25.4*2.8mm
-
Saw blade angle:
-
0-45
-
Cutting depth:
-
65-90mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZDS
-
Usage:
-
woodworking
-
Voltage:
-
220V/50HZ
-
Dimension(L*W*H):
-
267*215*75CM
-
Application:
-
woodworker, wood board cutting
-
Weight (KG):
-
135 KG
-
Power (kW):
-
5.4KW
-
Max.Cutting Height at 90°(mm):
-
40mm
-
Max.Cutting Height at 45°(mm):
-
20mm
-
Max. Length of Workpiece (mm):
-
2500mm
-
Marketing Type:
-
Hot Product 2023, Ordinary Product
-
Product name:
-
Wood Saw Wood Cut
-
Function:
-
Wood Cuting
-
Speed:
-
5000r/min
-
Saw blade height:
-
0-85mm
-
Saw blade size:
-
255*25.4*2.8mm
-
Saw blade angle:
-
0-45
-
Cutting depth:
-
65-90mm
Products Disply

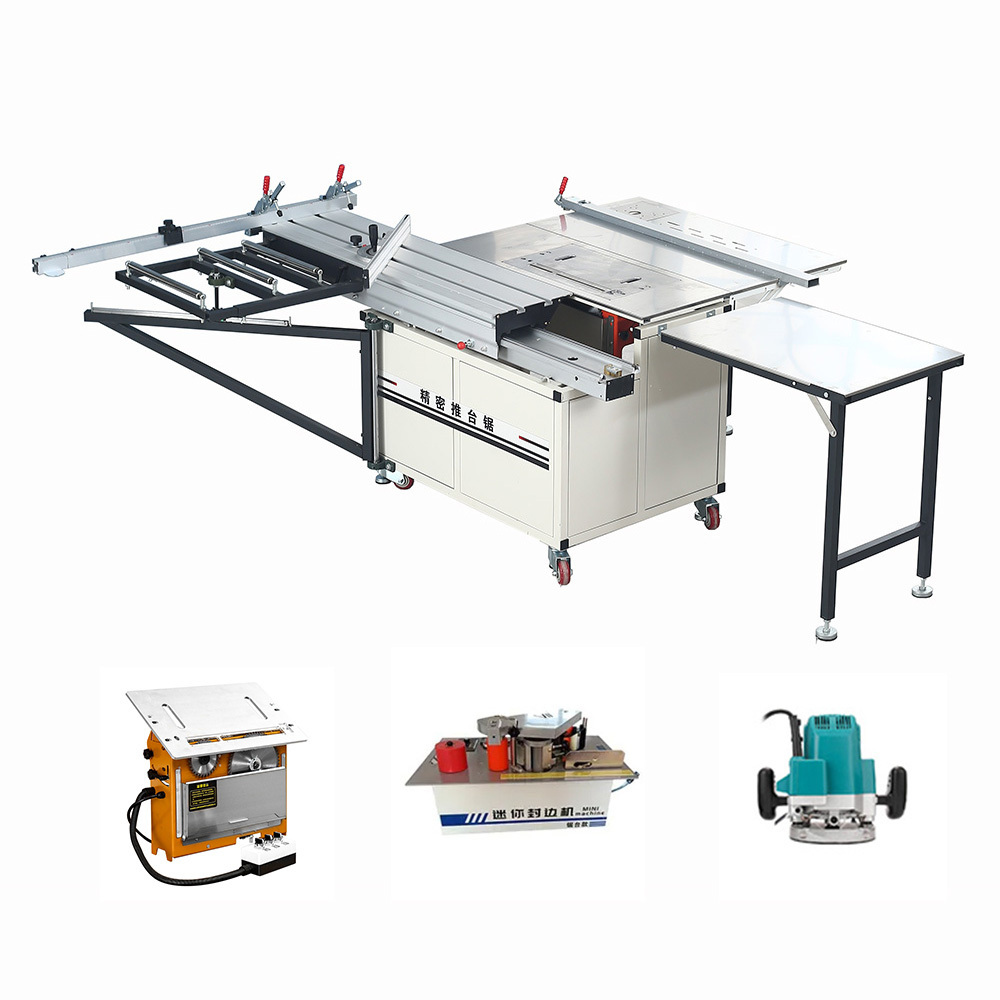

1. ZDS3124 miniature precision sliding table saw, precision rocker structure, sawing stability.
2. It adopts the same special linear guide as the large precision saw, which is stable and durable.
3. Equipped with a reversible telescopic ruler, a vertical backer, and an angle-adjustable oblique push rule.
4. It can cut across and bevel at any angle, and the cutting board is accurate without edge collapse.
5. Small and portable, it can be pushed into the stairwell and the entrance door.
Product Parameters
|
model
|
ZDS3124
|
|
table size
|
120*95cm
|
|
folding dimension
|
72*95*75cm
|
|
expanded size
|
267*215*75cm
|
|
guide rail size
|
32*16*120cm
|
|
Type of rail
|
European guide
|
|
machine weight
|
135kg
|
|
flip plate
|
50*30cm
|
Details Images
Precision rocker arm structure, strong bearing capacity, stable push and pull.
Stainless steel countertop, beautiful, wear-resistant,
320*160mm The special linear precision guide rail has a long service life.
The aluminum alloy backer can be quickly disassembled, which is convenient for sawing in different sizes.
Strong frame structure box, reinforced universal wheels, easy to move.
Fast pressing device, the board is not easy to move when sawing, and it is safer.
Compatible tools
|
Name
|
|
Manually lift dust-free saw
|
Manual lift brushless saw
|
Electric lift dust-free saw
|
Electric Lift Brushless Saw
|
|
|
Model
|
|
ZDS10
|
ZDS11
|
ZDS20
|
ZDS21
|
|
|
Working voltage
|
|
220v/50Hz
|
220v/50Hz
|
220v/50Hz
|
220v/50Hz
|
|
|
Big saw power
|
|
2600w
|
1600w
|
2600w
|
1600w
|
|
|
Small saw power
|
|
1600w
|
550w
|
1600w
|
550w
|
|
|
Big saw speed
|
|
4500r/min
|
4500r/min
|
4500r/min
|
4500r/min
|
|
|
Small saw speed
|
|
13000r/min
|
5500r/min
|
13000r/min
|
5500r/min
|
|
|
Vacuuming power
|
|
1200w
|
1200w
|
1200w
|
1200w
|
|
|
Overall size
|
|
50*30*35cm
|
50*30*35cm
|
50*30*35cm
|
50*30*35cm
|
|
|
Weight
|
|
23kg
|
23g
|
26kg
|
26kg
|
|
|
Saw blade size
|
Big saw
|
8/9inch
|
8/9inch
|
8/9inch
|
8/9inch
|
|
|
|
Small saw
|
4inch
|
5inch
|
4inch
|
5inch
|
|
|
Lifting height method
|
Big saw
|
Manually
|
Manually
|
Electric
|
Electric
|
|
|
|
Small saw
|
Manually
|
Manually
|
Manually
|
Manually
|
|
|
Motor
|
|
Hanchuan Copper core motor
|
Custom Brushless Motors
|
Hanchuan Copper core motor
|
Custom Brushless Motors
|
|
|
Name
|
mini edge banding machine
|
|
Model
|
ZDSF50
|
|
Edge banding type
|
line, curve
|
|
Rated voltage
|
220v
|
|
Strip thickness
|
0.5-2mm
|
|
Sheet thickness
|
10-50mm
|
|
Glue capacity
|
1000ml
|
|
Overall size
|
50*30*27cm
|
|
Machine weight
|
13.5kg
|
|
Name
|
Electric Router
|
|
Model
|
ZDSER12
|
|
Rated voltage
|
220V-230V 50/60Hz
|
|
Input power
|
1650W
|
|
No Load speed
|
23000r/min
|
|
Collet chuck capacity
|
φ12mm
|
