Quick Details
-
Supply power:
-
DC10-30V
-
Working Temperature:
-
-25℃~70℃
-
SN:
-
0.8~15mm,customized
-
Output:
-
DC 3 wires NPN\PNP NC
-
Installation method:
-
Flush/Non-Flush
-
Certificate:
-
CE,ISO9001
-
Housing:
-
SS,H62 nickel plated brass,PBT,PTFE
-
Switch frequency:
-
100HZ
-
Product name:
-
capacitive proximity sensor,capacitive sensor
-
Protection grade:
-
IP67
Quick Details
-
Model Number:
-
K4-M12T3L2-Y6/X7/Y7
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Zenlink
-
Supply power:
-
DC10-30V
-
Working Temperature:
-
-25℃~70℃
-
SN:
-
0.8~15mm,customized
-
Output:
-
DC 3 wires NPN\PNP NC
-
Installation method:
-
Flush/Non-Flush
-
Certificate:
-
CE,ISO9001
-
Housing:
-
SS,H62 nickel plated brass,PBT,PTFE
-
Switch frequency:
-
100HZ
-
Product name:
-
capacitive proximity sensor,capacitive sensor
-
Protection grade:
-
IP67

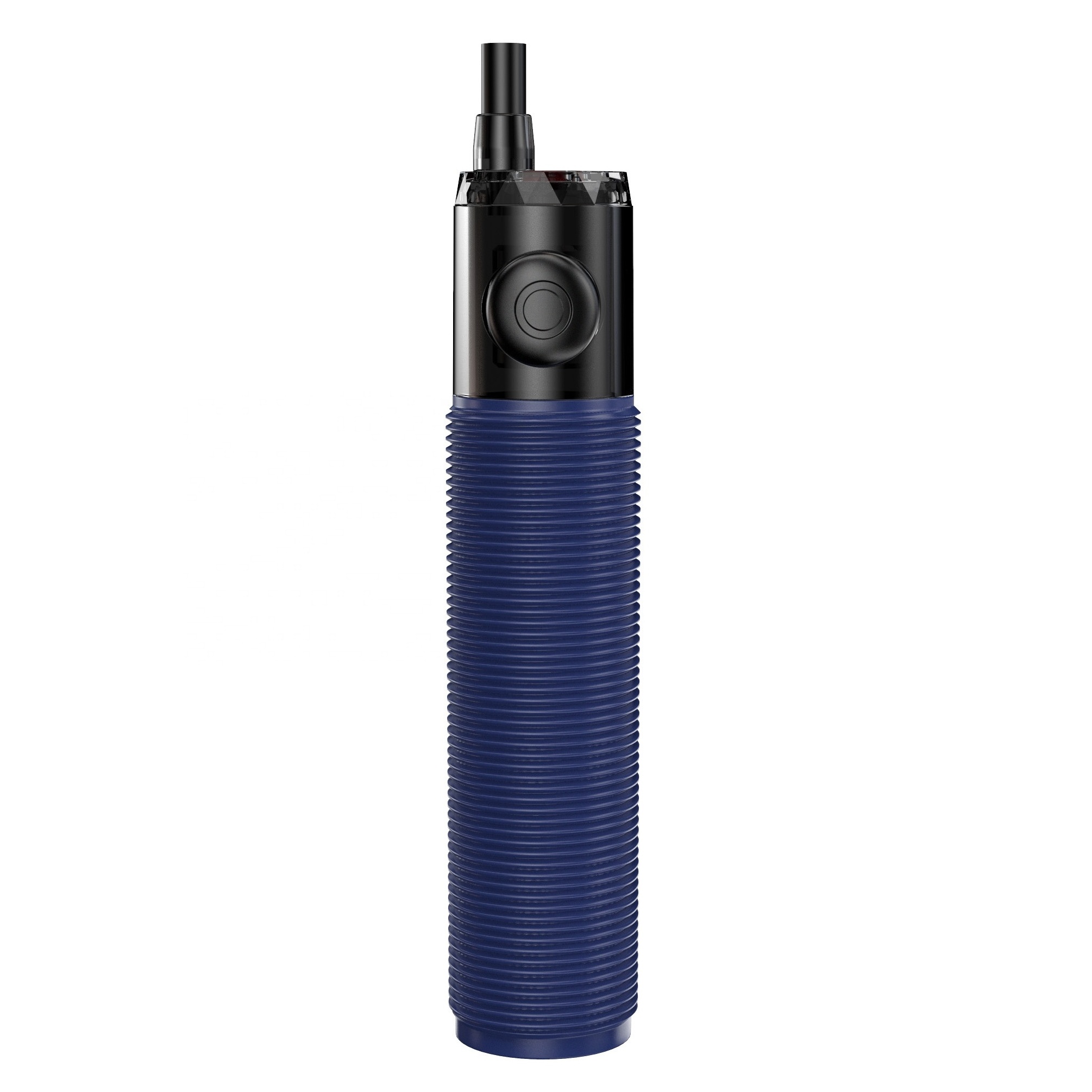

non-conductive long range proximity sensor m30 IP67 waterproof capacitive sensor switch
With more flexible and diverse applications,the capacitive sensors can detect almost all media no matter it is metal or non-metallic.
Dedicated circuit for reliable detection
Multi-size optional,customized requirements acceptable!
The good method to dectet both metal and non-metallic media
Trust us
Sometimes,in the industrial field, the measured object is not fixed, which requires the special sensors measuring both metal and non-metallic media
In this case,we developed a special electrostatic capacitive sensor with very stable and reliable performance
Features
1.Long sensing distance (1.5 to 2 times longer sensing distance guaranteed compared to existing models)
2.Exclusively designed IC for improved the noise resistance
3.Inside surge protection,reverse polarity protection,overcurrent protection
4.Long use-life cycle and high reliability,easy install,enconomic price
5. Red LED status indication,easy to confirm work situation
6.Protection structure IP67(IEC standard)
7.Replaceable for micro switches and limit switches
Technical data
| Detectable object: | all media with static electricity |
| Size | Customized from φ6.5mm-20mm M8-M30 |
| Installation method | Flush/non-flush |
| Sn(rated detecting distance) | 1mm-15mm |
| Reliable detecting distance | 0mm-12mm |
| Output signal | DC 3 wires NPN\PNP NC or NO;/AC 2 wires NO or NC |
| Consumption current | DC< 10mA\AC< 10mA |
| Supply power | DC10-30V |
| Lord current | DC< 200mA\AC< 300mA |
| Output voltagc drop | DC< 1.5V \AC< 6V |
| Response frequency | 150HZ(DC) 25HZ(AC) |
| Short circuit/reverse protection | Yes |
| Indicator | Red Led |
| Shell material | SS,H62 nickel plated brass,PBT,PTFE |
| Working environment temperature | -25º C~70º C |
| Detection surface material | PBT,PTFE |
| Protection Grade | IP67 |
| Connection method | PVC cable,air plug |
| Certificate | CE |
