Quick Details
-
Power:
-
12kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orient Ant
-
Maximum Digging Height:
-
2640 mm
-
Maximum Digging Depth:
-
1640 mm
-
Machine Weight:
-
900 kg
-
Max Digging Radius:
-
2890 mm
-
Rated Speed:
-
0-4 km/h
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
1 Ton Mini Excavator
-
Keywords:
-
China Small Crawler Excavator
-
Certification:
-
CE ISO EPA Euro V
-
Feature:
-
Full Hydraulic Control System
-
Accessories:
-
Hydraulic Hammer, Rake, Tilting Buckets, Hydraulic Thumb
-
Overall dimension( LxWxH):
-
2210x930x2220 mm
-
Track Length:
-
1215 mm
-
Track Height:
-
320 mm
-
Max. Dumping Height:
-
2000 mm
-
Application:
-
Construction Digging
Quick Details
-
Operating Weight:
-
3ton, 1ton, 2ton, 0.8 TON, 1.8Ton, 1.2ton, 1.5TON
-
Bucket capacity:
-
0.025-0.65m3
-
Engine Brand:
-
Koop/Changchai
-
Power:
-
12kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orient Ant
-
Maximum Digging Height:
-
2640 mm
-
Maximum Digging Depth:
-
1640 mm
-
Machine Weight:
-
900 kg
-
Max Digging Radius:
-
2890 mm
-
Rated Speed:
-
0-4 km/h
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
1 Ton Mini Excavator
-
Keywords:
-
China Small Crawler Excavator
-
Certification:
-
CE ISO EPA Euro V
-
Feature:
-
Full Hydraulic Control System
-
Accessories:
-
Hydraulic Hammer, Rake, Tilting Buckets, Hydraulic Thumb
-
Overall dimension( LxWxH):
-
2210x930x2220 mm
-
Track Length:
-
1215 mm
-
Track Height:
-
320 mm
-
Max. Dumping Height:
-
2000 mm
-
Application:
-
Construction Digging

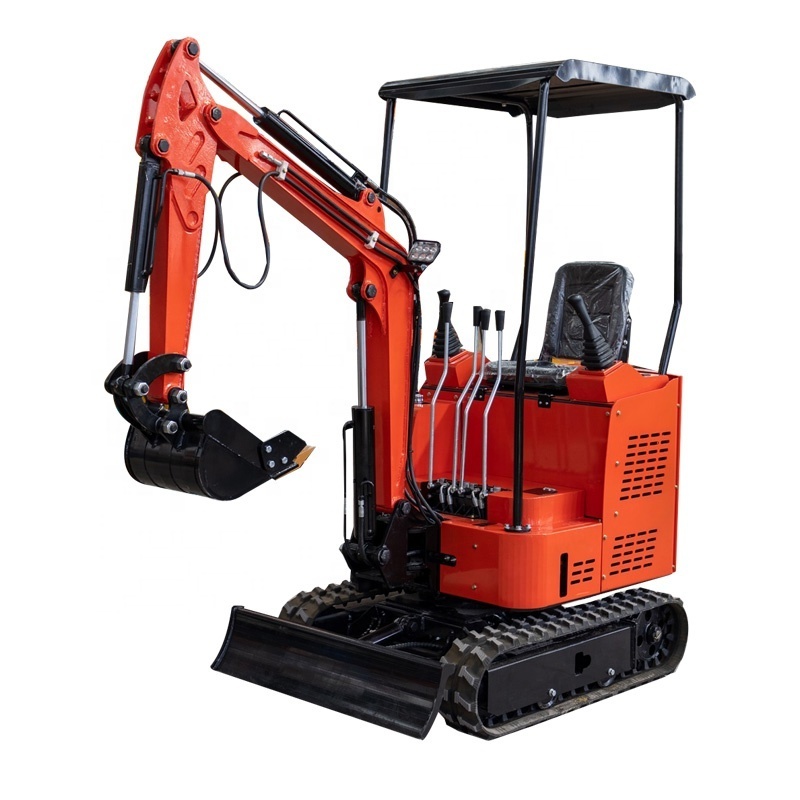

Product Description
Mini excavator's ability to move into difficult areas of sites makes it the ideal machine for digging holes in, particularly
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
Mini excavators make many construction tasks safer and more efficient. Their small size allows for quick movement into awkward areas that can speed up many jobs, including:
* Plowing snow
* Digging holes
* Making small trenches
* Demolishing small structures
* Repairing sewer lines
* Landscaping work
* Digging swimming pools or garden ponds
* Plowing snow
* Plowing snow
* Digging holes
* Making small trenches
* Demolishing small structures
* Repairing sewer lines
* Landscaping work
* Digging swimming pools or garden ponds
* Plowing snow
Product Paramenters
|
Specifications of Performance
|
|
|
|
Operation Weight
|
900KG
|
|
|
Power
|
12HP
|
|
|
Bucket Digging Force
|
10.3KN
|
|
|
Engine Type
|
KOOP 192F
|
|
|
Working Device
|
Backhoe
|
|
|
Bucket Capacity
|
0.025M3
|
|
|
Main Dimension
|
|
|
|
Track Distance
|
2550MM
|
|
|
Track Height
|
320MM
|
|
|
Track Width
|
180MM
|
|
|
Track Length
|
1235MM
|
|
|
Chassis Width
|
930MM
|
|
|
Min. Ground Clearance
|
380MM
|
|
|
Operating Range
|
|
|
|
Max. Digging Depth
|
1600MM
|
|
|
Max. Digging Height
|
2490MM
|
|
|
Max. Digging Distance
|
2400MM
|
|
|
Max. Dumping Height
|
1750MM
|
|
|
Min. Swing Radius
|
1190MM
|
|
|
Travel Motor
|
Eaton
|
|
