Quick Details
-
Model Number:
-
RG-950LC
-
Maximum Current:
-
50A
-
Product name:
-

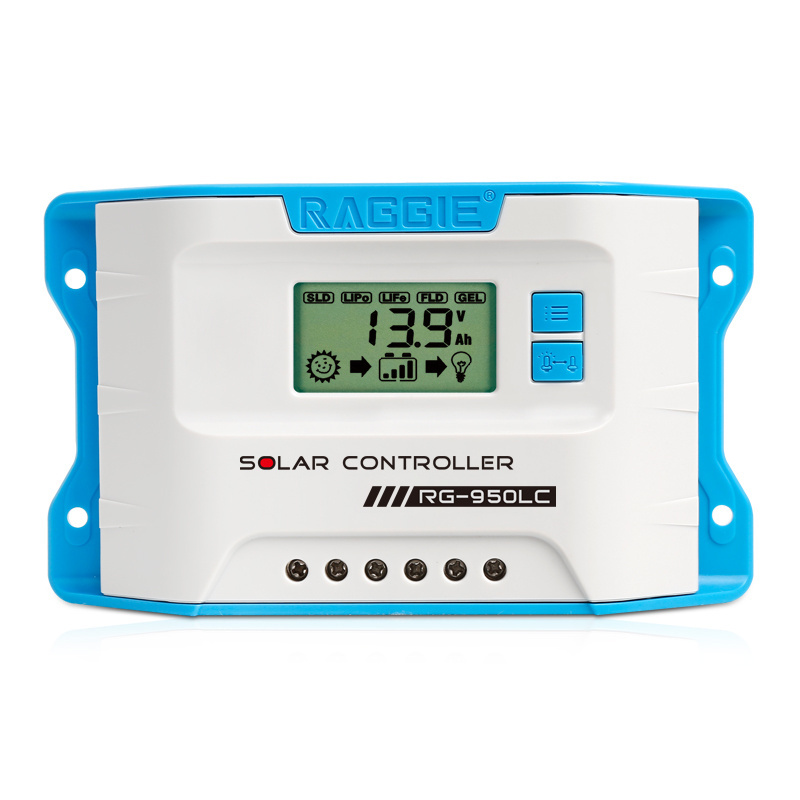

RAGGIE 50A 12V PWM Solar Charge Controller With LCD Screen
-
Charge mode:
-
PWM Mode
-
Warranty:
-
1 Year
-
Display:
-
LED Display
-
USB function:
-
2PCS
-
Color:
-
White
Quick Details
-
Application:
-
Charger Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RAGGIE
-
Model Number:
-
RG-950LC
-
Maximum Current:
-
50A
-
Product name:
-
RAGGIE 50A 12V PWM Solar Charge Controller With LCD Screen
-
Charge mode:
-
PWM Mode
-
Warranty:
-
1 Year
-
Display:
-
LED Display
-
USB function:
-
2PCS
-
Color:
-
White
Product Description
RAGGIE 50A 12V PWM Solar Charge Controller With LCD Screen
| RG-920LC | RG-930LC | RG-950LC | RG-960LC | ||
| Current | 10A | 20A | 30A | 50A | 60A |
| system voltage | 12/24v AUTO | ||||
| Battery input voltage | 9v~32v | ||||
| Max pv open circuit voltage | 50v | ||||
| Battery type | Usr(default)/sealed/gel/flooded | ||||
| Boost charging voltage | Usr(default)/sealed:14.4v/gel: 14.2v/flooded:14.6v | ||||
| Float charging voltage | Usr(default)/sealed/gel/flooded: 13.8v | ||||
| Self consumption | 11.5mA/12V;13.5mA/24V | ||||
| Equalized voltage | Usr(default)/sealed:14.6v/gel: 13.8v/flooded:14.8v | ||||
| Charging circuit voltage drop | 0.25v | ||||
| Discharging circuit voltage drop | 0.12v | ||||
| USB output | 5V DC/1.2A(TOTAL) | ||||
| G.W | 19kg | 17.3kg | 16.05kg | 17.17kg | 18.85kg |
| Pcs/ctn | 50 | 40 | 30 | 24 | |
| Carton dimension | 528*392*262 | 528*413*218 | 613*453*168 | 574*453*210 | |
