Quick Details
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
740 mm
-
Spindle Motor Power(kW):
-
0.55
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLDE
-
Model Number:
-
HQ800
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1440x5804x1140
-
Weight (KG):
-
275 KG
-
Marketing Type:
-
New Product 2023
Quick Details
-
Max. Length of Workpiece (mm):
-
800
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
740 mm
-
Spindle Motor Power(kW):
-
0.55
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLDE
-
Model Number:
-
HQ800
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1440x5804x1140
-
Weight (KG):
-
275 KG
-
Marketing Type:
-
New Product 2023
Products Description
Features.

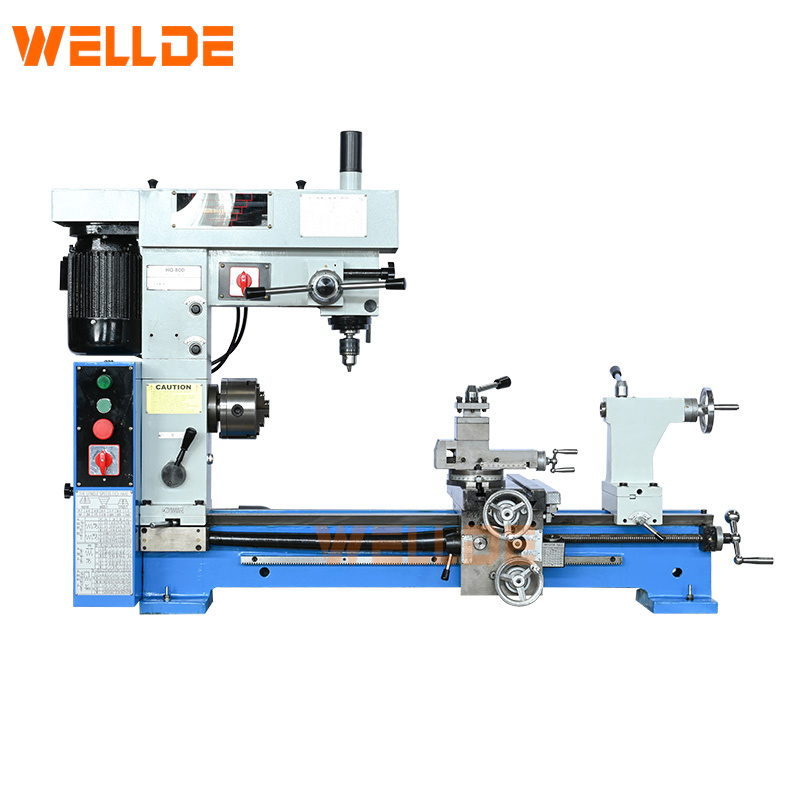

A kind of combination machines with turning, miling, drilling and threading.
Metric or imperical thread cutting.
Suitable for processing metal, wood and other materials.
Exceilent advantage of various functions, small occupation and economlization.
Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making, education training, household utensils'making,etc.
Metric or imperical thread cutting.
Suitable for processing metal, wood and other materials.
Exceilent advantage of various functions, small occupation and economlization.
Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making, education training, household utensils'making,etc.
Specification
|
Specifications
|
|
HQ500
|
HQ800
|
|
|
Turning
|
Swing over bed
|
Φ 420mm
|
|
|
|
|
Distance between centers
|
500mm
|
800mm
|
|
|
|
Max. longitudinal travel
|
440mm
|
740mm
|
|
|
|
Max. cross travel
|
200mm
|
|
|
|
|
Taper of spindle
|
M. T. 4
|
|
|
|
|
Spindle hole
|
Φ 28mm
|
|
|
|
|
Step of spindle speed
|
7 steps
|
|
|
|
|
Range of spindle speed
|
160-1360RPM
|
|
|
|
|
Barrel travel
|
70mm
|
|
|
|
|
Taper of center
|
M. T. 3
|
|
|
|
|
Metric thread range
|
0.2-6mm
|
|
|
|
|
Inch thread range
|
4-120T. P. I
|
|
|
|
|
Longitudinal range of automatic feeding
|
0.05-0.35mm/0.002-0.014＂
|
|
|
|
|
Cross range of automatic feeding
|
0.05-0.35mm/0.002-0.014＂
|
|
|
|
Drilling & Milling
|
Max. drilling capacity
|
Φ 22mm
|
|
|
|
|
Worktable size (L*W)
|
475× 160mm²
|
|
|
|
|
Max. end mill
|
Φ28mm
|
|
|
|
|
Max. face mill
|
Φ 80mm
|
|
|
|
|
Distance between spindle center and column
|
285mm
|
|
|
|
|
Distance between spindle and worktable
|
306mm
|
|
|
|
|
Headstock travel of up and down
|
110mm
|
|
|
|
|
Spindle taper
|
M. T. 3
|
|
|
|
|
Step of spindle speed
|
16
|
|
|
|
|
Range of spindle speed
|
120-3000r. p. m
|
|
|
|
|
Swivel degree of headstock
|
± 360°
|
|
|
|
Motor
|
Motor power
|
0.55Kw
|
|
|
|
Shipping data
|
Packing size
|
1130×580×1100mm(HQ800:1430×580×1100mm)
|
|
|
|
|
N. weight/G. weight
|
245kg/280kg(HQ800:275kg/325kg)
|
|
|
