Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XUGONG
-
Weight:
-
15000 kg
-
Dimension(L*W*H):
-
8900x2625x3420mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Yellow
-
Engine Model:
-
SC7H180.1G3
-
Tyre Model:
-
17.5-25
-
Maximum depth of cutting:
-
500mm
-
Maximum lift above ground:
-
450mm
-
Maximum blade position angle:
-
90°
-
Blade cutting angle:
-
28°-70°
-
Circle reversing rotation:
-
360°
-
Moldboard width X height:
-
3965*610mm
Quick Details
-
Forward Speed(km/h):
-
38
-
Engine Brand:
-
SHANGCHAI
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XUGONG
-
Weight:
-
15000 kg
-
Dimension(L*W*H):
-
8900x2625x3420mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Yellow
-
Engine Model:
-
SC7H180.1G3
-
Tyre Model:
-
17.5-25
-
Maximum depth of cutting:
-
500mm
-
Maximum lift above ground:
-
450mm
-
Maximum blade position angle:
-
90°
-
Blade cutting angle:
-
28°-70°
-
Circle reversing rotation:
-
360°
-
Moldboard width X height:
-
3965*610mm

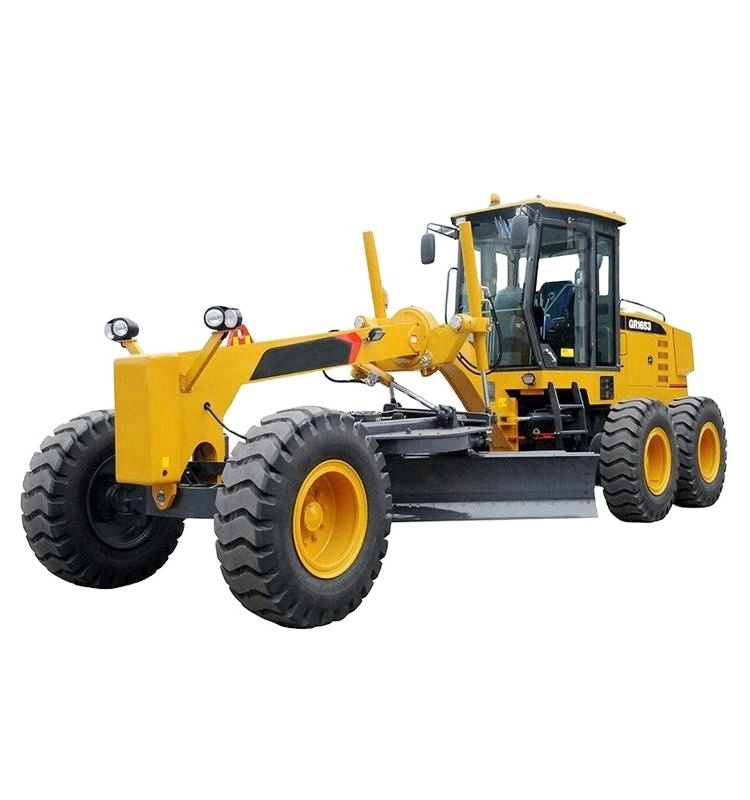

160HP~180HP Mini Motor Grader GR1653 for sale
GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..
Performance and characteristic
·New appearance design.
·The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
·The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
·The international matching hydraulic parts are adopted,with reliable operation.
·The motions of the blade are fully hydraulically controlled.
·The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
·The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
·The cab is grand and nice,with wide eyeshot and good sealing .
·The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
|
Engine model
|
SC7H180.1G3
|
|
Rated power/speed
|
128kW/2000 rpm
|
|
Dimension(LxWxH)
|
8900×2625×3420mm
|
|
Operating weight(Standard)
|
15000kg
|
|
Travelling speed ,forward
|
5,8,11,19,23,38 km/h
|
|
Travelling speed ,reverse
|
5,11,23 km/h
|
|
Tractive force(f=0.75)
|
77KN
|
|
Max. gradeability
|
20%
|
|
Tire inflation pressure
|
260 kPa
|
|
Working hydraulic pressure
|
20 MPa
|
|
Transmission pressure
|
1.3~1.8MPa
|
|
Max. steering angle of front wheels
|
±48°
|
|
Max. lean angle of front wheels
|
±17°
|
|
Max. oscillation angle of front axle
|
±15°
|
|
Max. oscillation angle of balance box
|
15
|
|
Frame articulation angle
|
±27°
|
|
Min. turning radius using articulation
|
7.3m
|
1. Spare parts: Usually, Upon receipt of payment, IN-STOCK parts will ship on or before the next business day. If not in stock, the spare parts will be dispatched within 3-5 days.
2. Whole machine: Usually, the delivery time is about 15-30 days..
3. Though we pride ourselves on fast order processing and shipping, sometimes delays may occur. Please be patient, and keep in touch with us via email.
Carton
≤60kgs/pkgs, The accessories will be packed in cartons to save your freight.
Wooden case
A large quantity of parts or fragile parts, we will consider wooden cases to avoid damage during transportation.
Container
A large quantity of goods can be shipped by container.
|
