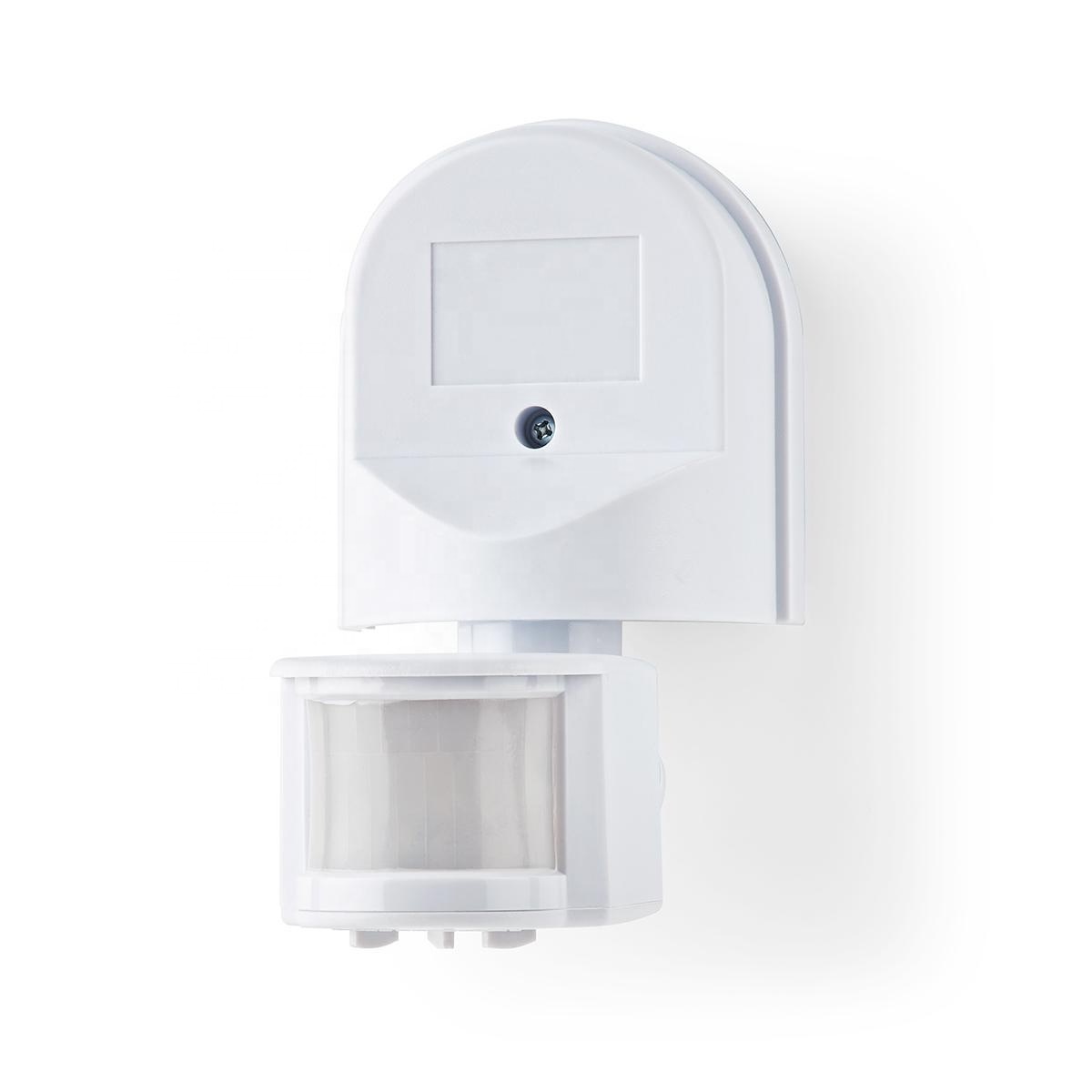

ES-P02C 180 degree Ceiling Mounted Detection distance 12M IP44 Infrared Motion Sensor Wall Sensor

ES-P02C 180 degree Ceiling Mounted Detection distance 12M IP44 Infrared Motion Sensor Wall Sensor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Description:: Infared Motion Sensor

Power Source:: 220-240V/AC

Power frequency:: 50/60HZ

Detection Range:: 180°

Time setting:: 10sec-7min,adjustable

Installation height:: 1.8-2.5m

Rated load:: 1200W -Incandscent lamp 300W -LED Lamp

Ambient light::: 10lux-2000lux, adjustable

Quick Details

Model Number:: ES-P02C

Place of Origin:: Zhejiang, China

Brand Name:: ENERGYLUX/OEM

Description:: Infared Motion Sensor

Power Source:: 220-240V/AC

Power frequency:: 50/60HZ

Detection Range:: 180°

Time setting:: 10sec-7min,adjustable

Installation height:: 1.8-2.5m

Rated load:: 1200W -Incandscent lamp 300W -LED Lamp

Ambient light::: 10lux-2000lux, adjustable

Features

Practical and energy-saving infared motion sensor with twilight sensor.
Motion detector with 180 ° detection angle and motion detection up to 12m.
Adjustable time setting and photosensitivity.
Ideal for LED lamps up to 300W.
Ideal for hallway, stairs, basement, garage, toilet, front door, storage room and much more.
Very light ceiling mounting.
For automatic control of lighting.

ES-P02C 230V IP44 LED 180 degree Detection Range up to 12M Infrared Motion Sensor

Specifications

Power	110-130V/AC , 220-240V/AC 50/60Hz
Detection Angle	180 °
Detection Range	Max 2-12M <24℃
Time switch Off	10sec - 7mins, adjustable
Ambient Light brightness	10-2000Lux, adjustable
Load	1200W -Incandscent lamp 300W -LED lamp
IP raiting	IP44
Working Temperature	-20℃ ~ +40℃
Technology	Infrared Motion Sensor

Free your hand without looking for a switch

With ENERGYLUX ES-P02C you no longer have to search for a light switch !. Built-in infrared motion sensor automatically turns on the connected lighting when detecting a movement and then automatically shuts off. The switch-off time can be adjusted according to your wishes.

With the integrated twilight sensor, the lighting only switches on at dusk. Sensitivity adjustment is adjustable in the range of 10 to 2000LUX

With the 180 ° detection, the motion detector detects movement up to approx. 6m range. This motion detector is ideal for LED bulbs up to 300W. Easy ceiling mounting with supplied screws and dowels.
