Quick Details
-
Model Number:
-
MXH 1KVA-TXF
-
Weight:
-
19.5KG
-
Capacity:
-
1KVA/900w
-
Product name:
-

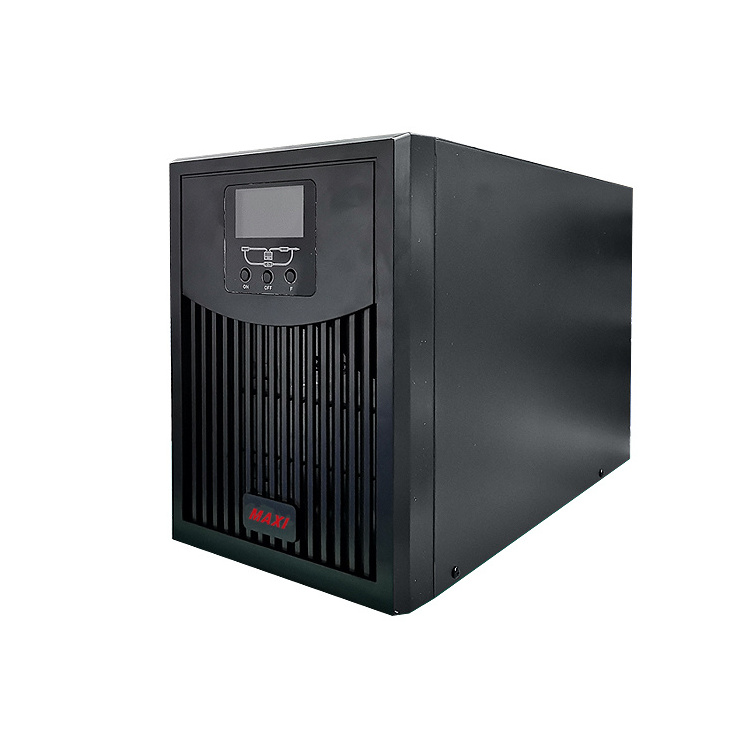

High Frequency Single Phase Online UPS
-
Frequency:
-
46~54Hz
-
Input Voltage Range:
-
(90±5)VAC~ (300±5)VAC
-
Wave Form:
-
Pure Sinewave
-
Backup time:
-
depend on load
-
Power factor:
-
0.9
-
Transfer Time:
-
0ms
-
Battery Type:
-
Sealed Lead Acid Maintenance
Quick Details
-
Warranty:
-
1 YEAR, 1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MAXI
-
Model Number:
-
MXH 1KVA-TXF
-
Weight:
-
19.5KG
-
Capacity:
-
1KVA/900w
-
Product name:
-
High Frequency Single Phase Online UPS
-
Frequency:
-
46~54Hz
-
Input Voltage Range:
-
(90±5)VAC~ (300±5)VAC
-
Wave Form:
-
Pure Sinewave
-
Backup time:
-
depend on load
-
Power factor:
-
0.9
-
Transfer Time:
-
0ms
-
Battery Type:
-
Sealed Lead Acid Maintenance
Specification
|
MODEL |
1K-ISO TX |
||
|
CAPACITY |
VA/W |
1000VA/ 90 0W |
|
|
INPUT |
Input isolation transformer |
connected on input end |
|
|
Voltage Range |
120~264VAC |
||
|
Frequency Range |
default 50Hz ( 4 6 -5 4) Hz / default 60Hz ( 5 6 -6 4) Hz |
||
|
Phase |
Single p hase with Ground |
||
|
Power Factor |
≥0.9 6 |
||
|
OUTPUT
|
Voltage |
220/230/240VAC |
|
|
Voltage Regulation |
±2% |
||
|
Frequency (Synchronized Range) |
4 7 -5 3 Hz/5 7 -6 3 Hz |
||
|
Frequency (BAT Mode) |
50/60Hz±0.2Hz |
||
|
Current Crest Ratio |
3:1 |
||
|
Harmonic Distortion |
<3% THD(Linear Load) |
||
|
<5% THD(Non-Linear Load ) |
|||
|
Output Waveform |
Pure Sine Wave |
||
|
Overload Capacity |
Line Mode
|
overload warning only @105% ±5% < load 10s, then transfer to bypass and alarm @ 105%±5%<load≤120%±5% 300ms, then transfer to bypass and alarm @ load>120%±5%
|
|
|
EFFICIENCY |
Line Mode |
> 75.7% |
|
|
BAT Mode |
> 84.5% |
||
|
ECO Mode |
> 84.3% |
||
|
BATTERY |
Number of Batteries |
3 |
|
|
Battery Type |
12V/7A H |
||
|
Backup Time (Full Load) |
>9 minutes |
||
|
Recharge Time |
7 hours to 90% |
||
|
Charging Current |
1A |
||
|
TRANSFER TIME |
BAT <--> LINE |
0ms |
|
|
INV <--> BYPASS |
<4ms |
||
|
INV-->ECO |
<4ms |
||
|
ECO--> INV |
<10ms |
||
|
INDICATOR |
LCD |
Load/Battery/Input/Output/Operating Mode Information |
|
|
AUDIBLE ALARM |
B attery Mode |
beeps every 4 seconds |
|
|
Battery Low |
beeps every second |
||
|
Fault |
Continuously beeping |
||
|
Overload Capacity |
beeps twice every second |
||
|
MECHANICAL |
D imension Wx Dx H(mm) |
180x 400x260 |
|
|
Net Weight (Kg) |
19.5 |
||
|
ENVIRONMENT |
Operation Environment |
0-40℃ |
|
|
Relative Humidity |
0-95% (Non-Condensing) |
||
|
Noise Level |
<54dB @ Front 1 meter |
||
|
INTERFACE |
USB/RS232 |
Software supports Windows Family, Linux, Sun Solaris, IBM Aix, Compaq True64, SGIIRIX, FreeBSD, HP-UX, MAC |
|
|
External Slot |
Optional, External Type of SNMP/AS400 Card |
||
|
EPO |
Emergency Power Off |
||
