Quick Details
-
Brand Name:
-
EVER STAR
-
Model Number:
-
DA
-
Weight:
-
80
-
Core Components:
-
bullet teeth or roller bits
-
Name:
-

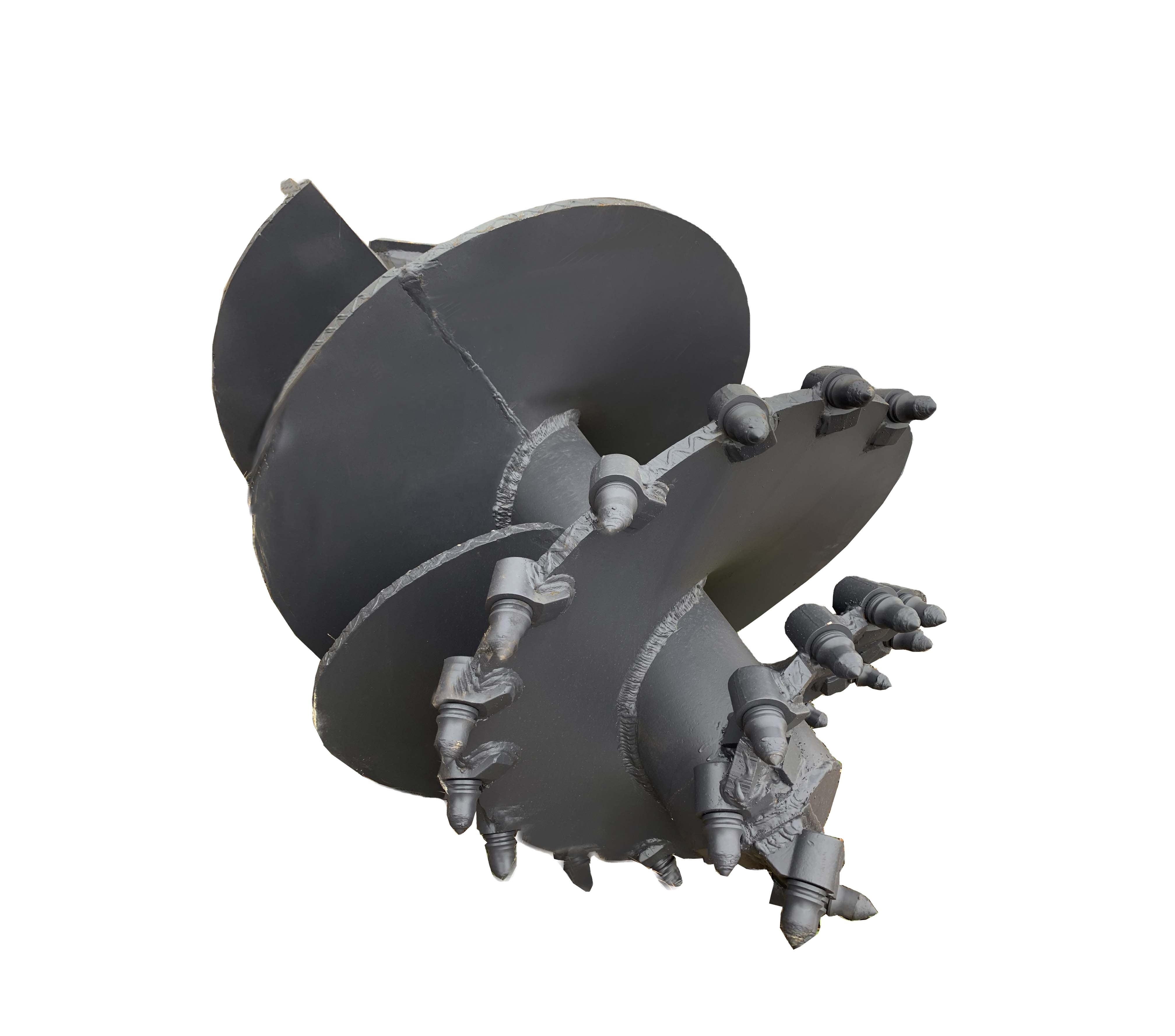

Bored Piles Earth Conical Rock Auger
-
color:
-
Customized
-
Diameter:
-
800-3000mm
-
Material:
-
Q345B
-
Use:
-
drilling
-
Thickness:
-
20mm
-
Suitable:
-
drilling machine
-
Certification:
-
ISO9001:2008
-
Feature:
-
Wear Resistance
-
Type:
-
spirals
Quick Details
-
Suitable Excavator(ton):
-
6-36
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EVER STAR
-
Model Number:
-
DA
-
Weight:
-
80
-
Core Components:
-
bullet teeth or roller bits
-
Name:
-
Bored Piles Earth Conical Rock Auger
-
color:
-
Customized
-
Diameter:
-
800-3000mm
-
Material:
-
Q345B
-
Use:
-
drilling
-
Thickness:
-
20mm
-
Suitable:
-
drilling machine
-
Certification:
-
ISO9001:2008
-
Feature:
-
Wear Resistance
-
Type:
-
spirals
Product Description
The auger has been given a heavy coat of paint to protect it from corroding.
The auger is solidly welded to the shaft giving it the strength needed to get through the toughest soil.
The long shaft makes digging holes easier on the back with less bending.
The auger works well in
soft sandy soil
, but if you’ve got any kind of clay, then it will struggle.
They are strong enough to go through hard soil, clay, and even small tree roots quickly and easily
.
They are well-made, rugged, and much easier to use than a heavy, gas-powered auger.
OUR PROMISE TO YOU: No matter what, you’re backed by our 100% Satisfaction and Guarantee - either you love this product, or we’ll give back every penny. And if you have any questions or concerns, our customer support is on standby to work with you till you’re satisfied.
Keep auger clean from soil and debris when not in use.
|
Technical Specification of Auger Drill
|
|
|
|
|
|
|
|
|||||||
|
Type
|
Unit
|
2500
|
3000
|
3500
|
4000
|
6000
|
8000
|
|||||||
|
Suitable Excavator
|
T
|
1.5-3T
|
2-4T
|
2.5-4.5T
|
3-5T
|
4.5-6T
|
5-7T
|
|||||||
|
Torque
|
Nm
|
790-2593
|
1094-3195
|
1374-3578
|
1710-4117
|
2570-6917
|
3163-8786
|
|||||||
|
Pressure
|
Bar
|
70-240
|
80-240
|
80-240
|
80-240
|
80-240
|
80-240
|
|||||||
|
Flow
|
Lpm
|
25-65
|
25-70
|
40-80
|
50-92
|
40-89
|
48-110
|
|||||||
|
Rotate Speed
|
Rpm
|
36-88
|
30-82
|
35-75
|
35-68
|
20-46
|
20-45
|
|||||||
|
Output Shaft
|
mm
|
65Rnd
|
65Rnd
|
65Rnd
|
65Rnd
|
75Sq
|
75Sq
|
|||||||
|
Weight
|
Kg
|
95
|
100
|
105
|
110
|
105
|
110
|
|||||||
|
Max Auger Diameter Clay/Shale
|
mm
|
300
|
300
|
350
|
350
|
500
|
600
|
|||||||
|
Max Auger Diameter Earth
|
mm
|
350
|
400
|
450
|
500
|
600
|
800
|
|||||||
|
Technical Specification of Auger Drill
|
|
|
|
|
|
|
|
|||||||
|
Type |
Unit
|
9000
|
15000
|
20000
|
25000
|
30000
|
59000
|
|||||||
|
Suitable Excavator
|
T
|
6-8T
|
10-15T
|
12-17T
|
15-22T
|
17-25T
|
20-35T
|
|||||||
|
Torque
|
Nm
|
3854-9961
|
5307-15967
|
6715-20998
|
8314-25768
|
15669-30393
|
27198-59403
|
|||||||
|
Pressure
|
Bar
|
80-240
|
80-260
|
80-260
|
80-260
|
80-260
|
160-350
|
|||||||
|
Flow
|
Lpm
|
70-150
|
80-170
|
80-170
|
80-170
|
80-170
|
100-250
|
|||||||
|
Rotate Speed
|
Rpm
|
23-48
|
23-48
|
15-32
|
12-26
|
12-21
|
10-22
|
|||||||
|
Output Shaft
|
mm
|
75Sq
|
75Sq
|
75Sq
|
75Sq
|
75Sq
|
110Sq
|
|||||||
|
Weight
|
Kg
|
115
|
192
|
200
|
288
|
298
|
721
|
|||||||
|
Max Auger Diameter Clay/Shale
|
mm
|
800
|
900
|
1000
|
1100
|
1200
|
1500
|
|||||||
|
Max Auger Diameter Earth
|
mm
|
1000
|
1200
|
1400
|
1500
|
1600
|
2000
|
|||||||
