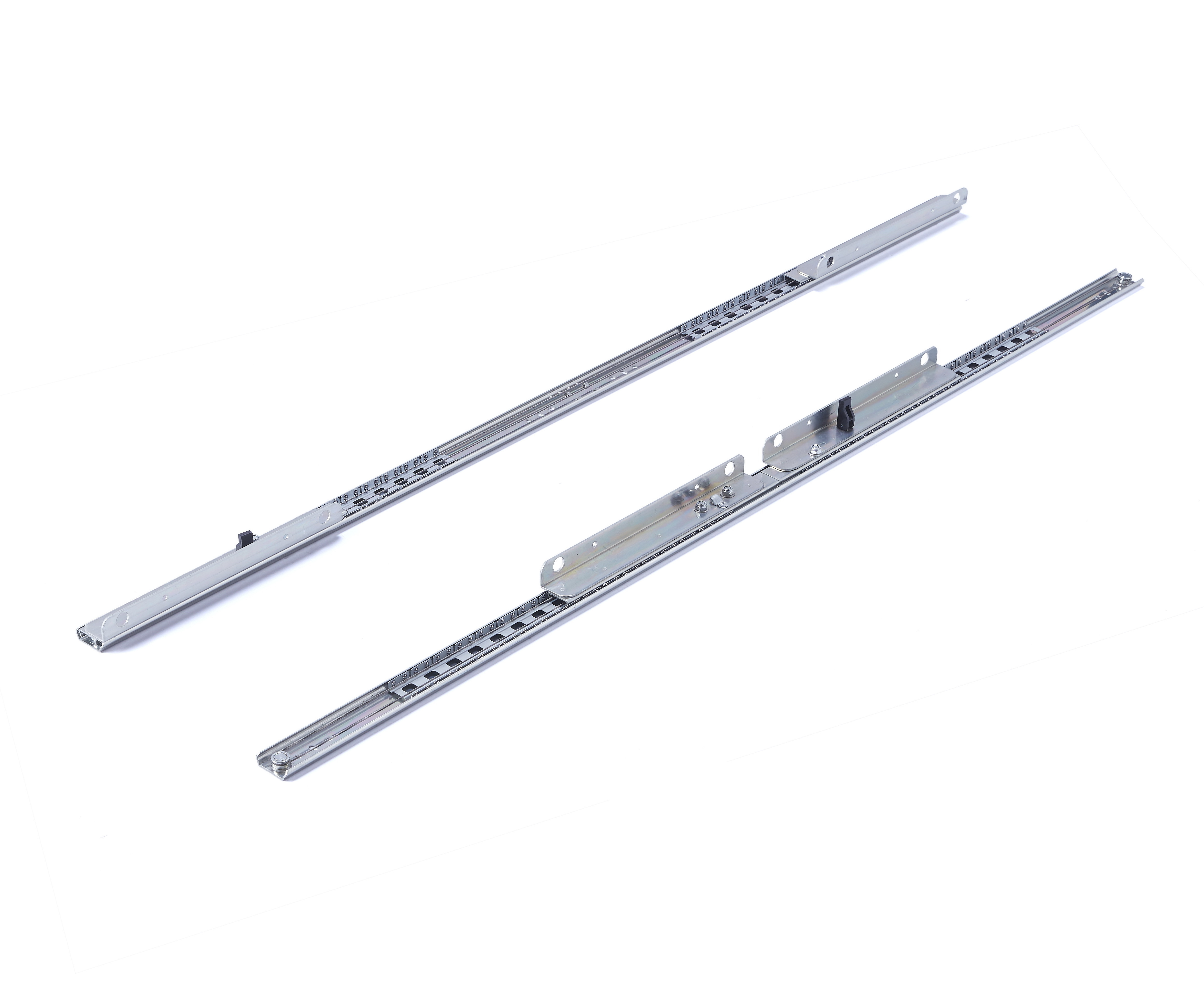

Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide
Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide

Extendable Table Slides Hardware Telescopic Drawer Slide For Table Transforming Table Slide

FOB Reference Price: Get Latest Price
≥100 Pieces
US $4.41
≥300 Pieces
US $4.18
≥3000 Pieces
US $3.71
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Material:
1.5 mm Cold Rolled Steel
Place of Origin:
Guangdong, China
Brand Name:
WALITON
Model Number:
WLT-T35-900-260ST
Usage:
Synchronized transformer table
PRODUCT NAME:
Synchronized Transformer Table Slide
Dimension (mm):
35x900
Mechanism type:
External mounting
Synchronicity:
Synchronous with stopper
Folded length(mm):
900
Extended length (mm):
1304
Mounting Metal size (mm):
260x20
Maximum insert size(mm):
653
Loading capacity:
60kgs (130lbs)
Finish:
Zinc or Black Electric Dipping

Quick Details

Application:
Kitchen, Home Office, Living Room, Dining, Storage & Closet, Woodworking & Cabinetry, small kitchen table, small dining table, dining tables for small spaces, transformer table, tables set, space saving dining table
Design Style:
Contemporary
Type:
Drawer Slide For Table
Material:
1.5 mm Cold Rolled Steel
Place of Origin:
Guangdong, China
Brand Name:
WALITON
Model Number:
WLT-T35-900-260ST
Usage:
Synchronized transformer table
PRODUCT NAME:
Synchronized Transformer Table Slide
Dimension (mm):
35x900
Mechanism type:
External mounting
Synchronicity:
Synchronous with stopper
Folded length(mm):
900
Extended length (mm):
1304
Mounting Metal size (mm):
260x20
Maximum insert size(mm):
653
Loading capacity:
60kgs (130lbs)
Finish:
Zinc or Black Electric Dipping
Specification

Transformer Table Synchronous Ball Bearing Extendable Table Slide


* Configuration: Side-Mount
* Max Drawer Load: 165 lbs.
* Extension Length: N/A * Level of Travel: Full-Extension
* Method of Disconnect: Non-Disconnect
* Available Finish: Clear Zinc , Black Zinc, and White Electrocoat
* Available Lengths: (Custom-Made)

1. 2.0mm Thick Steel Bracket, Provide Strong Support , Sturdy and Safe. 2. Solid Stainless Steel Ball, Gives silenced operation and moving smoothly. 3. Plastic Brake, easy to operate it and allow user to fix the table in its place. 4. 2.0mm Stainless Steel Cable, Sturdily Synchronized the Table Slide Movement 5. Silver White Plastic Wheel, Silence and Durability Added to the Table Slide Operation.
Product Name
Mechanisms for extending tables, 35-900D synchronous with stopper
Item No.
WLT-T35-900-260ST
Drawer Slide Rail Material
Cold Rolled Steel / ( Galvanized Steel as an option)
Drawer Slide Section Steel Thickness
1.5 x 1.5
Folded length(mm)
900
Extended Length(mm)
1304
Mounting Metal size (mm)
260x20
Maximum insert size(mm)
653
Mechanism type
External mounting
Synchronized Steel Cable
SUS304 Stainless Steel  Diameter 1.8mm
Opening/Closing  Lock Brake
Plastic  Brake, The Locking Mechanism for Hold In the Table
Synchronized Steel Cable Wheel
Plastic Wheel for Silent Moving
Synchronicity
Synchronous with stopper
Kg / pair
2.54
Pairs / Carton Box
10
Carton Box Size (cm)
92 x 21 x9
Feature
• Synchronized extension table slide
• 2.0mm stainless steel cable for moving synchronously
• Solid stainless steel ball bearing for moving smoothly
• Plastic Wheel for moving quietly
• Non-Disconectable slide members with locking brake system for safety
Applications
Extendable table slides for small dining table,small kitchen table,tables set,dining tables for small spaces,space saving dining table
The Most Relevant Products
Manufacturing and Packaging

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

The Drawer Slides Production Manufacturing


---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

The Drawer Slides Production Packaging

As usually, one sets drawer slide will be packed in a PE bag, 10 PE bags packed in a Carton.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
