- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
4000 kg
-
Application Field:
-
egg packing paper tray
-
Raw material:
-
Waste Paper/recycling paper/used paper
-
Forming type:
-
roller and reciprocating type
-
Capacity:
-
3000pcs/hr~4000pcs/hr
-
Finished Production:
-
Egg Tray Egg Carton
-
drying line:
-
with
-
Fuel Type:
-
natural gas/diesel oil
-
raw material:
-
280Kg/hr
-
certificate:
-
CE
-
workshop size:
-
65m*18m*4.5m
Quick Details
-
Production Capacity:
-
6-8 modes per minute
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380-440
-
Weight:
-
4000 kg
-
Application Field:
-
egg packing paper tray
-
Raw material:
-
Waste Paper/recycling paper/used paper
-
Forming type:
-
roller and reciprocating type
-
Capacity:
-
3000pcs/hr~4000pcs/hr
-
Finished Production:
-
Egg Tray Egg Carton
-
drying line:
-
with
-
Fuel Type:
-
natural gas/diesel oil
-
raw material:
-
280Kg/hr
-
certificate:
-
CE
-
workshop size:
-
65m*18m*4.5m
Product Overview

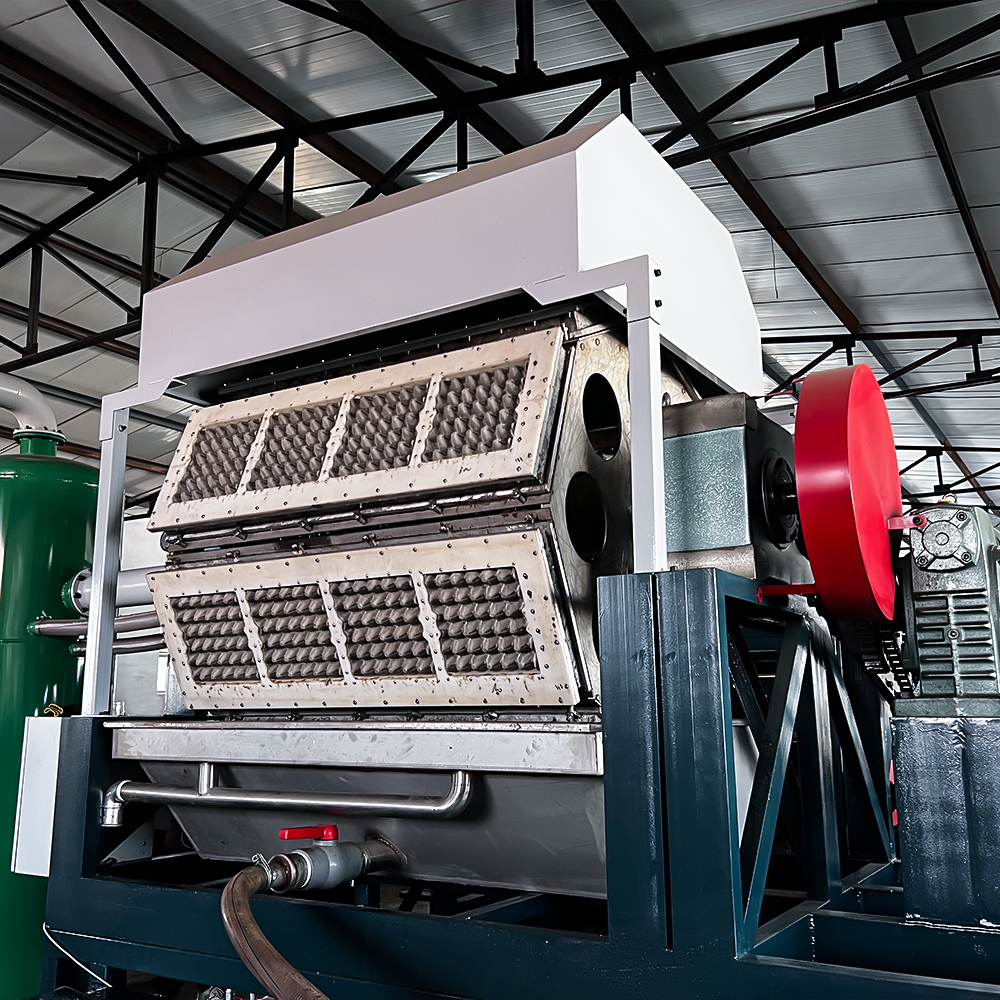

6000pcs/h egg tray peoduction line
This automatic egg tray machine is suitable for every kind of scale production plants. It can produce egg tray, egg boxes and other shapes of tray. Its output is 6000pcs/h for 30 cavity trays, so it can allow workers to work three shifts per day. The product can be recycled, is a new green packaging, which is not only the development of environment-friendly enterprise, also long get rich choice.
Fully Automatic Recycling Paper Egg Trays Machine/EggTray Making Machine Product Line
Pulping System
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on. which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp.
Pulp Forming Machine
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on. The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on. which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp.
Pulp Forming Machine
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on. The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
PRODUCT SPECIFICATIONS
|
Item
|
Information
|
Notes
|
|
Water
|
1-1.5T/hr
|
|
|
Raw material
|
1000kgs/hr
|
|
|
Electricity
|
239.5kw/hr
|
|
|
Natural gas
|
40m³/hr
|
For the energy source, only need to choose one according to local condition.
|
|
Diesel oil
|
36kgs/hr
|
|
|
Worker
|
5 person/shift
|
|
|
Total power
|
About 120KWh--130KWh per hour
|
|
Installation Instructions
The flowing items must be prepared by the buyers before installation：
The pulp tank, water tank and draining system should be built of reinforced concrete. Buyer is responsible to guarantee the power and water supply to make sure equipment and controlling cabinets can work normally.
All necessary craft pipelines (if you can provide your factory area, we can design all pipelines free of charge) and valve,
electric wires, cable, wire slots, bracket and so on. Above should be prepared in advance.
All necessary craft pipelines (if you can provide your factory area, we can design all pipelines free of charge) and valve,
electric wires, cable, wire slots, bracket and so on. Above should be prepared in advance.
PRODUCT CONFIGURATION
Pulper
Auto feeding and auto give water.
Material:carbon steel Power :45kw
Capacity :5m³
Material:carbon steel Power :45kw
Capacity :5m³
Forming machine
The parts connected with pulp are all 304# stainless steel
Capacity :6000pcs/h
5molds*8faces
Power：15.5kw With automatic oil feeding system and automatic cleaning mould
Capacity :6000pcs/h
5molds*8faces
Power：15.5kw With automatic oil feeding system and automatic cleaning mould
Self-priming pump
Power:5.5kw
Usage: removal the water of vacuum tank
Usage: removal the water of vacuum tank
Drying systerm
Use geating fuels, such as diedel oil， coal, LPGS, GAS, etc to dry the formeg wet blanks.
packaging&shipping
SALES AND SERVICE NETWORK
FAQ
Q:Why are many pictures on the Internet the same as your company?
A:Because our company has been specialized in pulp manufacturing machinery for more than 30 years, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese pulp manufacturing machinery industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn.
Q:Why I choose your company?
A:a) We are the Leading puple making machine Manufacturer in China.
b) We have made pulp manufacturing machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service
A:Because our company has been specialized in pulp manufacturing machinery for more than 30 years, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese pulp manufacturing machinery industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn.
Q:Why I choose your company?
A:a) We are the Leading puple making machine Manufacturer in China.
b) We have made pulp manufacturing machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service
