Quick Details
-
Model Number:
-
V-932
-
Dimension:
-
342mm x 375mm x 595mm
-
Output Power:
-
150w/350w
-
Speaker Type:
-
2 Way Full Range Line Array Speaker
-
Speaker Inch:
-
12 inch speaker
-
MF rated Power/ Peak:
-
350W/8Ω 1400W / Peak
-
HF rated Power/ Peak:
-
150W/8Ω 450W/ Peak
-
Impedance:
-
8 Ohms
-
Sensitivity:
-
100dB(1m/w)
-
Frequency Response:
-
60Hz-18kHz
-
Wood Case:
-
18mm Plywood, Galaxy Black Pain
-
Application:
-
Stage/Concert/Conference/Party/Outdoor Activities
Quick Details
-
Warranty:
-
3 years, 2 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aoyue
-
Model Number:
-
V-932
-
Dimension:
-
342mm x 375mm x 595mm
-
Output Power:
-
150w/350w
-
Speaker Type:
-
2 Way Full Range Line Array Speaker
-
Speaker Inch:
-
12 inch speaker
-
MF rated Power/ Peak:
-
350W/8Ω 1400W / Peak
-
HF rated Power/ Peak:
-
150W/8Ω 450W/ Peak
-
Impedance:
-
8 Ohms
-
Sensitivity:
-
100dB(1m/w)
-
Frequency Response:
-
60Hz-18kHz
-
Wood Case:
-
18mm Plywood, Galaxy Black Pain
-
Application:
-
Stage/Concert/Conference/Party/Outdoor Activities

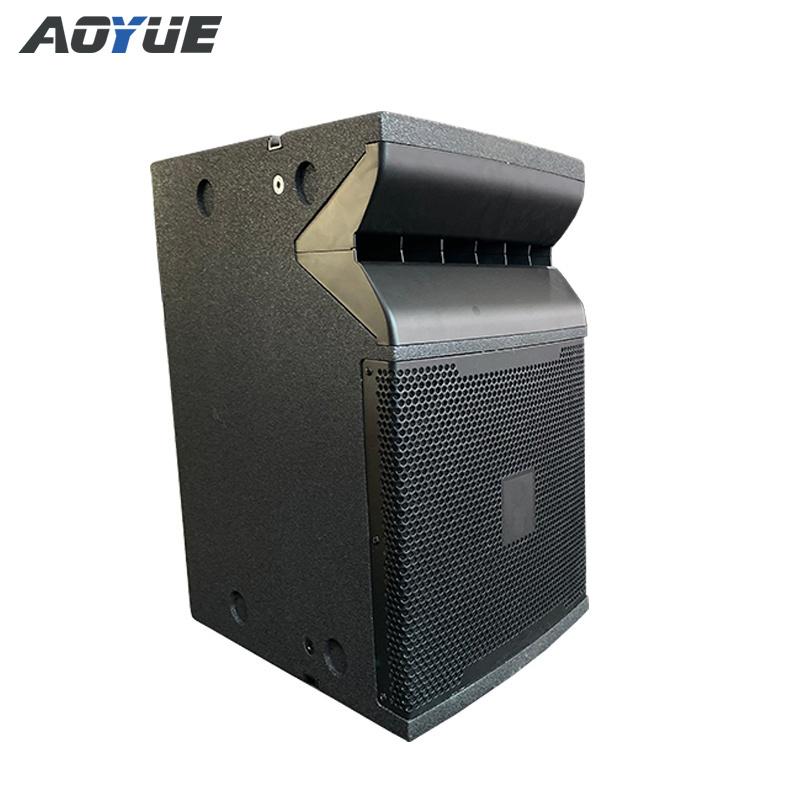

Aoyue professional 12 inch speaker outdoor stage dj speaker full range line array speaker
Product Description
|
V932
|
System 2 WAY FULL RANGE
|
|
|
Frequency response
|
60Hz-18KHz
|
|
|
Driver LF
|
12"×1(neodymium Φ75mm)
|
|
|
HF
|
1.5"×3( Φ38mm)
|
|
|
System sensitivity
|
100dB
|
|
|
MF rated Power/ Peak
|
350W/8Ω 1400W / Peak
|
|
|
HF rated Power/ Peak
|
150W/8Ω 450W/ Peak
|
|
|
Aximum SPL
|
133dB
|
|
|
Cover Range
|
120*15
|
|
|
Nominal lmpedance
|
8 Ohms
|
|
|
Product size mm(W*D*H)
|
343×379×595
|
|
|
Net weight
|
30KG
|
|
|
Package size mm(W*D*H)
|
440×475×720
|
|
|
Gross weight
|
33KG
|
|
|
Box Case 18mm plywood case
|
|
|
|
Crossover mode Internal
|
|
|
|
Suspension Fly hung
|
|
|
V-932 line array feature：
1.Neodymium speaker drivers:1x12” LF,dual voice coil ; 3 x 1.5” HF.
2.Active and Passive type is selectable.
3.It’s designed for sound reinforcement applications in various small and medium-sized halls.
Professional compression driver design and unprecedented array coherence.
4.Double angle rod socket, aiming flexible.
5.Integral rigging hardware for simple connection of VRX918 Line-arrays.
6.Integrated rigging hardware for easy attachment of enclosures and optional array frames.

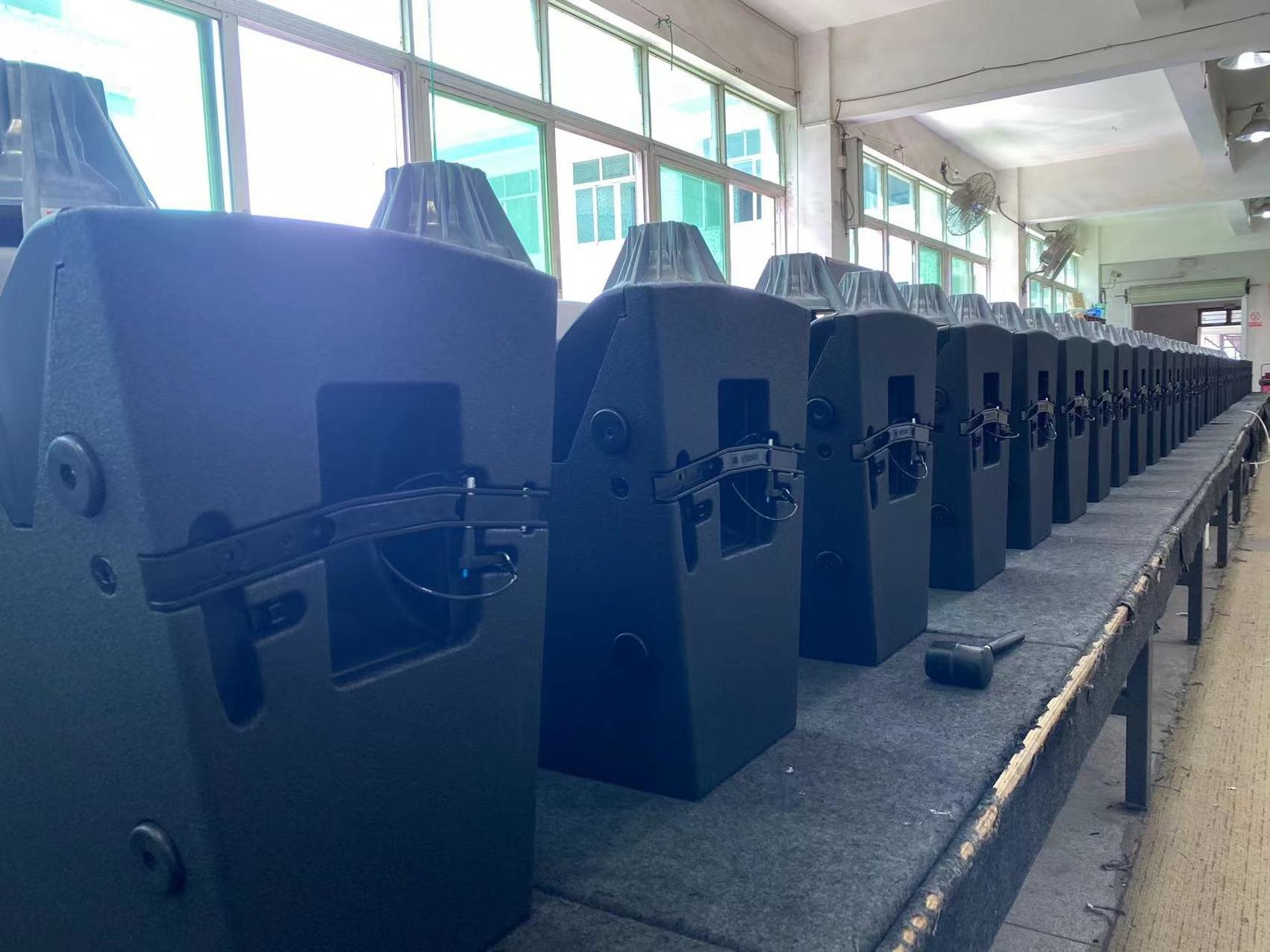

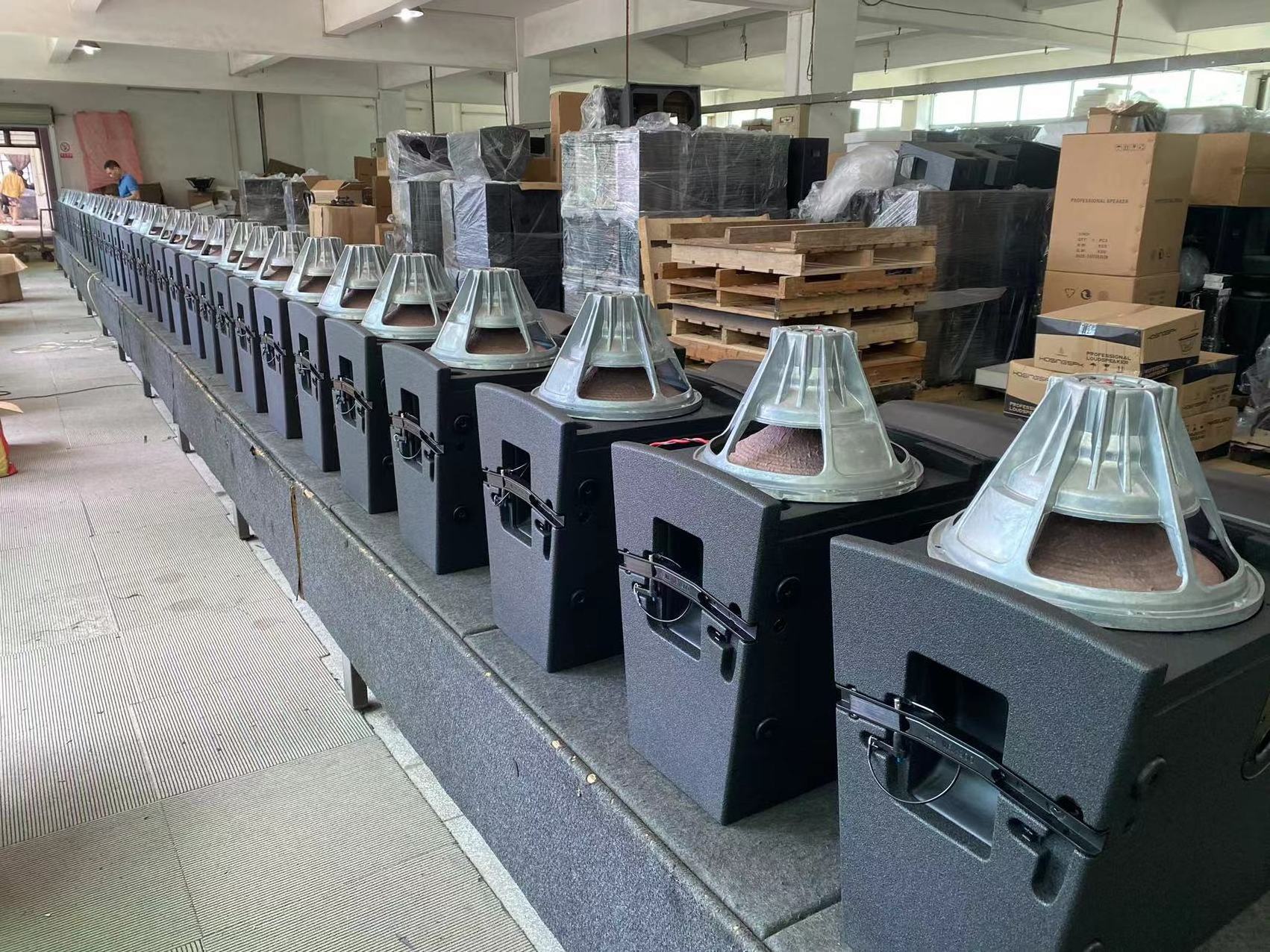

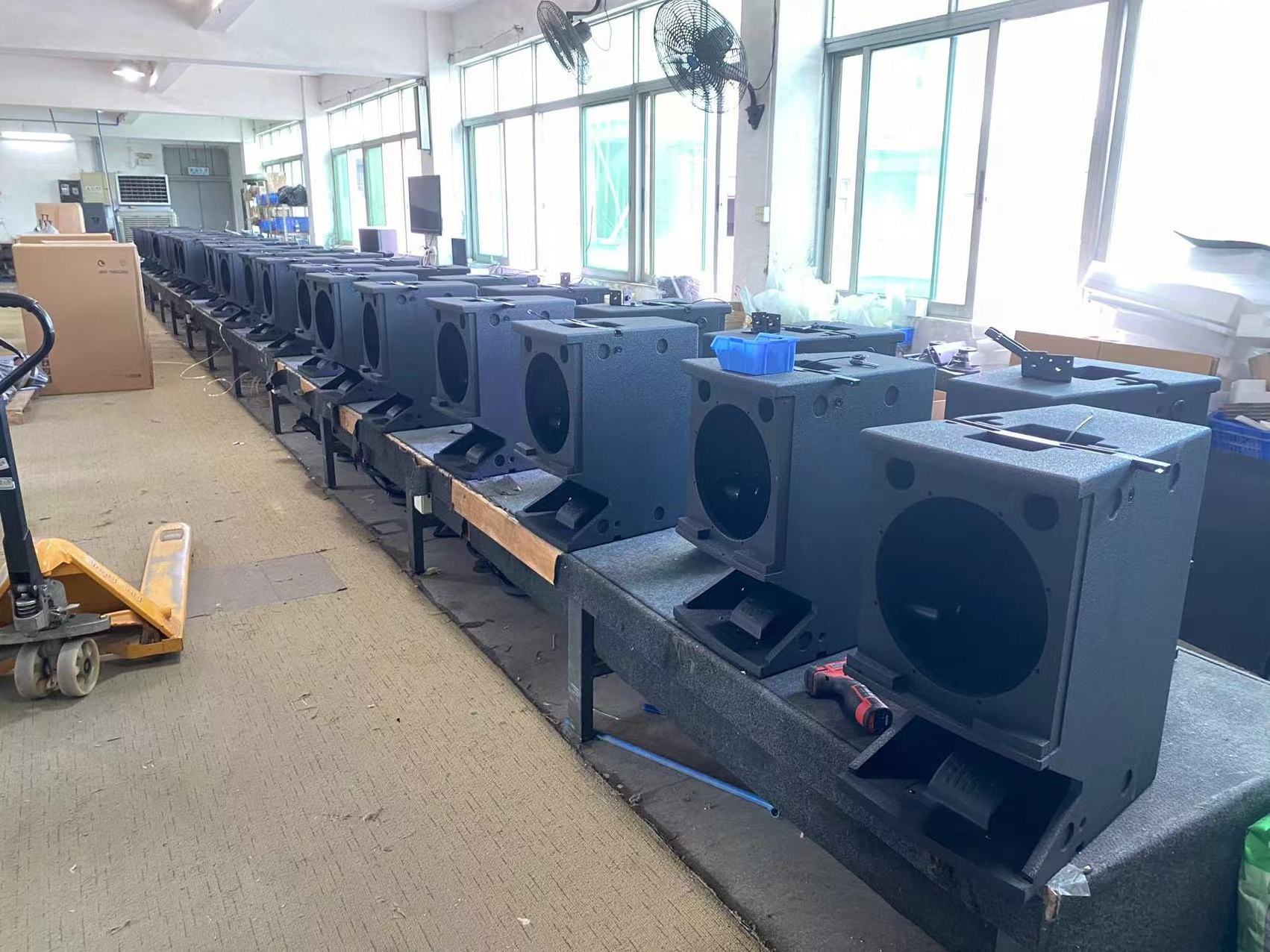

Factory production（1）
Factory production（2）
Factory production（3）
Factory production（4）
Factory production（5）
Factory production（6）
Feedback
Recommend Products
FAQ
Warranty
2 years warranty for power amplifier products.
Our company supports 2 years warranty. Any problem welcomes to contact us freely. Our services team is 18 hours online. We will supply free after-service if any quality or product problem.
Must know before buying:
1. Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;
Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!
FAQ
1. We are 10+ years manufature about professional audio speaker and power amplifier. Our engineers have 10+ years work experience, very professional.
2. We accept OEM or ODM products. If you need to print your logo. We can do it for you.
3. The product is light and suitable for performance and conferences.
4. There is no minimum order quantity limit ,you can choose to order 1pc or 1000000pcs.
5. Products with CE ROHS certification.
6. We accept Paypal, Wester Union, TT bank transfer payments too besides Alipay. So tell us which is more convenient for you.
7. If you are interested in our products or have questions about the price, you can leave your message to get a better price, and we will reply you soon.
