Quick Details
-
Core Components:
-
Broaching
-
Weight (KG):
-
8000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
Hydraulic & Horizontal
-
Color:
-
Factory Standard or Customized OPT.
-
Pulling capacity:
-
200kN/20 Tons
-
Rated pulling capacity:
-
200 kN/20T
-
Nominal working stroke:
-
1600mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LFM
-
Marketing Type:
-
Traditional Broachers
-
Core Components:
-
Broaching
-
Weight (KG):
-
8000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
Hydraulic & Horizontal
-
Color:
-
Factory Standard or Customized OPT.
-
Pulling capacity:
-
200kN/20 Tons
-
Rated pulling capacity:
-
200 kN/20T
-
Nominal working stroke:
-
1600mm

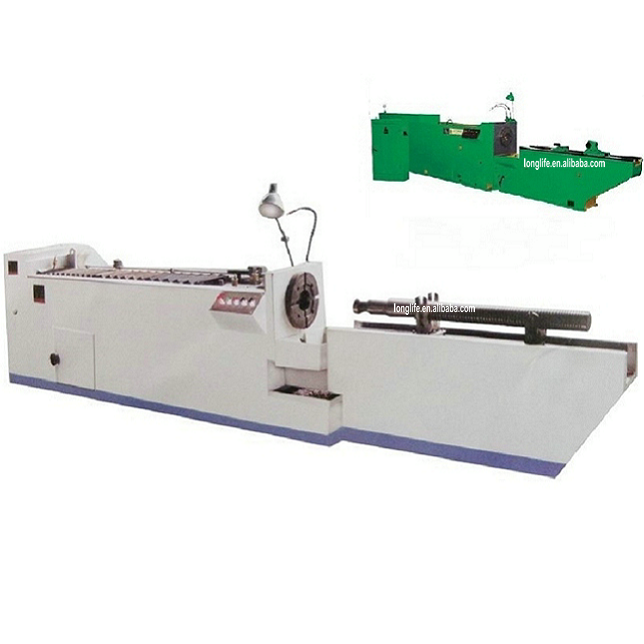

L6120 Hydraulic Spline Horizontal Broaching Machine
This kind of broaching machine is mainly used for machining inner holes of various types of parts, such as round holes, squred splined holes, holes with single key, involute profile and others.
|
Specifications |
Unit |
Parameter |
|
Rated pulling capacity |
kN |
200 |
|
Nominal working stroke |
mm |
1600 |
|
Working stroke speed (stepless) |
m/min |
1.5~7 |
|
Return stroke speed (stepless) |
m/min |
3 ~ 18 |
|
Bore diameter of the faceplate |
mm |
φ 100H7 |
|
Bore diameter of end-plate bearing |
mm |
φ 150H7 |
|
Operation height |
mm |
850 |
|
Main oil pump flow |
L/min |
252 |
|
Max. working pressure |
MPa |
13 |
|
Size of end-plate |
mm |
640x550 |
|
A xial plunger pump for main drive |
|
A3H180-FR14K |
|
Displacement |
mL/r |
180 |
|
Max. working pressure |
MPa |
16 |
|
Rotated working pressure |
MPa |
11 |
|
Motor for main drive |
|
Y225M-4-B35 |
|
Auxiliary pump - Variable Vane Pump |
|
SVPF-40-70 |
|
Displacement |
mL/r |
22.2 |
|
Max. working pressure |
MPa |
6 |
|
Rotated working pressure |
MPa |
4 |
|
Motor power for auxiliary pump |
kW |
2. 2 |
|
Motor speed for auxiliary pump |
rpm |
1470 |
|
M ain motor power |
kW |
45 |
|
S peed of m ain motor |
rpm |
1470 |
|
Cooling pump flow |
L/min |
100 |
|
Motor power for c ooling pump |
kW |
0.25 |
|
Motor speed for cooling pump |
rpm |
3000 |
|
Total capacity of motor |
kW |
48 |
|
Overall dimensions (LxWxH) |
mm |
8630x2500x1480 |
|
Net weight |
kg |
Appro. 8000 |
Optional accessories will be provided according to customers' exact machining requirements;
