What are Hydraulic fittings adapters ?

Hydraulic fittings adapters are mechanical parts used to connect the hydraulic hose to components like hydraulic cylinders, pipes, tubes, or different types of hydraulic hoses in hydraulic systems and are designed to control the flow of fluid and to provide leak-proof connection between components. The different types of hydraulic fittings adapters allow the fluid to flow, change its direction, divert, or mix. The most common type of hydraulic fittings adapters are made from metals such as carbon steel, stainless steel and brass.

Hydraulic fittings adapters come in different standards, NPT, JIC, SAE, NPSM, ORFS, BSPP, BSPT, METRIC and in various shapes Straight Union, 45 & 90 Degree Elbows, Tee & Cross and are made from different materials of AISI 304, AISI 316/316L, AISI 316Ti .

Hydraulic fittings adapters are often specified to certain temperature and pressure ratings based on their design and construction and standard, normally most hydraulic fittings adapters are 16MPa to 63 MPa or more. And most Hydraulic fittings adapters come from 1/8” to 2”.

Hydraulic fittings adapters are widely used in hydraulic-powered applications including plumbing, robotics, assembly lines, and heavy equipment and used for many industries, including automotive, aerospace, marine, and industrial applications. Hydraulic fittings adapters are used to connect components in hydraulic systems, allowing for quick and easy assembly and disassembly.

Heavy-duty Stainless Steel or Carbon Steel Hydraulic Hose Fittings are popular because they are strong and durable. You can directly purchase it from NBPT factory. Those Hydraulic Hose Fittings are high pressure resistant, long service life, convenient installation. Brass

Hydraulic Hose Fittings are widely used in the hydraulic fittings can be used in machine equipment, medical equipment, textile equipment, food processing equipment, etc.

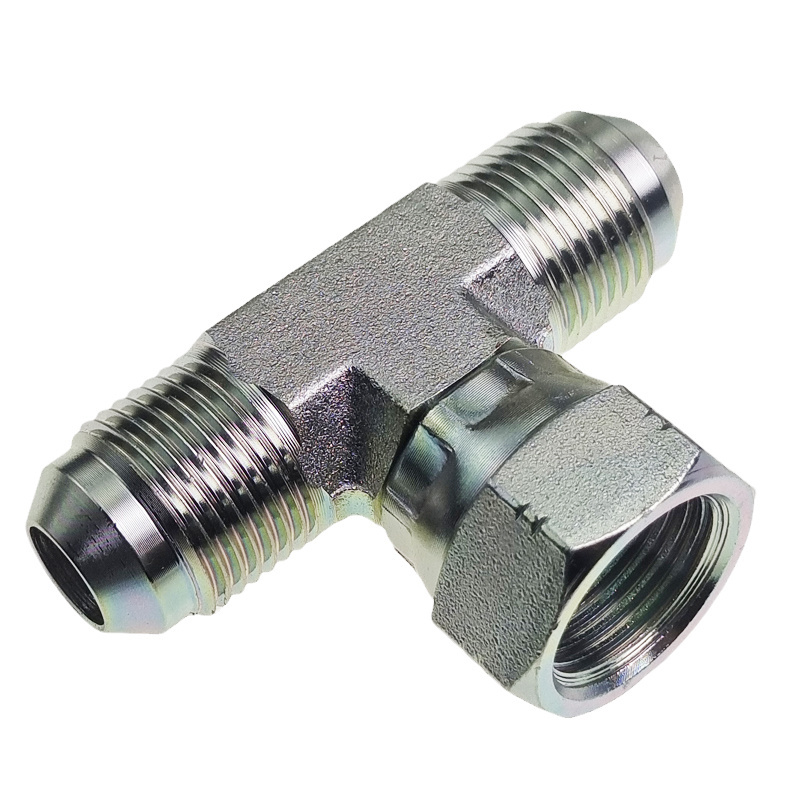

BJ Hydraulic Hose Adapter Barrel Tee Fittings 3 Way Hydraulic Hose End Fittings Male Female Hydraulic Tee Hose Adapter

Heavy-duty Stainless Steel or Carbon Steel Hydraulic Hose Fittings are popular because they are strong and durable.

You can directly purchase it from NBPT factory. Those Hydraulic Hose Fittings are high pressure resistant, long service life, convenient installation. Brass

Hydraulic Hose Fittings are widely used in the hydraulic fittings can be used in machine equipment, medical equipment, textile equipment, food processing equipment, etc.

Brass Carbon Stainless Steel Npt Male Straight Nipple Reducing Reducer Adapter 15611 Barbed Hydraulic Hose Tube Pipe Fittings

1) FERRULE/BUSH
FERRULE/BUSH for SAE100R1AT/EN 853 1SN HOSE
FERRULE/BUSH for SAE100R1A EN 853 1ST HOSE
FERRULE/BUSH for SAE100R2AT/DIN20022 2SN HOSE
FERRULE/BUSH for SAE100R2A/EN853 2SN HOSE
FERRULE/BUSH for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE/BUSH for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE/BUSH for 4SH, R12/32 HOSE
2) SWAGED METRIC FITTINGS/ Hydraulic Fittings
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings
3) SWAGED BRITISH FITTINGS/ Hydraulic Fittings
BSP Flat Seal Fittings
BSP Fittings BSP 60°Cone Seal Fittings
BSPT Fittings JIS BSP 60°Cone Seal Fittings
4) SWAGED AMERICAN FITTINGS/ Hydraulic Fittings
ORFS Flat Seal Fittings
NPSM Seal Fittings JIC Fittings
NPT Fittings SAE Flange L.T. FittingSAE Flange H.T. Fittings
5) STAPLELOK FITTINGS
BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS
6) METRIC ADAPTERS/Hydraulic Fittings
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
Metric Thread 74°Cone Flared Tube Adapters
JIS Metric Thread 60°Cone Adapters
7) BRITISH ADAPTERS/ Hydraulic Fittings
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8) AMERICAN ADAPTERS
ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters

1.Hydraulic Hose Tube Pipe Fittings Specification:

This Male Thread Carbon Steel Hose Barb Hydraulic Hose Fitting is for connecting a hose to hose of different diameter

threaded connection.It is with corrosion resistance, ductility at high temperatures, and low magnetic permeability.

This Brass Pipe Fittings Adapter is made of forged brass for greater strength than cast brass. Hose fittings

connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made

of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear.

Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect,

and others including those based on internationally-accepted specifications. Hose fittings are used in systems

such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries

including agriculture, mining, road construction, firefighting, and aviation.

2. Hydraulic Hose Tube Pipe Fittings Advantages:

1.Solid Brass is used for tableware, environmental protection and no pollution.

2.Barbed retracting locks for easy slide-back connecting and disconnecting.

3.Thickness is 20% thicker than the same type of connector.

4.Smooth edges and precision production makes work easier,more effective and convenient installation.

3. Detailed Product of Hydraulic Hose Tube Pipe Fittings Photos:

FAQ

Q:Are you a factory or trading company?

A: We manufacture mainly hydraulic parts, hydraulic fittings adapters and hydraulic hose fittings. We are a manufacturer.

Q: How can you ensure products' quality?

A: We manufacture products under overseas advanced technology and high-precision equipment (B205 Headstock Travel CNC Lathe).Each hydraulic fittings adapters and hydraulic hose fittings products are inspected by professional QC team before shipment on the basis of conforming to ISO9001:2015 quality system certification.

Q:How can you ensure samples provided match actual order?

A: The samples are taken directly from production line and not hand picked. Thus, the samples of hydraulic fittings adapters and hydraulic hose fittings are the same as the actual products.

Q:How about your price?

A: We can guarantee our price of hydraulic fittings adapters and hydraulic hose fittings must be best and the most competitive for better quality.

Q: How about the lead time?

A: It depends on your order quantity. Normally it will take 10-15 days for our routine products of hydraulic fittings adapters and hydraulic hose fittings.

Q: How about the warranty of hydraulic fittings adapters and hydraulic hose fittings .

A: It's 1 year from shipment date.
