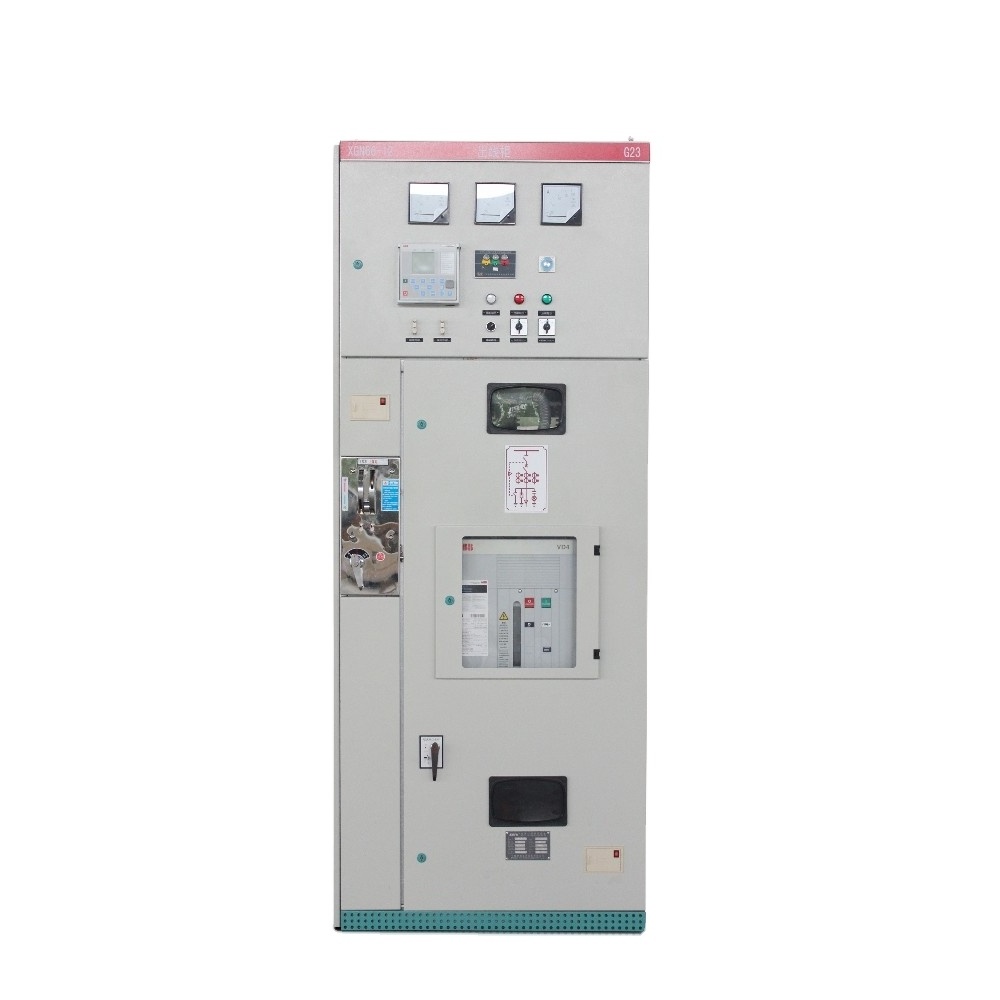

KYN28A-12 (Z)(GZS1)Type a armored removable ac metal enclosed switchgear
KYN28A-12
(Z)(GZS1)Type a armored removable ac metal enclosed switchgear (hereinafter referred to as switchgear) It is suitable for three-phase ac 50Hz power system to receive and distribute electric energy, control, protect and monitor the circuit
Standards
The switchgear and main apparatus contained in it comply with the latest IEC Standards:
• IEC 62271-1 for general purposes
• IEC 62271-200 for the switchgear
• IEC 62271-102 for the earthing switch
• IEC 62271-100 for the circuit-breakers
• IEC 60071-2 for the insulation coordination
• IEC 62271-106 for the contactors
• IEC 60265-1 for the switch-disconnectors
• IEC 60529 for degree of protections
Service environment:
a) Air temperature:Maximum temperature: +40℃; Minimum temperature:-25℃
b) Humidity:Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level:Maximum installation altitude: 2500m
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
|
Main technical parameters
|
|
|
|
|||
|
Rated voltage
|
.....................................
|
kV
|
3.6、7.2、12
|
|||
|
Rated frequency
|
.....................................
|
Hz
|
50
|
|||
|
Rated current of circuit breaker
|
.....................................
|
A
|
630/4000
|
|||
|
Rated current of switchgear
|
.....................................
|
A
|
630/4000
|
|||
|
Rated short-time withstand current (4S)
|
.....................................
|
kA
|
20、25、31.5、40
|
|||
|
Rated peak withstand current (peak)
|
.....................................
|
kA
|
50、63、80、100
|
|||
|
Rated short-circuit breaking current
|
.....................................
|
kA
|
20、25、31.5、40
|
|||
|
Rated insulation level 1min power frequency withstand voltage
|
Pole-to-pole, pole-to- ground
|
kV
|
24、32、42
|
|||
|
|
Between open contacts
|
kV
|
24、32、48
|
|||
|
Lightning impulse withstand voltage (peak)
|
Pole-to-pole, pole-to- ground
|
kV
|
40、60、75
|
|||
|
|
Between open contacts
|
kV
|
46、70、85
|
|||
|
The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened
|
|
|
|
|||
Fully type-tested
The switchgear has undergone all the tests required by the international (IEC) Standards. Each switchgear unit is subjected to routine tests in the factory before delivery. These tests are intended to provide a functional check of the switchgear based on the specific characteristics of each installation.
IEC type tests
• Short-time and peak withstand current
• Temperature rise
• Internal arc capability
• Dielectric test
• Making and breaking capacity of circuit-breaker
• Earthing switch making capacity (top application)
• Mechanical operations of circuit-breaker and line disconnector
• IP degree and impact test
IEC routine factory tests
• Visual inspection and check
• Mechanical sequence operations
• Cabling check
• Electrical sequence operations
• Power frequency withstand voltage
• Measurement of the resistance of the main circuits
• Secondary insulation test
The enclosure is made of aluminium-zinc plated steel sheet by CNC machine, high precise dimension, short production cycle,excellent mechanical strength and nice appearance. The busbar compartment, VCB handc art compartment, cable compartment and relay compartment are separated by metal sheet. Flexible operation for handcart movement, clear position instruction, the earthing switch allow to making short circuit current and creditable mechanical interlock.
It fit with many kinds of vacuum circuit breaker such as ABB VD4, Schneider HVX, Siemens 3AE, and China VS1 ,and can also select fixed load breaker switch or vacuum contactor. And protective relay is also selectable:
