Quick Details
-
Brand Name:
-
IKLAY
-
Voltage:
-
380V/415V/440V or customized
-
Dimension(L*W*H):
-
50*20*8m
-
Motor Power (Kw):
-
90/110/2132/160/220
-
Power (kW):
-
300 etc.
-
Weight (KG):
-
15000 KG
-
Name:
-
Biomass Pellet Production Line
-
Raw material:
-
Sawdust, Wood, Baggase, Grass, Coffee Grounds
-
Usage:
-
Making wood pellets
-
Spare parts:
-
Ring dies/ flat dies/ matrixes/ roller assembly
-
Machine type:
-
Vertical or Horizontal ring die type
Quick Details
-
Pellet Diameter (mm):
-
6 - 12
-
Output (kg/h):
-
1000 - 20000 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
IKLAY
-
Voltage:
-
380V/415V/440V or customized
-
Dimension(L*W*H):
-
50*20*8m
-
Motor Power (Kw):
-
90/110/2132/160/220
-
Power (kW):
-
300 etc.
-
Weight (KG):
-
15000 KG
-
Name:
-
Biomass Pellet Production Line
-
Raw material:
-
Sawdust, Wood, Baggase, Grass, Coffee Grounds
-
Usage:
-
Making wood pellets
-
Spare parts:
-
Ring dies/ flat dies/ matrixes/ roller assembly
-
Machine type:
-
Vertical or Horizontal ring die type

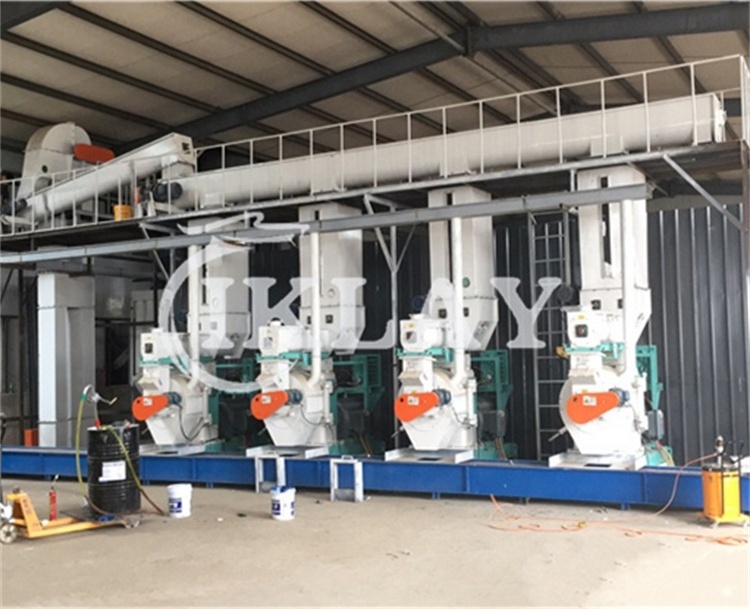

We provide two kinds of wood pellet machines:
1. Technical Parameter (Horizontal Ring Die Wood Pellet Machine/ Wood Pellet Mill)
| Model | Constituent part | Power | Pellet size | Capacity | Weight | Dimension |
| (KW) | (mm) | (Wood Sawdust ,Biomass) | (KG) | (mm) | ||
| MZLH320 | Screw Feeder | 1.1KW | 4-12mm | 0.3-0.4T/H | 1500KG | 2200*900*1300 |
| Force Feeder | 0.55KW | |||||
| Pellet machine | 37KW | |||||
| MZLH350 | Screw Feeder | 1.1KW | 4-12mm | 0.5-0.6T/H | 2200KG | 2500*1100*1600 |
| Force Feeder | 0.55KW | |||||
| Pellet machine | 55KW | |||||
| MZLH420 | Screw Feeder | 2.2KW | 4-12mm | 0.8- 1.2T/H | 3200KG | 2900*1150*2100 |
| Force Feeder | 1.5KW | |||||
| Pellet machine | 90/110KW | |||||
| MZLH508 | Screw Feeder | 3KW | 4-12mm | 1.5-2.0T/H | 4500KG | 3000*1260*2150 |
| Force Feeder | 1.5KW | |||||
| Pellet machine | 110/132KW | |||||
| MZLH678 | Screw Feeder | 3KW | 4-12mm | 2.0-2.5T/H | 5800KG | 3300*1450*2200 |
| Force Feeder | 2.2KW | |||||
| Pellet machine | 160/200KW | |||||
| MZLH768 | Screw Feeder | 3KW | 4-12mm | 2.5-3.5T/H | 6500KG | 3300*1550*2200 |
| Force Feeder | 2.2KW | |||||
| Pellet machine | 200/220KW |
2. Technical Parameter (Vertical Ring Die Wood Pellet Machine/ Wood Pellet Mill)
| Model | Capacity | Power(kw) | Ring Die Diameter(mm) | Pellet Size | Weight | |
| (t/h) | Main | Feeder | (mm) | (T) | ||
| XGJ560 | 1.2-1.5 | 90/110 | 2.2 | Φ560 | Φ6,Φ8,Φ10,Φ12 | 2.8 |
| XGJ630 | 1.5-2.0 | 110/132 | 2.2 | Φ630 | Φ6,Φ8,Φ10,Φ12 |
3.5 |
| XGJ700 | 2.0-3.0 | 160 | 3 | Φ70 0 | Φ6,Φ8,Φ10,Φ12 | 4.0 |
| XGJ850 | 2.5-3.5 | 200/220 | 3 | Φ850 | Φ6,Φ8,Φ10,Φ12 | 4.2 |
