Quick Details
-
Model Number:
-
MTW-A03-N1
-
Type:
-
Touch Switch, mirror touch sensor switch
-
Power:
-
5A/60W
-
Sensing Range:
-
0
-
Working Voltage:
-
DC12V/24V
-
Color:
-
White/Black
-
LED Indicator:
-
ON mode-Blue; OFF mode-White
-
Max load power:
-
5A/60W
-
Function:
-
on off + dimming
-
product size:
-
49.5*47.5*10mm
-
Application:
-
For 1-5mm Mercury Mirror
-
warranty period:
-
2 year
-
Keywords:
-
led mirror touch switch
Quick Details
-
Voltage:
-
DC12V/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FICLUX
-
Model Number:
-
MTW-A03-N1
-
Type:
-
Touch Switch, mirror touch sensor switch
-
Power:
-
5A/60W
-
Sensing Range:
-
0
-
Working Voltage:
-
DC12V/24V
-
Color:
-
White/Black
-
LED Indicator:
-
ON mode-Blue; OFF mode-White
-
Max load power:
-
5A/60W
-
Function:
-
on off + dimming
-
product size:
-
49.5*47.5*10mm
-
Application:
-
For 1-5mm Mercury Mirror
-
warranty period:
-
2 year
-
Keywords:
-
led mirror touch switch

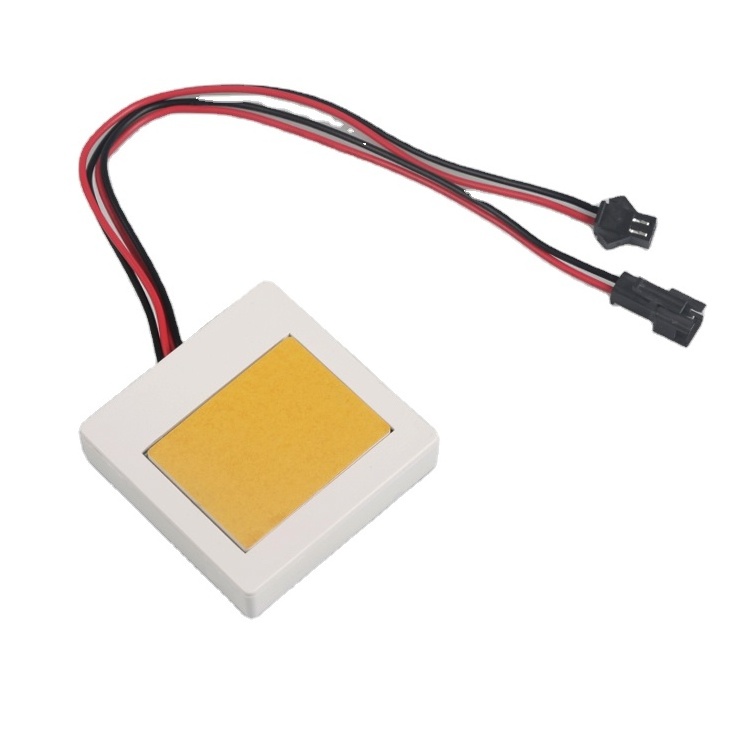

LED Light Mirror Touch Dimmer Control Sensor Switch for Smart Bathrrom
*
The
Mirror Touch Dimmer Switch
is a smart switch specially designed for all kinds of bathroom smart light mirrors,
bathroom antifog light mirrors, LED light mirrors,
mirror c
abinets and other products, and
for
control closed areas
are
formed in the places of the buttons by removing the reflective layer.
ATTENTION!
The outer contour of the
picture must be closed! An open contour of the pattern is not allowed.
*
This
touch
switch
has a beautiful appearance, reliabl
e performan
ce, installation convenience, slim size, sensitive touch
etc. , suitable for touch sensing control on the surface of various mirror lamps or other glass.
*
The
smart touch control sensor switch
is used to turn on / off
12V or 24V LED lamps
with power up to
5A
60W
.
*
The switch is equipped with
3 modes(on/off; dimming; color adjusable)
available.
*
This sensor switch will
memorize the status of the dimming
in 12V-24VDC.
|
Product Name
|
One-button Mirror Touch Dimmer Switch
|
|
|
||
|
Model No.
|
MTW-A01-N1
|
MTW-A03-N1
|
MTW-B02-N1
|
||
|
Function
|
ON/OFF
|
ON/OFF
+Dimming
|
Color Adjustable+ Dimming
|
||
|
Working Voltage
|
12V-24VDC
|
|
|
||
|
Max Load
|
5A 60W Max
|
|
|
||
|
LED Indicator
|
Blue (ON Mode); White (OFF Mode)
|
|
On(White); Off(Blue)
|
||
|
Cable Length
|
Input: 20cm；
Output: 20cm
|
|
|
||
|
Color Available
|
White or Black
|
|
|
||
|
Dimension
|
49.5 x 47.5 x 10mm
|
|
|
||
|
Support Mirror Thickness
|
≤ 5mm
|
|
|
||
|
Touch Principle
|
Capacitive Touch
|
|
|
||
NOTE!
Touch switches are demanding on the quality of the power source. Before buying a power supply, be sure to consult with our manager. The manager will select for you a power source that is guaranteed to be compatible with the sensor you have chosen.
Incorrect selection of the power supply may result in the failure of the sensor (this is not a warranty case).
NOTE!
Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct installation and operability, it is recommended to
fix the fixing plate additionally with the help of glue-sealant for mirrors or glue for a heat gun.
