Quick Details
-
Model Number:
-
16inch corrugated pipe
-
Specification:
-
SN4/SN8 corrugated pipe
-
Length:
-
5.8m/6m
-
Thickness:
-
Standard Thickness
-
Standard:
-
GB/T19472.1-2004
-
Product name:
-
High Quality 16 inch double wall corrugated culvert pipe
-
Color:
-
Outside surface is black inside surface is black yellow or blue
-
Connection:
-
Socket Joint
-
Appearance:
-
Outside corrugated inside smooth
-
Size:
-
40mm-2200mm corrugated pipe
-
Application:
-
Drainage and sewerage corrugated pipe
-
Temperature:
-
-60℃-60℃
-
H.S Code:
-
3917210000
-
Certification:
-
CE ISO SGS
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
DRD
-
Model Number:
-
16inch corrugated pipe
-
Specification:
-
SN4/SN8 corrugated pipe
-
Length:
-
5.8m/6m
-
Thickness:
-
Standard Thickness
-
Standard:
-
GB/T19472.1-2004
-
Product name:
-
High Quality 16 inch double wall corrugated culvert pipe
-
Color:
-
Outside surface is black inside surface is black yellow or blue
-
Connection:
-
Socket Joint
-
Appearance:
-
Outside corrugated inside smooth
-
Size:
-
40mm-2200mm corrugated pipe
-
Application:
-
Drainage and sewerage corrugated pipe
-
Temperature:
-
-60℃-60℃
-
H.S Code:
-
3917210000
-
Certification:
-
CE ISO SGS

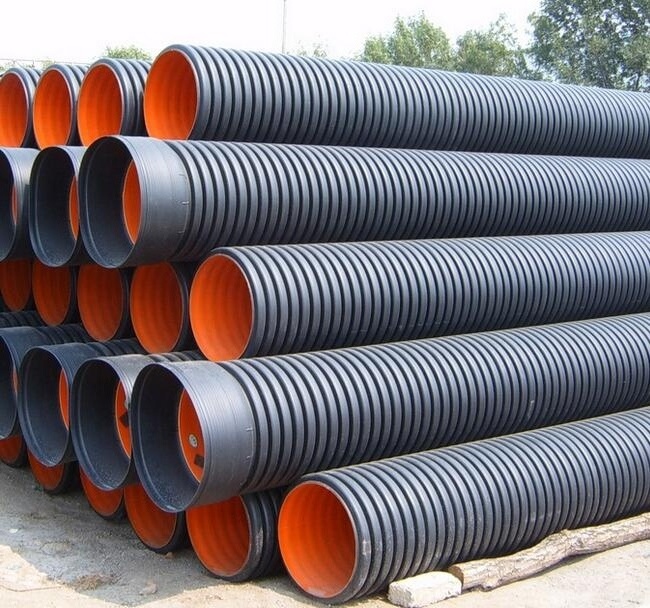

High Density Polyethylene (HDPE) Double Wall Corrugated Sewer and Drainage Pipes are for gravity and low pressure sewerage and drainage such as waste water, sanitary sewer and storm sewerage for municipal or industrial use.
The pipes provide important benefits and distinct advantages for sewer and drainage applications.
High Quality 16 inch double wall corrugated culvert pipe
| Product | Ring Stiffness | ID/OD | Ring Stiffness | ID/OD |
| HDPE Double Wall Corrugated Pipe | SN4 | 186/208 | SN8 | 186 / 208 |
| 215/243 | 2 15 /243 | |||
| 279/309 | 279/309 | |||
| 380/421 | 380/421 | |||
| 446/520 | 446 / 520 | |||
| 584/655 | 584 / 655 | |||
| 687/762 | 687 / 762 | |||
| 772/840 | 772 / 840 |
Applications
Advantages
• Length can be customized according to site requirement means lesser number of joints between sumps
• Lightweight can manually lifted for unloading, handling and installation
• Strong and flexible, capable of taking standard traffic loading at low cover
• Economical and cost effective • Good abrasion resistance
• Efficient, Durable, economical • Easy installation and joints
Applications
Sewerage and drainage.
• Frontage drains for terrace and other residential units in
housing schemes.
• Perimeter drains for commercial, industrial units and individual factories. • As collector drains in subsoil system in road, highway, open field,
stadium, retaining wall or parking space.
• As collector drains in subsoil system, sewerage treatment plant sludge
drying bed under drains.
| Item | HDPE Double Wall Corrugated Pipe | Concrete pipe | PVC Double Wall Corrugated Pipe |
| Feature | Flexible | Rigid | Flexible |
| Corrosion resistance | It will not be corroded when dealing with sea water and acid&alkaline condition. | It is easy to be corroded. | It will not be corroded when dealing with sea water and acid&alkaline condition. |
| Structural feature | Loading may lead to slight deformation, but will not influence on structure. | Loading may lead to breaking and leakage. Poor impact resistance. | Loading may lead to slight deformation, but will not influence on structure. |
| Connection method and seal feature | It will be connected by flexible rubber sealing ring. If it is connected properly, there will be no leakage. | if not connected properly, it will lead to leakage and consequently pollution to underground water. | If it is connected properly, there will be no leakage. |
| Construction performance | It is easy to be connected. The cost for transportation and engineering is low. The engineering process will not be influenced by temperature. | It is difficult to be connected.The cost for transportation and engineering is high. | It is easy to be connected. The engineering process will be influenced by temperature. |
| Usage and maintenance | 50 years service life, high safe coefficient, easy maintenance. | 20 years service life, high safe coefficient, difficult maintenance | 50 years service life, high safe coefficient, difficult maintenance |
Connection Type
