2.4 inch touch screen digital voltage panel meter volt meter with programmable software

2.4 inch touch screen digital voltage panel meter volt meter with programmable software

FOB Reference Price: Get Latest Price

≥1 Pieces

US $89.95

≥5 Pieces

US $86.35

≥10 Pieces

US $83.65

≥25 Pieces

US $80.96

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SGD 24-M

Operating Temperature:: 0 to 40°C

Dimensions:: 76.5 x 48.5mm

Analogue input:: x 2

Linearity:: +/- 1 count

Viewing Area:: 49.5 x38 mm

Quick Details

Measuring Range:: 0 to 40V d.c.

Place of Origin:: China

Brand Name:: PanelPilot

Model Number:: SGD 24-M

Operating Temperature:: 0 to 40°C

Dimensions:: 76.5 x 48.5mm

Analogue input:: x 2

Linearity:: +/- 1 count

Viewing Area:: 49.5 x38 mm

Overview

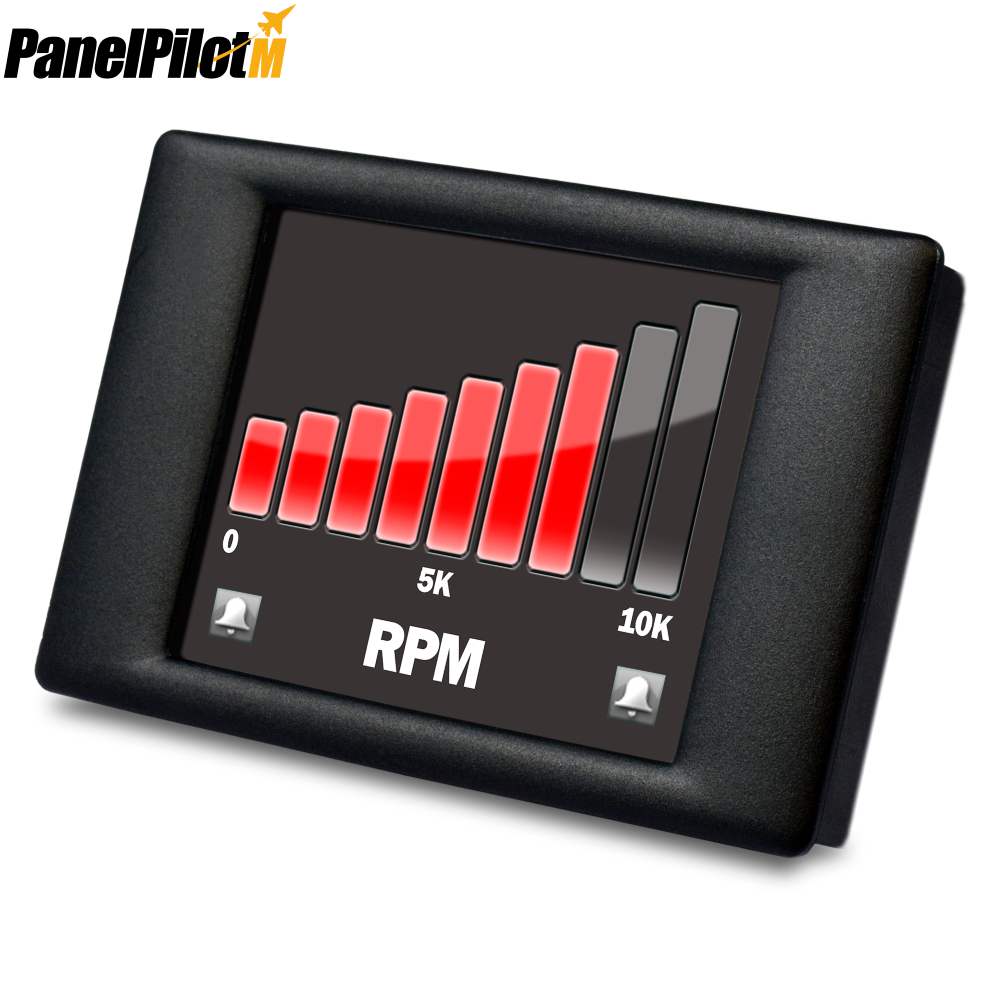

The SGD 24-M is a programmable panel meter featuring dual analogue inputs, alarm outputs and 2.4” TFT colour touchscreen display. Configured using the free PanelPilot M Software for Windows, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customise colours, text labels, units and input scaling before uploading to a display via USB.

Specification

Easy To Use - 6 Simple Steps

Step 1. Configurations Users choose from an ever-increasing library of configurations including analogue, digital and bar graph styles with single or dual analogue inputs. Each PanelPilot user will automatically receive access to the latest configurations and updates each time they open the PanelPilot software.


Step 2. Colours & Labels Every element of the configuration can be individually coloured. On certain configurations the ‘fX’ button will create a gradient fill across the elements. Text labels are also fully editable.

Step 3. Scaling Voltage input levels can be set using the software. This removes the need for scaling resistors on input voltages up to 40Vd.c.


Step 4. Start Up Screen On power-up, a PanelPilot display can be set to show an image of your choice, such as a logo.

Step 5. Upload Configuration Connect a PanelPilot compatible display to the PC with a USB cable and upload the configuration. Customised configurations can also be saved for future use.


Step 6. Connect Your PanelPilot compatible display now has your configuration saved in memory and can be connected to your application. You can reconfigure your display at any time. Just connect via USB and run through the steps above.
