* High Temperature Resistance Parts
* Nozzles
* Ball valve parts
* Heat exchangers
* Fixed and moving turbine components
* Plungers
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HB
-
Size:
-
customized
-
surface roughness:
-
customized
-
Tolerance:
-
+/- 0.1 mm
-
Density:
-
2.65g/cm3
-
Open porosity:
-
<0.1%
-
Compressive Strength:
-
2500 Mpa
-
Feature:
-
High hardness,wear resistance
-
MOQ:
-
50 pcs
-
Shipping method:
-
DHL,Fedex ,UPS or other
-
Key word:
-
silicon carbide ceramic sleeve
Quick Details
-
Material:
-
Silicon Carbide
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
HKCD33
-
Brand Name:
-
HB
-
Size:
-
customized
-
surface roughness:
-
customized
-
Tolerance:
-
+/- 0.1 mm
-
Density:
-
2.65g/cm3
-
Open porosity:
-
<0.1%
-
Compressive Strength:
-
2500 Mpa
-
Feature:
-
High hardness,wear resistance
-
MOQ:
-
50 pcs
-
Shipping method:
-
DHL,Fedex ,UPS or other
-
Key word:
-
silicon carbide ceramic sleeve
Product Description

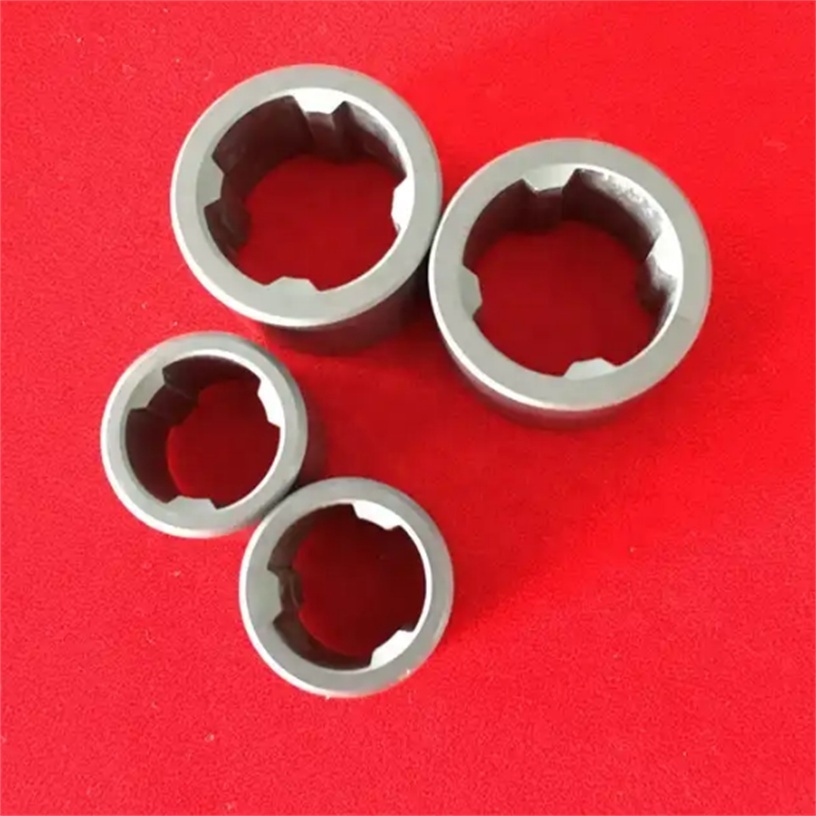

High precision silicon carbide ceramic sleeve ring sic silicon carbide ceramic bushing
Silicon Carbide (SiC) has properties remarkably similar to those of diamond – it is one of the lightest, hardest, and strongest technical ceramic materials, is the most corrosion-resistant and wear-resistant ceramic, it has exceptional thermal conductivity, resistance to acids, and low thermal expansion. used in mechanical seals and pump parts.
|
Material
|
silicon carbide
|
|
Size
|
Customized
|
|
Feature
|
Wear resistance,corrosion resistance
|
|
Payment
|
T/T,Western Union,Online payment by credit card are available
|
|
Thransport
|
express transport: 5-10 days; Ocean shipping: About one month.
|
|
Delivery Time
|
1.Stock:delivery within 3-5 days after receiving your payment.
2. OEM:The normal Lead time is 15-45 days, which depends on your quantity. |
silicon carbide ceramic sleeve Application
* High Temperature Resistance Parts
* Nozzles
* Ball valve parts
* Heat exchangers
* Fixed and moving turbine components
* Plungers
Features of silicon carbide ceramic bushing
1. High Hardness, Out Standing Wear Resistance
2. High Strength Over A Wide Temperature Range
3. Excellent Thermal Shock Resistance
4. Excellent Oxidation Resistance
5. Very Low Friction Coefficient
6. Low Thermal Expansion and High Thermal Conductivity
2. High Strength Over A Wide Temperature Range
3. Excellent Thermal Shock Resistance
4. Excellent Oxidation Resistance
5. Very Low Friction Coefficient
6. Low Thermal Expansion and High Thermal Conductivity
Technical Parameters
|
Technical Parameter
|
Unit
|
SiC
|
SSiC
|
Sic+C
|
|
Hardness
|
HS
|
110
|
115
|
≥105
|
|
Porosity Rate
|
%
|
<0.3
|
<0.2
|
<0.5
|
|
Density
|
g/cm3
|
3.00~3.05
|
>3.10
|
2.69-2.90
|
|
Compressive Strength
|
MPa
|
>2200
|
>2500
|
>1400
|
|
Fractural Strength
|
MPa
|
>350
|
>380
|
>150
|
|
Coefficient of Heat Expansion
|
10-6/oC
|
4.0
|
4.2
|
3.5
|
|
Content of Sic
|
%
|
≥90
|
≥98
|
≥85
|
|
Free Si
|
%
|
≤10
|
≤1
|
≤12
|
|
Elastic Modulus
|
GPa
|
≥400
|
≥410
|
≥350
|
|
Temperature
|
oC
|
1300
|
1400
|
1300
|
Our Company
Based on quartz and ceramics, after more than 20 years development, Highborn Group has grown up to a modern enterprise in research, manufacture, processing and sales. We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics,thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 109 countries or regions.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.
Honor Certificates
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE,MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
Packing & Delivery
Regarding the package,we usually use carton with bubble wrap.If you need special package,please inform us the detailed information of package kindly,we will pack them according to your requirements.
Regarding the delivery,we support to send you our products by air,by sea ,by train or other
Our Service
We not only attach great importance to product quality, but also pay attention to constantly improve the customer service system.
Our mature and perfect production service system obtain customer satisfaction.
1. OEM Service.
2. More than 10 years-golden supplier of precise ceramic.
3. Professional package to ensure the transportation with no goods damaged.
4. Sampling Service.
5. Customized ceramics according to customer requirements and drawings, also design packaging and printing logo service.
6. After-sales service. Quick response, 100% feedback.
1. OEM Service.
2. More than 10 years-golden supplier of precise ceramic.
3. Professional package to ensure the transportation with no goods damaged.
4. Sampling Service.
5. Customized ceramics according to customer requirements and drawings, also design packaging and printing logo service.
6. After-sales service. Quick response, 100% feedback.
FAQ
Answer: With the development more than 20 years, now we have 6 business division and we are supplying Quartz Glass (Tube, Rod,Plate and customized parts), optical glass and cuvette, and also various precise ceramics, porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator and porous metal fiber felt. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3 days, however if need processing, we can deliver out within 15days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 110 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
