Quick Details
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UFEC
-
Dimension(L*W*H):
-
2000x1300x2250mm
-
Weight:
-
2250 KG
-
Pipe diameter:
-
29mm
-
Output:
-
5000kg/24h
-
Cooling capacity:
-
30kw
-
Operating power:
-
18kw
-
Compressor horsepower:
-
28 HP
-
Circulating water pump power:
-
1.5kw
-
Ice cutting motor power:
-
1.1kw
-
Operating current:
-
36 A
-
Cooling method:
-
Water cooling
-
Equipment structure:
-
Monolithic
Quick Details
-
Ice Shape:
-
tube ice
-
Voltage:
-
380V
-
Power:
-
25kw
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UFEC
-
Dimension(L*W*H):
-
2000x1300x2250mm
-
Weight:
-
2250 KG
-
Pipe diameter:
-
29mm
-
Output:
-
5000kg/24h
-
Cooling capacity:
-
30kw
-
Operating power:
-
18kw
-
Compressor horsepower:
-
28 HP
-
Circulating water pump power:
-
1.5kw
-
Ice cutting motor power:
-
1.1kw
-
Operating current:
-
36 A
-
Cooling method:
-
Water cooling
-
Equipment structure:
-
Monolithic

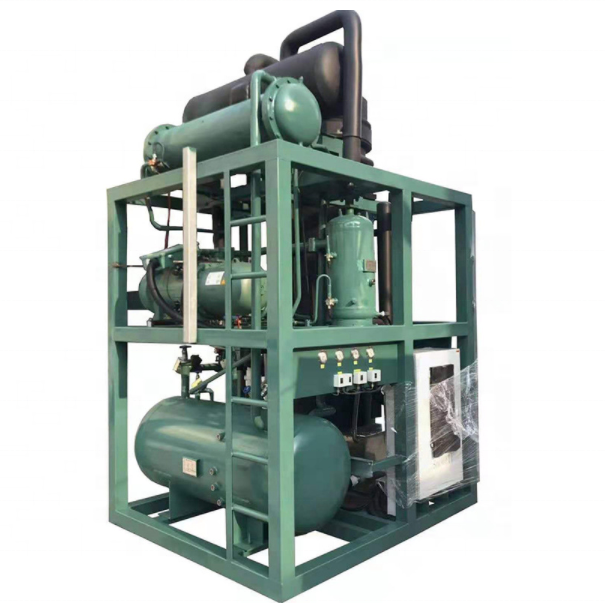

Tube Ice Machine
【Product introduction】
The tube ice made by the equipment is transparent and beautiful. applied to cold drinkings, restaurants, bars, café, supermarkets and convenience Store, food processings etc.
Power supply: 380 V/220 V/240 V/110 V
Ice tube diameter: 29 mm
Refrigerant: R404A
【
Features
】
Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements.
The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
Half-full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable.
|
Model
|
5T
|
Pipe diameter
|
φ29
|
|
Output (KG/24H)
|
5000
|
Cooling capacity (KW)
|
30
|
|
Unit installation power (KW)
|
25
|
Operating power (KW)
|
18
|
|
Compressor brand
|
Bitzer
|
Compressor horsepower (HP)
|
28
|
|
Circulating water pump power (KW)
|
1.5
|
Ice cutting motor power (KW)
|
1.1
|
|
Operating current (A)
|
36
|
Air switch model (A)
|
100
|
|
Cooling method
|
Water cooling
|
Power system
|
Customized
|
|
Refrigerant system
|
Customized
|
Sufficient amount of refrigerant
|
120kg
|
|
Equipment structure
|
Monolithic
|
Evaporator size (MM)
|
/
|
|
Unit size (MM)
|
2000x1300x2250
|
Equipment weight (KG)
|
2250
|
|
Tube ice temperature (degrees Celsius)
|
-2
|
|
|
