Quick Details
-
Max Sewing Thickness:
-
80mm
-
Voltage:
-
380v/customized
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
8500*3500*1600mm
-
Weight:
-
3000
-
Machine name:
-
mattress quilting machine
-
Patterns:
-
customized
-
Key words:
-
mattress cutting machine
-
Application:
-
mattress,blanket,cushions,quilt,etc
-
Max material width:
-
2400mm
-
Color:
-
white,yellow,green or customized
-
Pattern format:
-
DST
-
Automatic thread trimming function:
-
yes
-
Cross cutting function:
-
yes
-
Motor:
-
servo type
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HS
-
Max Sewing Speed:
-
3000r/min
-
Max Sewing Thickness:
-
80mm
-
Voltage:
-
380v/customized
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
8500*3500*1600mm
-
Weight:
-
3000
-
Machine name:
-
mattress quilting machine
-
Patterns:
-
customized
-
Key words:
-
mattress cutting machine
-
Application:
-
mattress,blanket,cushions,quilt,etc
-
Max material width:
-
2400mm
-
Color:
-
white,yellow,green or customized
-
Pattern format:
-
DST
-
Automatic thread trimming function:
-
yes
-
Cross cutting function:
-
yes
-
Motor:
-
servo type
Products Description

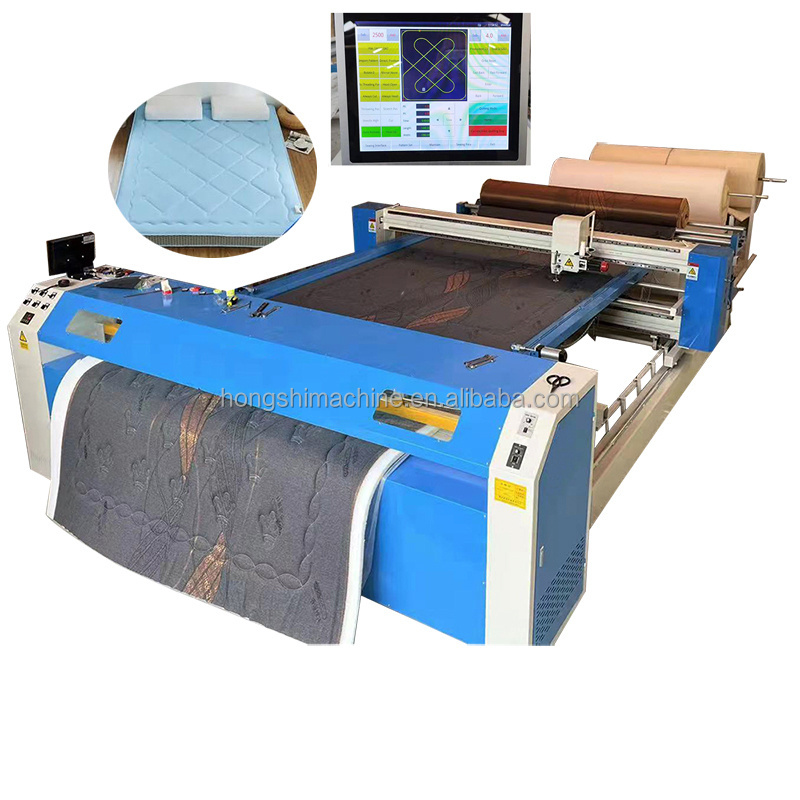

Sponge Mattress Multi-Pattern Computerized Mattress Quilting Cutting Machine
1. Automatic materials feeding, spreading, quilting and cutting, the speed can reach 2500 rpm.
2. Automatic thread trimming, broken thread detection, infrared protection, return to complement the quilting function.
3. The automatic oil supply system effectively lubricates the parts of the machine head and prolongs the service life of the machine.
4. Stitch length selection, angle correction, pattern zooming.
5. Adopt servo motor control, high precision and high output.
6. Imported large rotary hook, no need to replace the bottom thread frequently
7. Powerful memory capability computer system can accurately quilt various complex graphics. Intermittent power on can maintain continuous quilting of the pattern. The noise and vibration are small, and the operation is accurate and stable.
8. There are 3000 design in the machine,special patterns can be customized.
Technical parameter
|
Model
|
HS-3500
|
|
Power
|
8.8kw
|
|
Quilting speed
|
3000r/min
|
|
Quilting thickness
|
<80mm
|
|
Install size
|
8500*3500*1600mm
|
|
Weight
|
3000kg
|
|
Pattern format
|
DST or DAT
|
|
Mattress width
|
<2400mm
|
|
Mattress length
|
adjustable
|
Details Images
There are around 1000kinds of designs in the machine
Application
Quilting advanced mattress fabrics, bedding, home decoration and other various patterns. Also can quilted leather sofa cushion, mattress, seat, car leather seat, foot mat, blanket, thin quilt, insulation quilt, etc.
Package and delivery
