Quick Details
-
Brand Name:
-
Sonyang
-
Model Number:
-
EDR-120W
-
Output Frequency:
-
47~63 Hz
-
Output Current:
-
24A 10A 5A
-
Over load protection::
-
120% hiccup mode, auto- recovery
-
Input Withstand voltage::
-
I/P-O/P:1.5KvAC ; I/P- FG: 1.5Kv AC
-
Error::
-
±2% ±1% ±1%
-
Over-voltage protection::
-
120% Shut off o/p voltage, clamping by zener diode
-
Output Withstand Voltage::
-
O/P- FG: 0.8Kv AC
-
Working temperature::
-
-20℃~+70℃,20%~90%RH
-
Range::
-
80mV 100mV 150mV
-
Size:
-
40*125.2*113.5mm
Quick Details
-
Input Voltage:
-
90~264VAC 127~373VDC
-
Output Voltage:
-
5V 12V 24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sonyang
-
Model Number:
-
EDR-120W
-
Output Frequency:
-
47~63 Hz
-
Output Current:
-
24A 10A 5A
-
Over load protection::
-
120% hiccup mode, auto- recovery
-
Input Withstand voltage::
-
I/P-O/P:1.5KvAC ; I/P- FG: 1.5Kv AC
-
Error::
-
±2% ±1% ±1%
-
Over-voltage protection::
-
120% Shut off o/p voltage, clamping by zener diode
-
Output Withstand Voltage::
-
O/P- FG: 0.8Kv AC
-
Working temperature::
-
-20℃~+70℃,20%~90%RH
-
Range::
-
80mV 100mV 150mV
-
Size:
-
40*125.2*113.5mm
Product Description
| Specification Parameter | |||

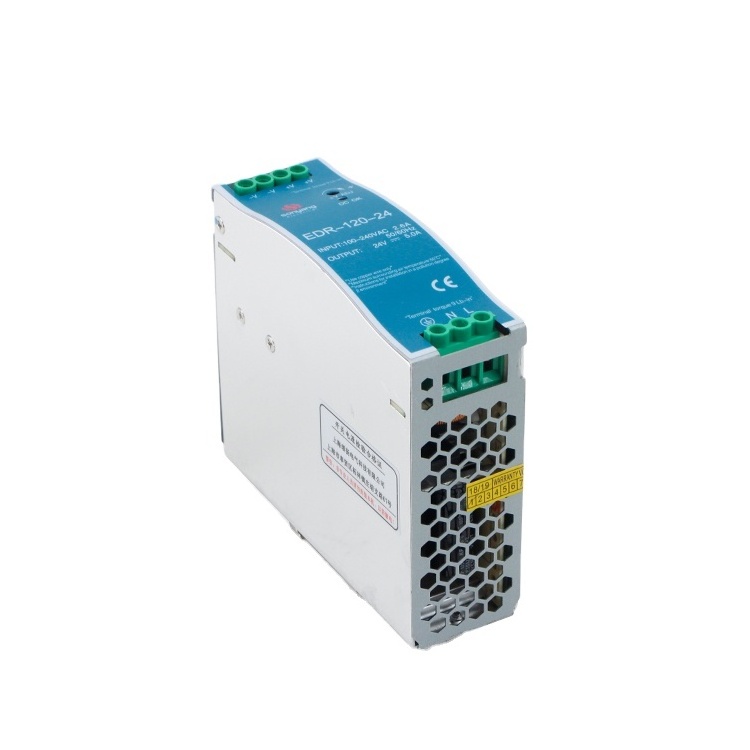

| Model | EDR-120-5 | EDR-120-12 | EDR-120-24 |
| Output | 5V,0~24A | 12V,0~10A | 24V,0~5A |
| Error | ±2% | ±1% | ±1% |
| Range | 80mV | 100mV | 150mV |
| Efficiency | 0.8 | 0.86 | 0.88 |
| Net Weight | 0.45kg | ||
| Gross Weight | 0.55kg | ||
| L*W*H | 40×125.2×113.5mm | ||
| Packaging | 0.27kg; 48pcs/14kg/0.03m³/1.05CUFT | ||
| Laboratory Testing Data | |||
| AC input voltage range | 90~264 VAC/127~373 VDC | ||
| Over load protection | 120% hiccup mode, auto- recovery | ||
| Over-voltage protection | 120% Shut off o/p voltage, clamping by zener diode | ||
| Input Withstand voltage | I/P-O/P:1.5KvAC ; I/P- FG: 1.5Kv AC | ||
| Output Withstand Voltage | O/P- FG: 0.8Kv AC | ||
| output frequency | 47~63 Hz | ||
| Working temperature | -20℃~+60℃,20%~90%RH | ||
