Quick Details
-
Brand Name:
-
KASON
-
Model Number:
-
KS-U113
-
Interior size:
-
W1100 X H700 x D300mm
-
Temp. control mode:
-
PID self-adjustment SSR control
-
Temp. range:
-
1200x800x500
-
Temperature Uniformity:
-
RT+10℃ ~ 70℃ (adjustable)
-
Temp. deviation:
-
±2.0℃
-
Temp. fluctuation:
-
±0.5℃
-
Humidity range:
-
≥93%R.H (not adjustable)
-
Temp. uniformity:
-
±1℃
-
Distance between lamps:
-
70mm
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KASON
-
Model Number:
-
KS-U113
-
Interior size:
-
W1100 X H700 x D300mm
-
Temp. control mode:
-
PID self-adjustment SSR control
-
Temp. range:
-
1200x800x500
-
Temperature Uniformity:
-
RT+10℃ ~ 70℃ (adjustable)
-
Temp. deviation:
-
±2.0℃
-
Temp. fluctuation:
-
±0.5℃
-
Humidity range:
-
≥93%R.H (not adjustable)
-
Temp. uniformity:
-
±1℃
-
Distance between lamps:
-
70mm

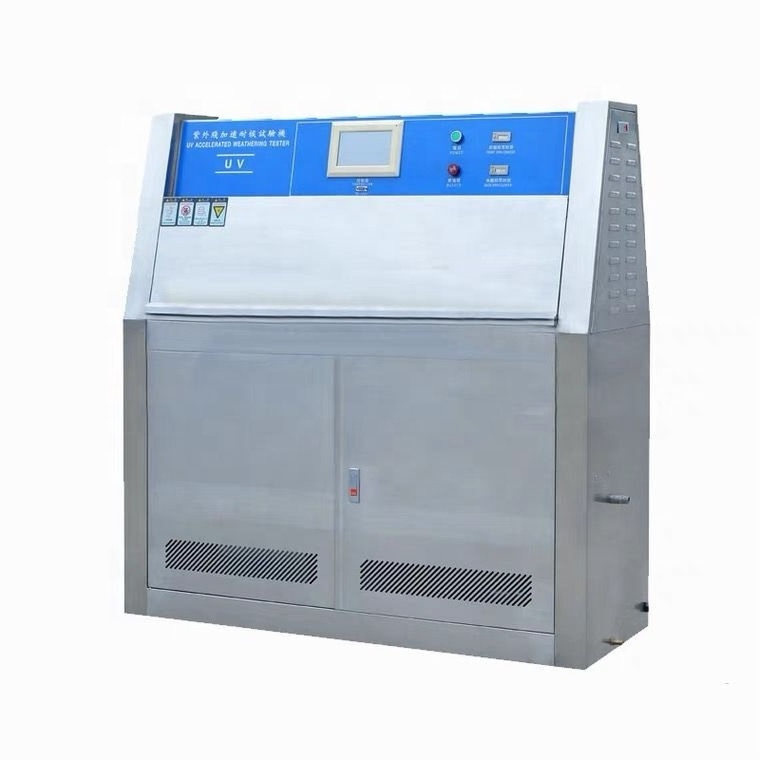

KASON UV Light Accelerated Aging Test Chamber,Anti Ultraviolet Test Machine, UV Accelerated Weathering Tester
1. Function
The UV Accelerated weathering test chamber stimulates dew and rain with consideration for humidity and/or water sprayequipped with fluorescent UV lamps which can completely simulate the UV spectra of sunlight, exposes materialstoalternating cycles of UV light and moisture at controlled, elevated temperatures. It’s most widely used weatheringtesterto test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strengthlossand oxidation. The source adopts 8 pieces of UV lamps of 40W as the light source. The lamps are distributed onthetwosides of machine, 4 pieces for each side (UVA-340 and UVB-313 optional), 8 pieces in total .
3 . Main Parameters
|
1. Main technical parameters |
|
|
Item |
UV aging test chamber |
|
Interior size |
W1100 X H700 x D300mm |
|
Weight |
160kgs appr. |
|
Controller |
- LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes. - USB interface - Operation button - Alarm indicator - Irradiation timer |
|
Temp. control mode |
PID self-adjustment SSR control |
|
Temp. range |
RT+10 ℃ ~ 70 ℃ (adjustable) |
|
Temp. deviation |
±2.0 ℃ |
|
Temp. fluctuation |
±0.5 ℃ |
|
Humidity range |
≥93%R.H (not adjustable) |
|
Temp. uniformity |
±1 ℃ |
|
Temp. fluctuation |
±0.5 ℃ |
|
Distance between lamps |
70mm |
