Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GW
-
Model Number:
-
GW-ABT
-
Product name:
-
ANCHOR BOLT
-
Standard:
-
L Type Anchor bolt.
-
Diameter:
-
3/8" 1/2" 5/8" 3/4" 1"
-
Length:
-
6",8",10",12",14" 16" 18" 24" 36"
-
Finish:
-
HDG
-
Usage:
-
used to attach sill plates to concrete or masonry foundations,
Quick Details
-
Material:
-
ZINC, Hot dipped galvanized
-
Type:
-
ANCHOR BOLT
-
Size:
-
3/8" 1/2" 5/8" 3/4" 1"
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GW
-
Model Number:
-
GW-ABT
-
Product name:
-
ANCHOR BOLT
-
Standard:
-
L Type Anchor bolt.
-
Diameter:
-
3/8" 1/2" 5/8" 3/4" 1"
-
Length:
-
6",8",10",12",14" 16" 18" 24" 36"
-
Finish:
-
HDG
-
Usage:
-
used to attach sill plates to concrete or masonry foundations,

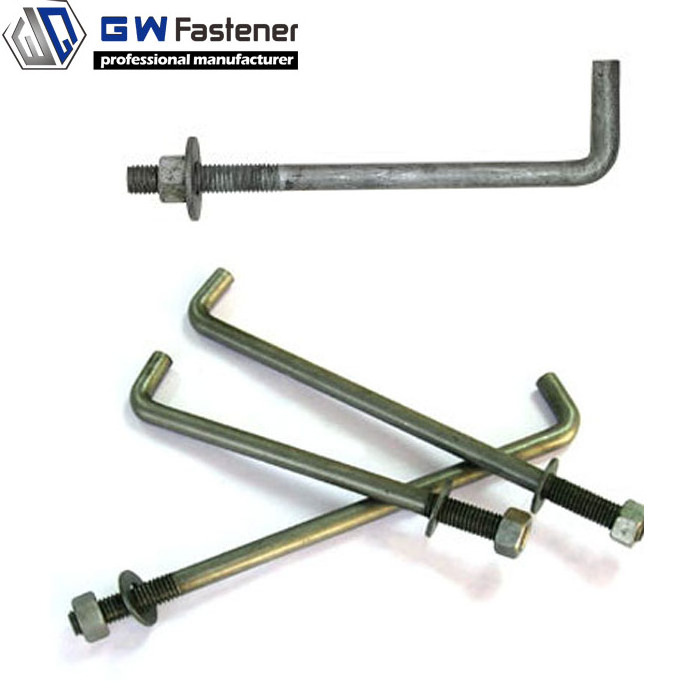

Heavy Duty Light Pole Hot Dipped Galvanized L Bent anchor bolt
Anchor bolts are used throughout construction to support beams, plates, ledgers, and other support structures in buildings and to attach beams and structures to masonry and concrete. They are embedded in walls, columns, and framing to provide support for beams and plates in load-bearing and non-load-bearing walls. They are also embedded in concrete or masonry to anchor signs, support foundations, beams, and structures.
Our anchor bolts consist of a threaded end, nut, and washer and have an L-shaped end to provide a secure anchor.
Material
ASTM F1554 Grade 36
Finish
Unfinished, available in HDG (per ASTM A153)
Sizes:
|
Anchor Diameter B |
Anchor Length A |
Thread Length D |
Anchor Hook length C |
|
3/8" |
6" |
1 3/4" |
1" |
|
3/8" |
8" |
1 3/4" |
1" |
|
1/2" |
6" |
1 3/4" |
1 1/2" |
|
1/2" |
8" |
1 3/4" |
1 1/2" |
|
1/2" |
10" |
1 3/4" |
1 1/2" |
|
1/2" |
12" |
1 3/4" |
1 1/2" |
|
1/2" |
14" |
2" |
1 1/2" |
|
1/2" |
16" |
2" |
1 1/2" |
|
1/2" |
18" |
2" |
1 1/2" |
|
5/8" |
8" |
2" |
2" |
|
5/8" |
10" |
3 3/4" |
2" |
|
5/8" |
12" |
3 3/4" |
2" |
|
5/8" |
14" |
3 3/4" |
3" |
|
5/8" |
18" |
4" |
3" |
|
3/4" |
12" |
3 3/4" |
3" |
|
3/4" |
15" |
3 3/4" |
3" |
|
3/4" |
16" |
3 3/4" |
3" |
|
3/4" |
18" |
4" |
3" |
|
3/4" |
24" |
4" |
3" |
|
1" |
12" |
4" |
4" |
|
1" |
18" |
4" |
4" |
|
1" |
24" |
4" |
4" |
|
1" |
36" |
6 1/4" |
4" |
