Quick Details
-
Basic Current:
-
5(100)A
-
IP Degree of Protection (IEC 60529):
-
IP51 front display
-
Mounting Type:
-
35mm Standard DIN Rail mounting
-
Humidity Rating:
-
<95% RH at 50 °C (non-condensing)
-
Transmission speed:
-
1200bps~9600bps
-
Data type:
-
Floating point
-
Electrostatic Discharge:
-
IEC 61000-4-2
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
999999.99kwh/kvarh
-
Place of Origin:
-
Zhejiang, China
-
Basic Current:
-
5(100)A
-
IP Degree of Protection (IEC 60529):
-
IP51 front display
-
Mounting Type:
-
35mm Standard DIN Rail mounting
-
Humidity Rating:
-
<95% RH at 50 °C (non-condensing)
-
Transmission speed:
-
1200bps~9600bps
-
Data type:
-
Floating point
-
Electrostatic Discharge:
-
IEC 61000-4-2
Description
Measures KWh Kvarh, KW, PF, HZ, V, A, etc.
Prepaid Recharged
Built-in Relay, Remote Control Switch
Alarm System
Management Software
Rs485 Modbus
Din Rail Mounting 35mm
100A Direct Connection
Better Than Class 1 / 0.5s Accuracy

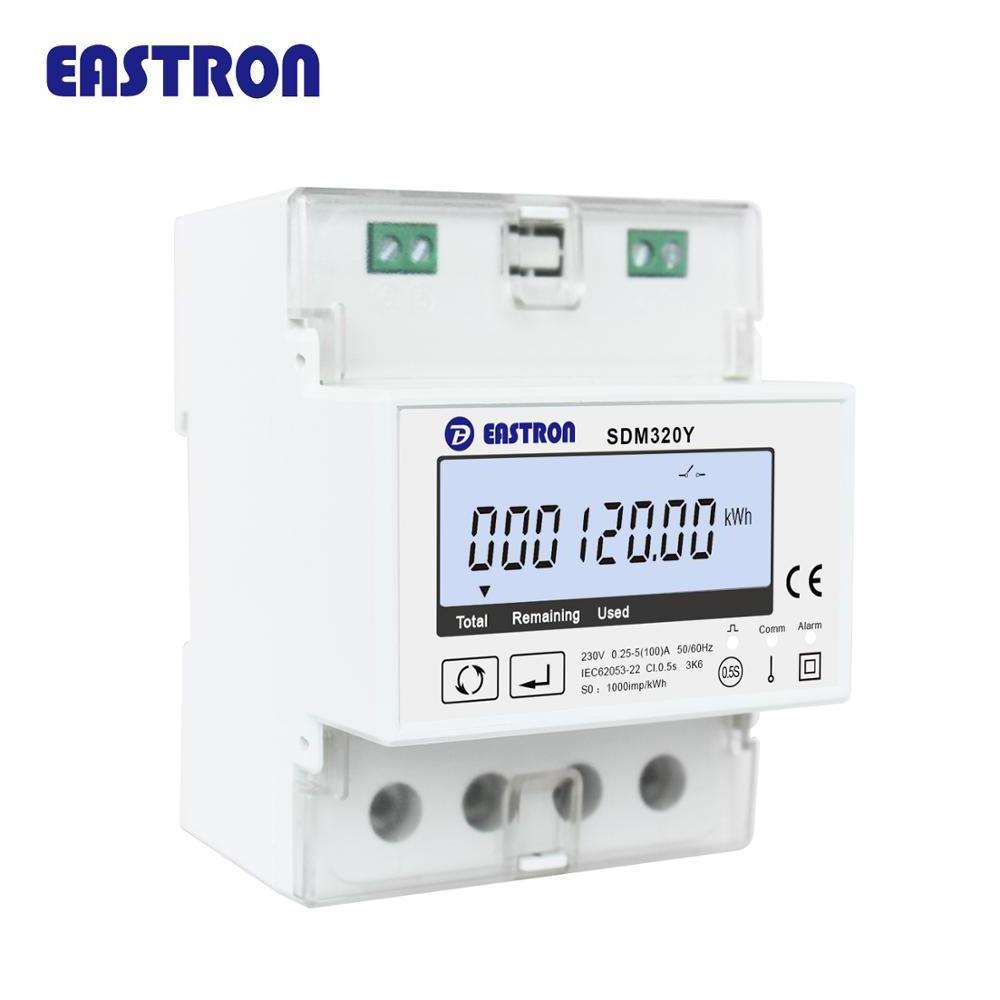

The SDM320Y is Eastron new generation single phase prepaid multifunction remote control din rail meter. It has prepaid recharge function and remote monitor and control function. It has a built-in relay, you can remote control turn off when user balance is zero. Besides, it has alarm system, the meter will remind user automatically in advance when the balance is low.
Besides meter, the management software <EEMP> will can help you manage meters and users more easily and efficiently. There are many functions you can use: registered user, allocation, charge management, invoice printing, parameter setting, currency setting, time setting, data statistics,etc.
SDM320Y measures and displays the characteristics of one phase two wires (1p2w) supplies, including voltage, current, frequency, power, active and reactive energy, imported and exported. Energy is measured in terms of kWh, kvarh. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product.
SDM320Y supports max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.
Q 1:Do you have any MOQ?
A:Yes,MOQ is 100pcs.
Q 2:What is the lead time?
A:Sample time 1-3days,mass production 10~20days for order more than 500pcs
Q 3:Can we put our logo on Energy meters?If yes ,what you need from us?
A :Yes,we can achieve it by silkscreen ,laser etching ,full color etc. Need your logo Ai Format or EPS. OEM with your logo has additional charge. And MOQ for OME is 150pcs.
Q 4:Could you offer the sample even pre-production sample beforeI place the order?
A :We can offer samples to you after you place the order.
Q 5: If I do not like the color, could I change the color ?
A: All of our products we have standard colors like White, black etc, if you need special color, we could customized. The MOQ is 10000pcs.
Q 6:How should I pay for you if I place order to you?
A :Usually, the Payment terms Paypal ,T/T ,West Union could be accepted.30%deposit in advance,70% paid before the shipment.
