Quick Details
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Product Name:
-
SUS304 500L 1000L 2000L 3000L 4000L 5000L Fermentation Tank
-
Standard:
-
CE TUV.
-
Material:
-
SUS 304, SUS 316
-
Polish:
-
0.6um
-
Thickness:
-
Inner:3.0mm, Jacket: 2.0mm
-
Pressure:
-
Test: 0.3Mpa
-
Capacity in liters:
-
100L,300L,500L,1000L, 2000L, 3000L, 4000L,5000L.
-
Capacity in BBL:
-
3BBL, 5BBL, 7BBL, 10BBL, 20BBL, 30BBL, 40BBL.
-
Insulation:
-
100mm Polyurethane
-
After Warranty Service:
-
Video technical support/Online support/Spare parts
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Cassman
-
Voltage:
-
Adjustable
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Product Name:
-
SUS304 500L 1000L 2000L 3000L 4000L 5000L Fermentation Tank
-
Standard:
-
CE TUV.
-
Material:
-
SUS 304, SUS 316
-
Polish:
-
0.6um
-
Thickness:
-
Inner:3.0mm, Jacket: 2.0mm
-
Pressure:
-
Test: 0.3Mpa
-
Capacity in liters:
-
100L,300L,500L,1000L, 2000L, 3000L, 4000L,5000L.
-
Capacity in BBL:
-
3BBL, 5BBL, 7BBL, 10BBL, 20BBL, 30BBL, 40BBL.
-
Insulation:
-
100mm Polyurethane
-
After Warranty Service:
-
Video technical support/Online support/Spare parts

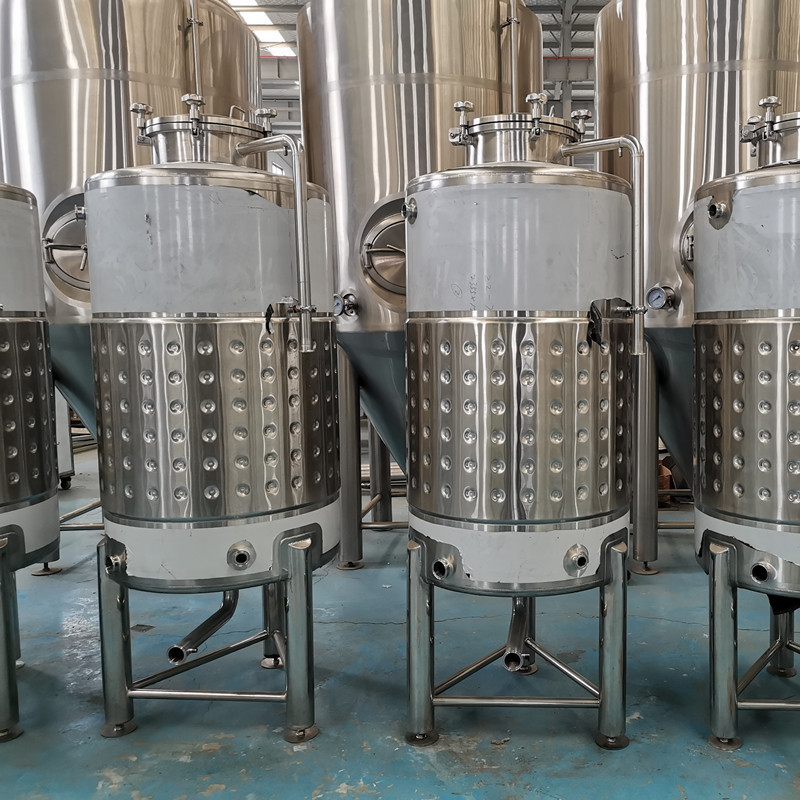

SUS304 500L 1000L 2000L 3000L 4000L 5000L Fermentation Tank with Dimple Cooling Jacket
Cassman is the leading Micro brewery equipment supplier in China, o ur s ervice include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.
W e provide complete beer brewing solutions that include : malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.
Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.
Turnkey Brewery Euipment
1----Mill System
Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
Description: CE listed Motor, Double roller, distance adjustable, stainelss steel 304 material.
Optional: Flexible Auger.
2----Brew House System
-Two-Four vessles or combined system.
-Capacity 100L-5000L, 1bbl-40bbl.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
-Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet . insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
- External grant, hops back, heat exchanger. Wort oxygenation system, working platform.
-All the necessary pipelines and pumps.
| 100L | 200L | 300L | 500L | 1000L | 2000L | 3000L | 5000L |
| 2/3/4 Vessels | 2/3/4 | 2 | 3 | 3 | 3 | 4 | 5 |
3----Fermenter&BBT System
-Capacity: 100L-30000L, 1bbl-100bbl, + 25 % Head space
-Interior shell thickness 3-6 mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
- Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads
3----Cooling System
Description: Air type chiller + Ice water tank or Glycol tank
Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank
Brand: Copeland, SANYO.
4----Control System
-PID or PLC system
-SIEMENS program S7-200, Siemens touch screen.
-Penumatic valves for optional
| 100L | 200L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | 10000L | 20000L |
| PID/PLC | PID/PLC | PID/PLC | PID/PLC | PID/PLC | PID/PLC | PID/PLC | PID/PLC | PID/PLC | PID/PLC |
5----Canning line, Kegging line
-Double station Kegging line.
-Small capacity Canning line.
