Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LP
-
Rated voltage:
-
300/500V
-
Name:
-
Red & Black Speaker Wire
-
Conductor size:
-
18awg
-
Color:
-
black-red
-
Temperature Range:
-
-20°C to +70°C
-
Max Working Voltage:
-
300/500V, 450/750V
-
No. of Cores:
-
2
-
Sample:
-
available
Quick Details
-
Application:
-
audio system,security application,or general purpose.
-
Conductor Material:
-
Copper Clad Aluminum
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LP
-
Rated voltage:
-
300/500V
-
Name:
-
Red & Black Speaker Wire
-
Conductor size:
-
18awg
-
Color:
-
black-red
-
Temperature Range:
-
-20°C to +70°C
-
Max Working Voltage:
-
300/500V, 450/750V
-
No. of Cores:
-
2
-
Sample:
-
available

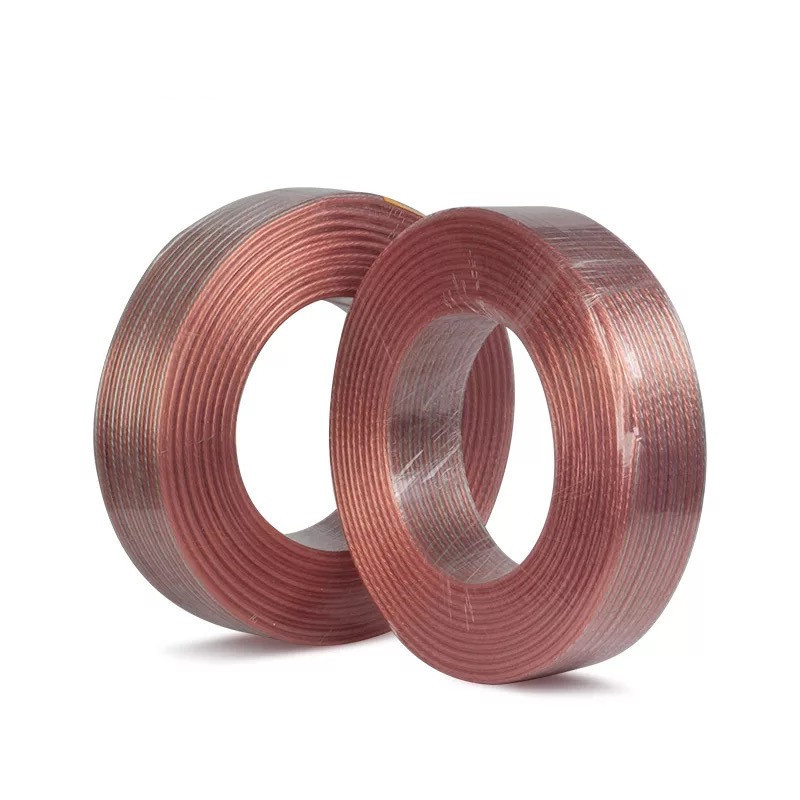

Product: Automotive Hook Up Wire Red & Black Speaker Wire 18 Gauge 100m
Features:
1.Multi-stranded/Flexible OFC, Copper, Tinned-copper wire conductor
2.Reliable Connection
3.High Quality New material of PVC Insulated
4.CE,RoHS SGS,ISO9001 Standard
5.Full 100M
6.Rated Voltage: 300/300V
7.Keep working under 70°C for long period operation
Specifications
|
Model( size) |
Specification Description |
Outer Dia. (mm) |
Jacket/sheath |
Color |
|
0.35mm2 |
2CX20/0.15mm |
O. D: 2.0X4.0 |
PVC |
Transparent/Red-black |
|
0.50mm2 |
2CX28/0.15mm |
O. D: 2.2X4.4 |
PVC |
Transparent/Red-black |
|
0.75mm2 |
2CX42/0.15mm |
O. D: 2.4X4.8 |
PVC |
Transparent/Red-black |
|
1.0mm2 |
2CX57/0.15mm |
O. D: 3.0X6.0 |
PVC |
Transparent/Red-black |
|
1.5mm2 |
2CX85/0.15mm |
O. D: 3.6X7.2 |
PVC |
Transparent/Red-black |
|
2.5mm2 |
2CX7X20/0.15mm |
O. D: 4.2X8.4 |
PVC |
Transparent/Red-black |
|
4.0mm2 |
2CX7X32/0.15mm |
O. D: 5.0X10.0 |
PVC |
Transparent/Red-black |
|
6.0mm2 |
2CX7X48/0.15mm |
O. D: 5.5X11.0 |
PVC |
Transparent/Red-black |
|
AWG( size) |
Specification Description |
Outer Dia. (mm) |
Jacket/sheath |
Color |
|
24AWG |
2CX18/0.12mm |
O. D: 1.8X3.6 |
PVC |
Transparent/Red-black |
|
22AWG |
2CX18/0.15mm |
O. D: 2.0X4.0 |
PVC |
Transparent/Red-black |
|
20AWG |
2CX29/0.15mm |
O. D: 2.2X4.4 |
PVC |
Transparent/Red-black |
|
18AWG |
2CX46/0.15mm |
O. D: 2.5X5.0 |
PVC |
Transparent/Red-black |
|
16AWG |
2CX74/0.15mm |
O. D: 3.0X6.0 |
PVC |
Transparent/Red-black |
|
14AWG |
2CX118/0.15mm |
O. D: 3.5X7.0 |
PVC |
Transparent/Red-black |
|
12AWG |
2CX187/0.15mm |
O. D: 4.5X9.0 |
PVC |
Transparent/Red-black |
|
10AWG |
2CX297/0.15mm |
O. D: 5.5X11.0 |
PVC |
Transparent/Red-black |
Applications:
speaker cables are used for speaker ranges, home theater or audio system ,Used for connecting power amplifier and broadcasting systems, For transmitting the audio signals amplified by the amplifier
1. Paking detail
1) Packing Lengths: 100m/roll,200m/roll, 300m/roll,500m/roll, 1000m/roll or other lengths available according to client's request.
2) Inner packing: Plastic film,Wooden reel, plastic reel, and paper reel are available.
3) Outer packing: Carton,Sack bag or as request
4) Other packing available according to client's request.
2. Shipping Details:
Lead tine: 15-25 working days or negociation
Transport Modes: Sea, Express(DHL,UPS,FEDEX, TNT) or request
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer, 12 years manufacturing experience.
3. OEM/ODM are available
1) Printing your logo on the cable.
2) Printing your logo on the box, making according to your design.
3) Any your idea on cable, packing box are available.
4. High quality, reasonable and competitive price, fast lead time.
5. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
6. Faster delivery:
Sample order if have in stock, and 3-7 days for bulk production.
7. Payment:
We can accept payment methods: L/C, T/T, Western Union. Others payment can negotiation.
