Quick Details
-
Model Number:
-
CAP-WS
-
Material:
-
SS304/SS316L optional
-
Product Name:
-
sanitary flat diaphragm pressure transmitters
-
Pressure Range:
-
-0.1MPa~0kPa~10KPa~100MPa
-
Medium:
-
Air, Gas, Steam, Water, Oil, liquid purity medium
-
Power Supply:
-
5VDC/9VDC~30VDC
-
Output:
-
4~20mA,0~5V/10V, 0.5~4.5V, RS485, I2C or customized
-
Accuracy:
-
0.5% F.S, 0.25%FS, 0.1%FS(Customized)
-
Pressure Type:
-
Gauge (G), absolute (A), sealed gauge (S)
-
Pressure Connector:
-
Tri Clamp or Customized
-
Operating Temp.:
-
-20-65℃ ( or customized)
-
Ingress Protection:
-
IP65
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CAP-WS
-
Material:
-
SS304/SS316L optional
-
Product Name:
-
sanitary flat diaphragm pressure transmitters
-
Pressure Range:
-
-0.1MPa~0kPa~10KPa~100MPa
-
Medium:
-
Air, Gas, Steam, Water, Oil, liquid purity medium
-
Power Supply:
-
5VDC/9VDC~30VDC
-
Output:
-
4~20mA,0~5V/10V, 0.5~4.5V, RS485, I2C or customized
-
Accuracy:
-
0.5% F.S, 0.25%FS, 0.1%FS(Customized)
-
Pressure Type:
-
Gauge (G), absolute (A), sealed gauge (S)
-
Pressure Connector:
-
Tri Clamp or Customized
-
Operating Temp.:
-
-20-65℃ ( or customized)
-
Ingress Protection:
-
IP65

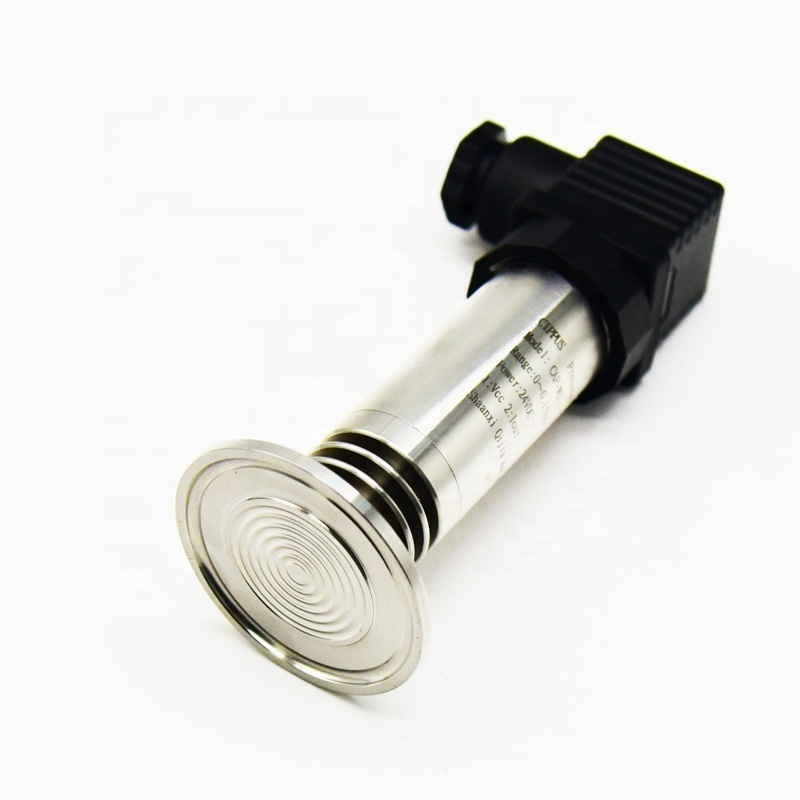

Sanitary Flat Diaphragm Pressure Transmitters
Technical Parameters
|
Pressure Range |
-0.1MPa~0kPa~10KPa~100MPa |
|
Medium |
Air, Gas, Steam, Water, Oil, liquid purity medium |
|
Power Supply |
5 VDC/9VDC ~30VDC |
|
Output |
4~20mA,0~5V/10V, 0.5~4.5V, RS485, I2C or customized |
|
Accuracy |
0.5% F.S 0.25% F.S 0.1% F.S (C ustomized) |
|
Pressure Type |
Gauge (G), absolute (A), sealed gauge (S) |
|
Material |
Shell: SS304/SS316L Sensor:SS316L/ Ceramic sensor |
|
Pressure Connector |
Tri clamp or Customized |
|
Electronic Connection |
Hirstman or Customized |
|
Ingress Protection |
IP65 |
|
Overload Capacity |
150%F.S |
|
Compensated Temperature |
-10-70℃ |
|
Operating Temperature |
-20-65℃ (higher temperature can be Customized ) |
|
Zero Temp. Drift |
±0.03%FS/℃ |
|
Sensitivity Temp. Drift |
±0.03%FS/℃ |
|
Long Term Stability |
≤0.2%FS/year |
|
Response Speed |
≤1ms(up to 90%FS) |
|
Recommendation |
Indoor use, rainproof, generally applicable to the equipment supporting pipeline pressure measurement. |
