Quick Details
-
Application:
-
Other
-
Design Style:
-
Modern
-
Type:
-
aerial construction equipment
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
POWERSTON
-
Model Number:
-
ZLP630 ZLP800
-
Product name:
-
Zlp Hoist Suspended Platform
-
Model:
-
ZLP630/ZLP800
-
Usage:
-
People's High Rise Building Maintaining Work
-
Rated Load(Kg):
-
630/800kg
-
Material:
-
Steel
-
Platform Length:
-
1-7.5m
-
Lift speed:
-
8.3m/min
-
Rate Power:
-
1.5/1.8 /2.2KW
-
Power Supply:
-
220V/ 380 V-480V / 50-60 Hz
-
Safety lock:
-
LST30
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Other
-
Design Style:
-
Modern
-
Type:
-
aerial construction equipment
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
POWERSTON
-
Model Number:
-
ZLP630 ZLP800
-
Product name:
-
Zlp Hoist Suspended Platform
-
Model:
-
ZLP630/ZLP800
-
Usage:
-
People's High Rise Building Maintaining Work
-
Rated Load(Kg):
-
630/800kg
-
Material:
-
Steel
-
Platform Length:
-
1-7.5m
-
Lift speed:
-
8.3m/min
-
Rate Power:
-
1.5/1.8 /2.2KW
-
Power Supply:
-
220V/ 380 V-480V / 50-60 Hz
-
Safety lock:
-
LST30
Products Description

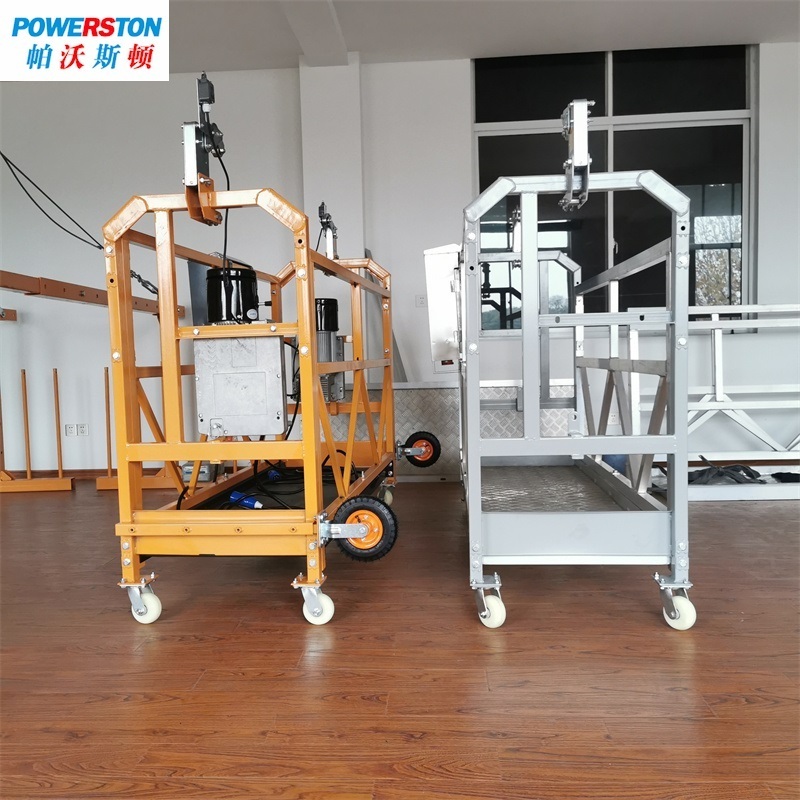

Compared with traditional scaffolding, suspended platform is scientific in design, rational in structure. It is convenient to operate, safe and reliable, and high efficiency. It is widely used for exterior construction of high-rise building, bridge
construction, chimney construction, window cleaning, inspection and maintenance, curtain wall installation and facade decoration and so on.
Suspended platform is mainly composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts.
Rated load of the platform is 500 kg to 1000 kg, the working height and voltage can be adjusted to your need, Lifting speed is can be 8.3 m/min to 9.6 m/min. The suspension mechanism system can be adjusted to complicated buildings in different height.
Three kinds of materials optional: steel painted, steel galvanized, and aluminum alloy. The standard dimension of platform is 2 m*3 sections or 2.5 m* 3 sections in length, 0.69 m in width, and 1.3 m in height, also size can be customized according to your need.
construction, chimney construction, window cleaning, inspection and maintenance, curtain wall installation and facade decoration and so on.
Suspended platform is mainly composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts.
Rated load of the platform is 500 kg to 1000 kg, the working height and voltage can be adjusted to your need, Lifting speed is can be 8.3 m/min to 9.6 m/min. The suspension mechanism system can be adjusted to complicated buildings in different height.
Three kinds of materials optional: steel painted, steel galvanized, and aluminum alloy. The standard dimension of platform is 2 m*3 sections or 2.5 m* 3 sections in length, 0.69 m in width, and 1.3 m in height, also size can be customized according to your need.
specification
Details Images
Hoist Motor
Safety Lock
Electric Control Panel
Power Cable
Steel Wire Rope
Sockets
Product Paramenters
|
Model
|
ZLP500
|
ZLP630
|
ZLP800
|
ZLP1000
|
|||
|
Rated load
|
500kg
|
630kg
|
800kg
|
1000kg
|
|||
|
Lifting speed
|
8.3m/min
|
|
|
|
|||
|
Platform length
|
2.5m*2
|
2m*3
|
2.5m*3
|
2.5m*3
|
|||
|
Motor power
|
2*1.5kw
|
2*1.5kw
|
2*1.8kw
|
2*2.2kw
|
|||
|
Lifting height
|
100m/150m
|
|
|
|
|||
|
Counter weight optional
|
25kg*30pcs
|
25kg*36pcs
|
25kg*40pcs
|
25kg*44pcs
|
|||
|
Hoist motor
|
LTD6.3
|
LTD6.3
|
LTD8.0
|
LTD10.0
|
|||
|
Safety lock
|
LST30
|
LST30
|
LST30
|
LST30
|
|||
