Quick Details
-
Brand Name:
-
Taidacent
Quick Details
-
Type:
-
other
-
Display Size:
-
0.56inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent

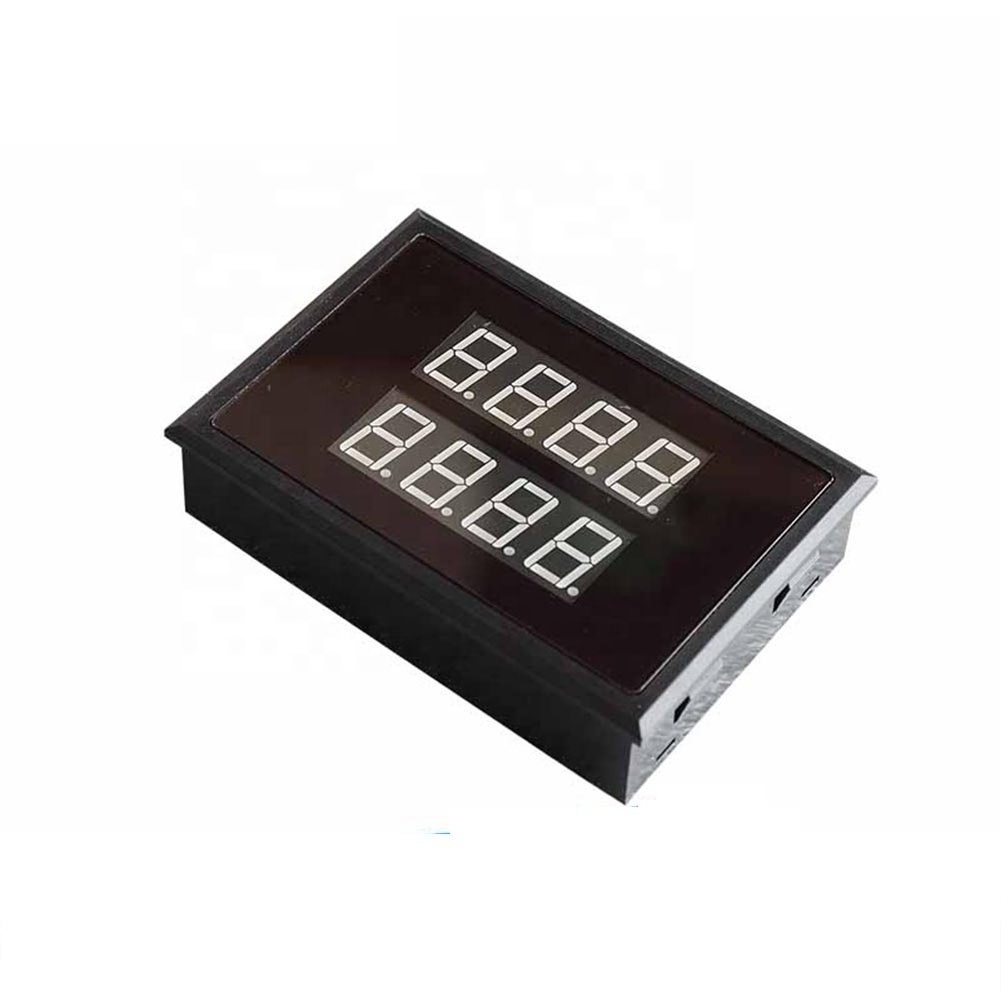

Taidacent Modbus 7 Segment Display 0.56 Inch Display Digital LED 7 Segment Display with RS485 Communication PLC Communication
Product Description
Industrial computer, single chip microcomputer, PLC, touch screen, HMI, etc.) can send instructions to control the display content of the display through the RS485 bus. Support the commonly used ASCII protocol and MODBUS RTU protocol. This product is mainly used in production lines, industrial control equipment, automotive instrumentation and other fields. The chips are all original brand new genuine products, with an industrial temperature range. Support a variety of pen end combination display, such as minus sign, decimal point, ABCDEFPL and other ASCII characters. It is the most comprehensive digital tube display on the market that supports the normal recognition and display of ASCII characters.
Feature
*RS485 communication, support Modbus RTU protocol, automatic protocol identification *Support stroke brightness adjustment function, with seven levels of brightness
*Can display various ASCLL characters such as integers, negative numbers, decimal points, ABCDEF PL, etc.
*Support electronic label function, the initial display content can be set after power-on, which is widely used for storage location number label. For example, "A001", "B002" and so on are displayed. Support counting display function
*Support to modify the baud rate (1200-115200), covering several commonly used baud rates, a bus can be connected to 128 digital tubes, etc.
Specification
|
item
|
value
|
|
Product name
|
0.56 inch 2 row 4 digit / 5 digit / 6 digit
|
|
Product color
|
Red
|
|
Supply current
|
DC 7-36v, recommended 12v or 24v power supply; current 50ma@24v,
|
|
Serial port parameters
|
Start bit: 1, stop bit: 1, data bit: 8, parity bit: no parity
|
|
Protocol
|
modbus/ascii protocol
|
|
Input interface
|
RS485/counter/analog (counter and analog need to be customized)
|
|
Hole Size
|
92*64 (MM)
|
|
Product Size
|
97*66*22 (mm)
|
|
Baud rate
|
1200,2400,4800,9600,19200,38400,57600.115200
|
|
Interface parameters
|
Terminal model: KF2EDG3.81-10P (the whole is pluggable), VCC: Positive power supply, GND: negative pole of power supply, 485A: rs485 bus A (485 bus and GND terminal are common ground), 485B: rs485 bus B, 232-RX: rs232 bus RX, COM: (input common pin) , INC: (plus 1), DEC: (minus 1), CLR: (cleared), SET: reserve function
|
